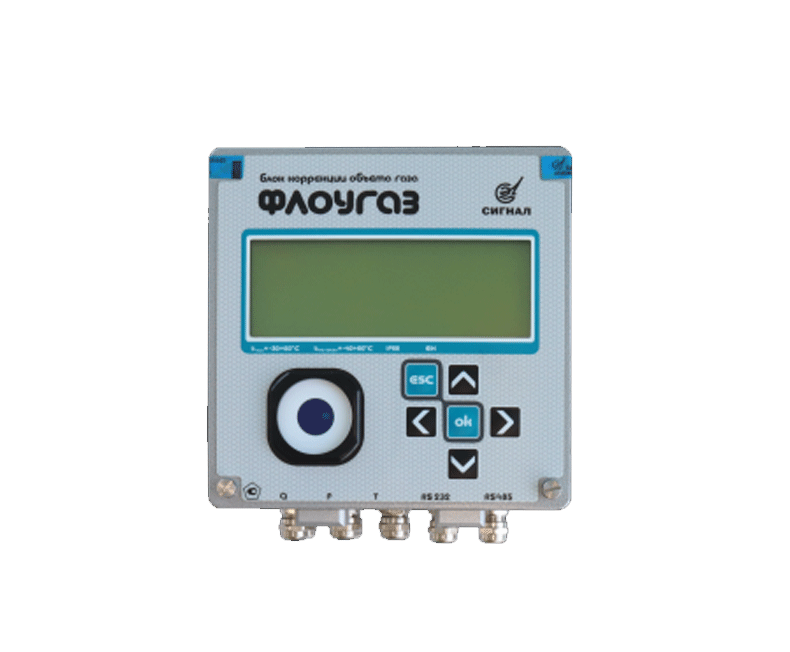

Flowgas
Single-beam ultrasonic gas flowmeters
Ultrasonic single-beam systems G6 to G25 systems for low pressure up to 0.005 MPa.
Main parameters
Characteristics & Accuracy
- Methods for calculating compressibility factor: GOST 30319.2-2015, GOST 30319.3-2015, AGA8 (ISO 20765-1:2005)
- Pressure measurement channel relative error: ±0.4%
- Temperature measurement channel relative error: ±0.1%
- Differential pressure measurement channel: ±0.25%
- Correction coefficient error: ±0.5%
- Gas volume calculation error: ±0.05%
- Operation at pressures up to 10 MPa
- Operation temperature range: -40°C to +60°C
- Dust and moisture protection: IP66
- Explosion protection: 1Ex ib IIC T4 X
Why choose this product
Key Advantages
- Compatibility with all meter types with LF/HF pulse output
- Calibration of pressure measurement channel in 1:11 range
- Increased archive depth up to 40,000 records
- Autonomous power supply 7.4 V
- Inter-verification interval of 6 years
Connectivity & Integration
- Parallel operation of optical, RS-485 and RS-232 interfaces
- Possibility of retrofitting a 3G/GPRS modem
- Compatibility with various telemetry systems
- User-friendly software interface
Datasheet Download
Download the product datasheet for technical specifications.
Flowgas Datasheet
Download the datasheet for this product.
