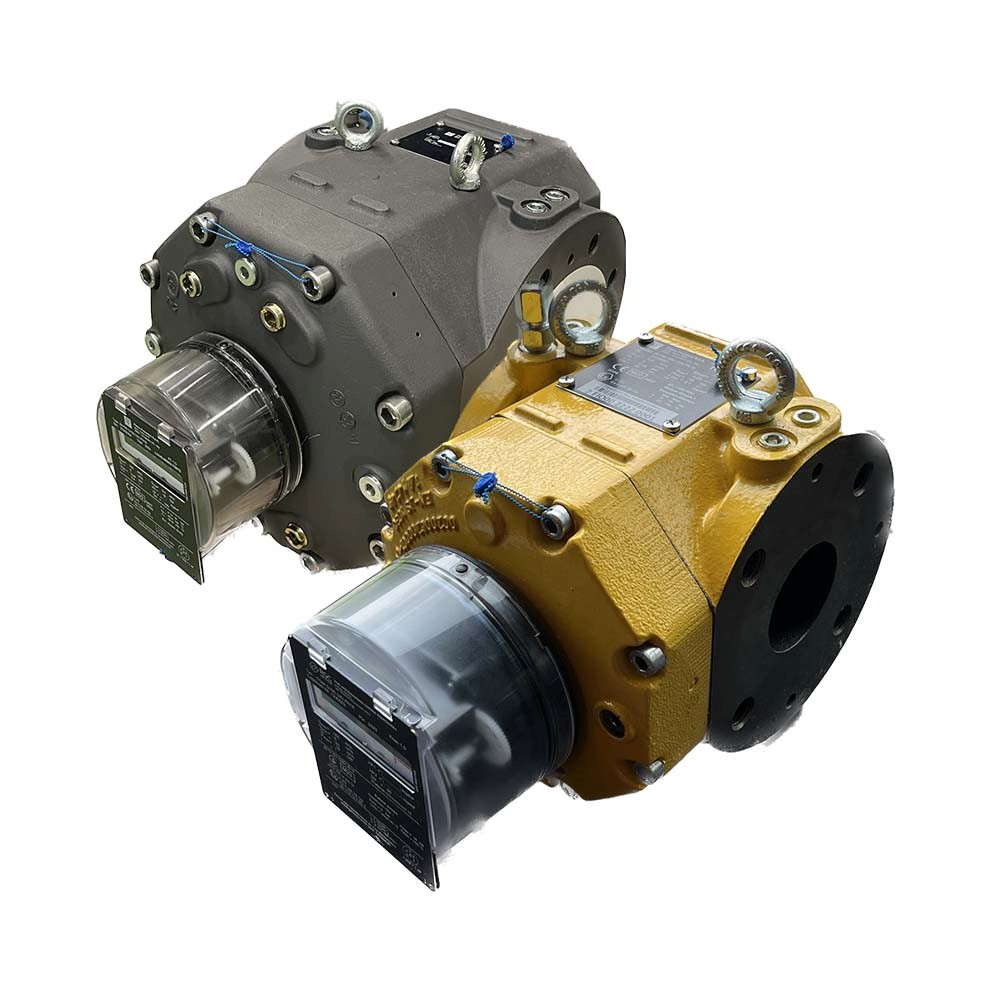

IM-RM Series
Rotary Displacement Gas Meters
Approved for use in fiscal measurement, the Rotary Gas Meter by Pietro Fiorentini is characterized by constant and repeatable accuracy. It is mainly used in high-pressure transmission systems and in medium and low pressure natural gas distribution networks.
IM-RM
Description
Approved for use in fiscal measurement, IM-RM is the Rotary Gas Meter by Pietro Fiorentini characterized by constant and repeatable accuracy. It is mainly used in high-pressure transmission systems and in medium and low pressure natural gas distribution networks.
It can be used with non-corrosive, filtered and dry gases, including specialty gases.
IM-RM is Hydrogen Ready for NG-H2 blending.
Click here to see the product page in the 100% hydrogen version.
Features
- Body: hard anodized aluminum alloy or spheroidal graphite cast iron
- Connections: ANSI 150 according to ASME B16.5 or PN 16/25 according to EN 1092-1
- Working temperature: from -25 °C to +55 °C
- Nominal diameters: from DN 40 to DN 150 (from 1 1/2” to 6”)
- Minimum flow rate: 0.5 m3/h
- Maximum flow rate: 1000 m3/h
Datasheet Download
Download the product datasheet for technical specifications.
IM-RM Series Datasheet
Download the datasheet for this product.
IM-RM Series Flyer
Download the flyer for this product.
IM-RM Series Instruction Manual
Download the instruction manual for this product.
IM-RM Series Technical Brochure
Download the technical brochure for this product.
IM-RM Series H2 Compatibility Declaration
Download the h2 compatibility declaration for this product.
