Wafer Type Turbine Flowmeters – W Series
Highly Precise and Reliable
The process fluid enters the wafer body and flows through a precision-machined turbine rotor. The kinetic energy of the fluid causes the turbine to rotate. The rotational speed of the turbine is directly proportional to the volumetric flow rate. A magnetic pickup / Hall-effect sensor detects the turbine blades passing through the magnetic field. Each blade passage generates a pulse signal. The electronics convert the pulses into Instantaneous flow rate and Totalized flow.
Wafer Series
Principle of Operation: The process fluid enters the wafer body and flows through a precision-machined turbine rotor. The kinetic energy of the fluid causes the turbine to rotate. The rotational speed of the turbine is directly proportional to the volumetric flow rate. A magnetic pickup / Hall-effect sensor detects the turbine blades passing through the magnetic field. Each blade passage generates a pulse signal. The electronics convert the pulses into instantaneous flow rate and totalized flow.
CHARACTERISTICS
- Measuring range: 0.2 to 550 M3/Hr
- Media temperature: -40 … 150 °C
- Maximum pressure: …250 bar
Key Features
- Compact wafer construction for limited installation space
- High accuracy (±0.5% to ±1% of reading)
- Excellent repeatability (±0.05%)
- Low pressure drops
- Wide flow range 10:1, 20:1
- Robust SS 316
- High pressure and temperature capability
- Local flow indicator / transmitter options
- Pulse, 4–20 mA, RS 485 digital output
- Easy integration with PLC, DCS & SCADA

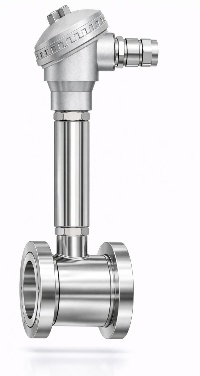

Wafer with Pulse Output
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

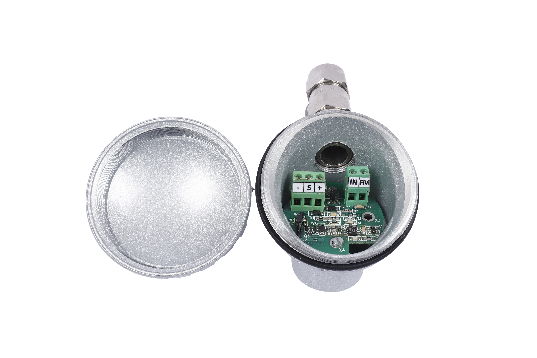

Pulse Transmitter
- Model – SPA – 10, SPA 100, SPA-1000
- SPA-10 – 2 Wire, 3 Wire PNP Pulse
- SPA-100 – Duel PNP Pulse
- SPA – 1000 - Duel PNP Pulse
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

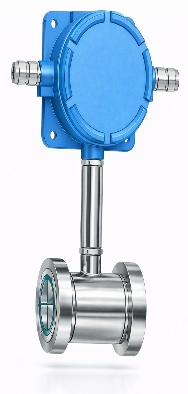

Wafer with Analogue Output
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

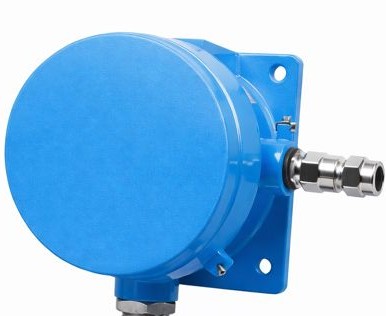

FI Current Transmitter
- Model – FI-8100, FI-8200
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

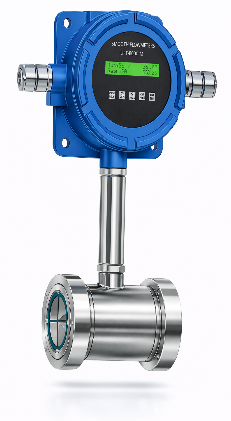

Wafer with Meter Mounted Battery-Operated Flow Indicator
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar
Meter Mounted Display Unit

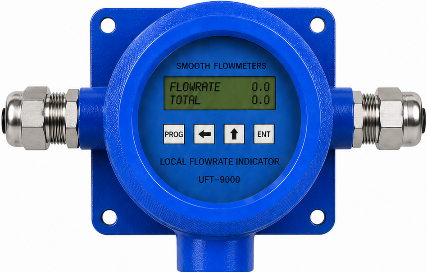

- Model – UFT 9000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC & Battery Operated

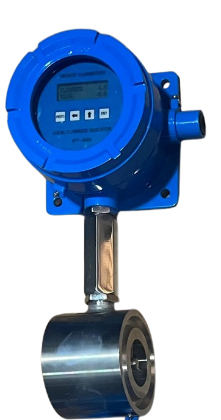

Wafer with Meter Mounted Flow Indicator 24VDC Operated
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar
Meter Mounted Display Unit

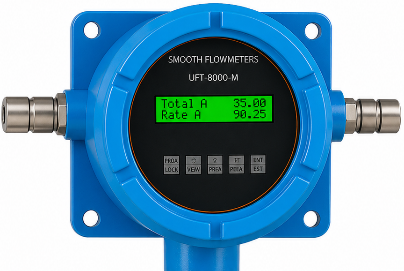

- Model – UFT 8000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC
Wafer with Panel / Wall Mounted Flow Indicator 230VAC Operated
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

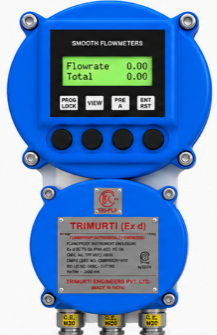

Panel / Wall Mounted Display Unit

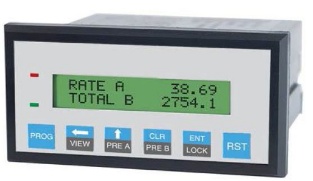

- Model – FRT 7000 / UFT 8000-P
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 232
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 230 VAC or 24 VDC
