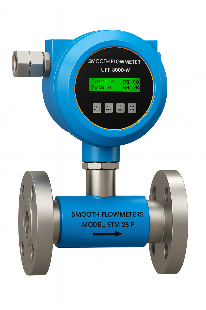

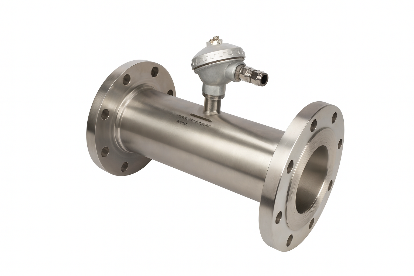

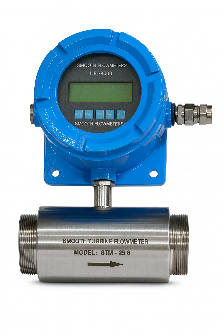

STM Series
Inline Turbine Flowmeters
Turbine flowmeters for demanding liquid measurement applications in modern fluid technology.
STM Series
CHARACTERISTICS
- Measuring range: 0.2 to 1100 M³/Hr
- Media temperature: -40 … 400 °C
- Maximum pressure: … 350 bar
KEY ADVANTAGES
- High accuracy (typically ±0.5% of reading or better)
- Excellent repeatability (±0.05% or better)
- Fast response time
- Compact inline installation
- Suitable for custody transfer & batching (with proper calibration)
SELECTION TIPS
When choosing an inline turbine flowmeter, consider the following process data:
- Fluid type & viscosity
- Flow range (min/max)
- Operating pressure & temperature
- Required accuracy
- Output signal / integration needs

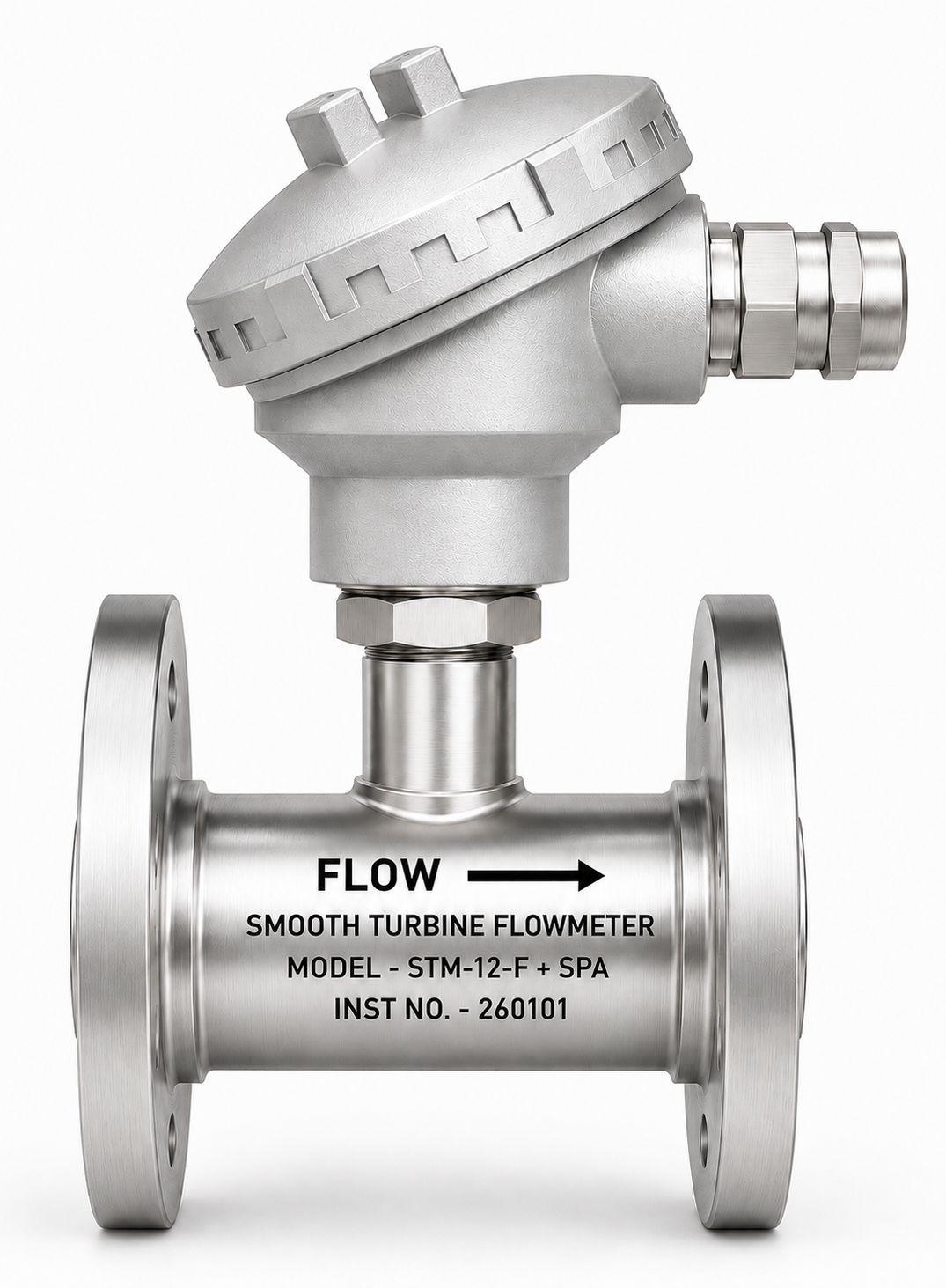

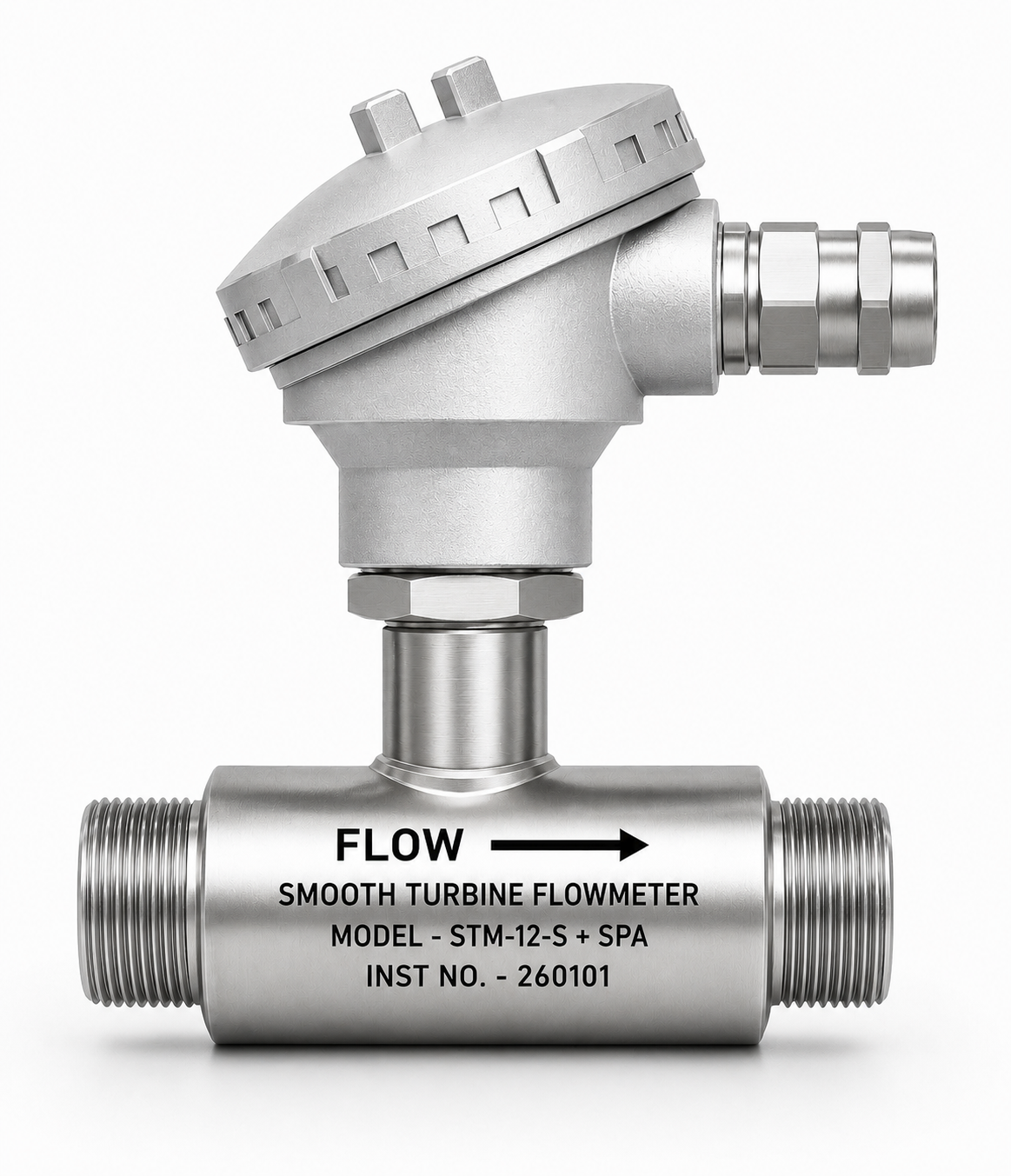

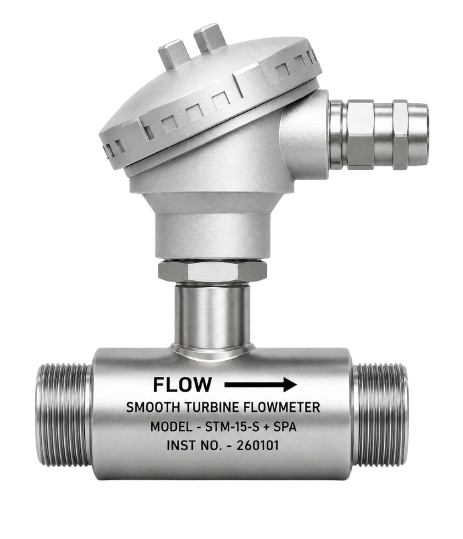

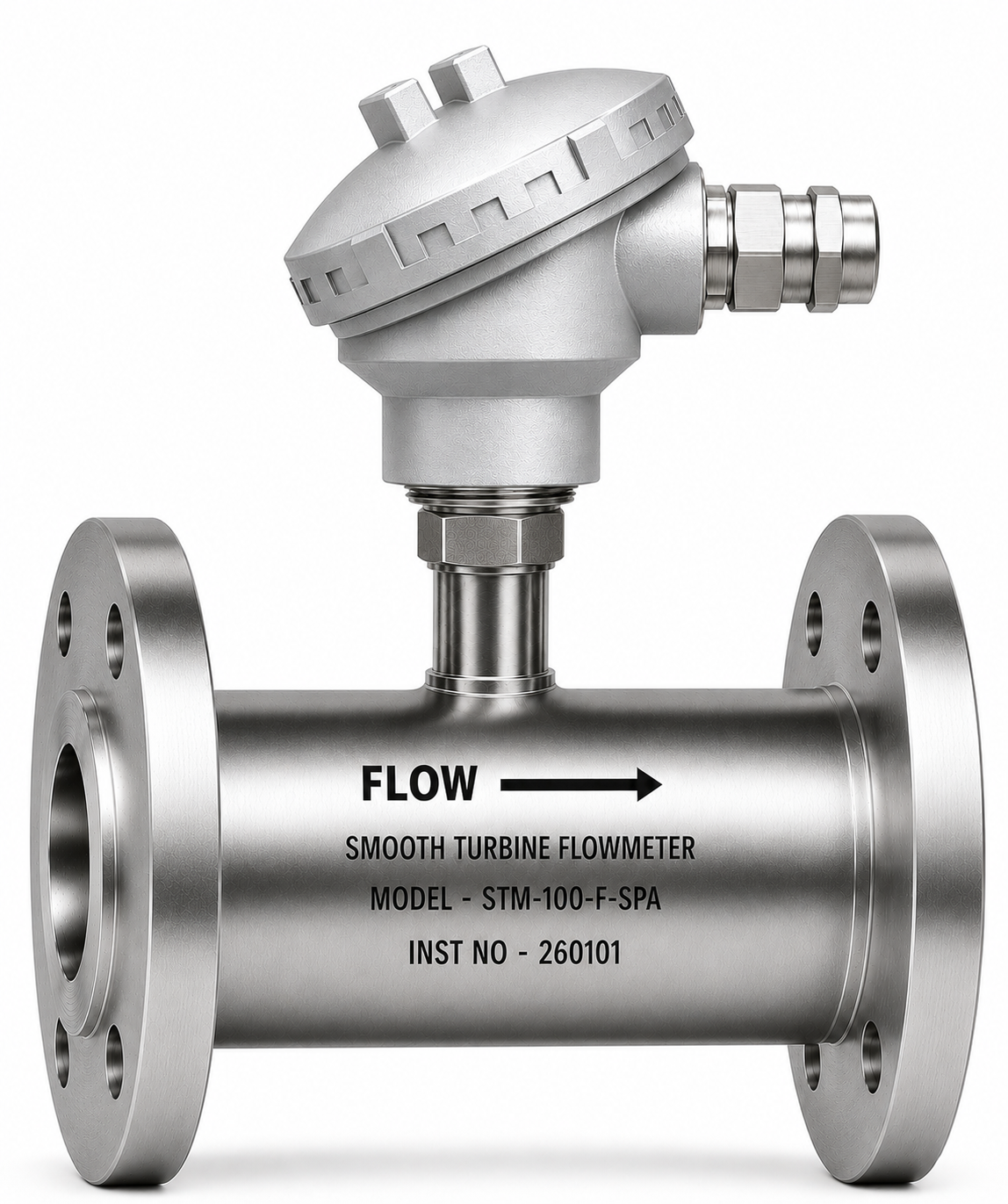

STM with Pulse Output
Integrated frequency signal output designed for rapid-response flow monitoring and seamless digital system control.
Characteristics
- Measuring range Screw Type: 0.2 to 70 M³/Hr
- Measuring range Flange Type: 0.2 to 1100 M³/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

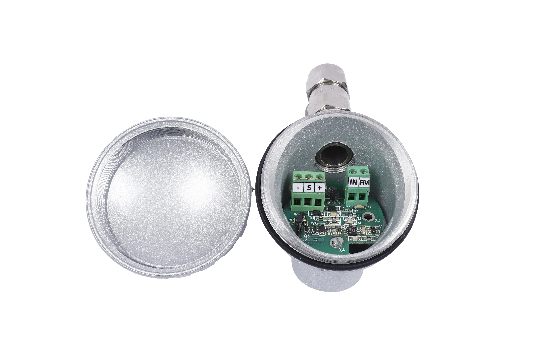

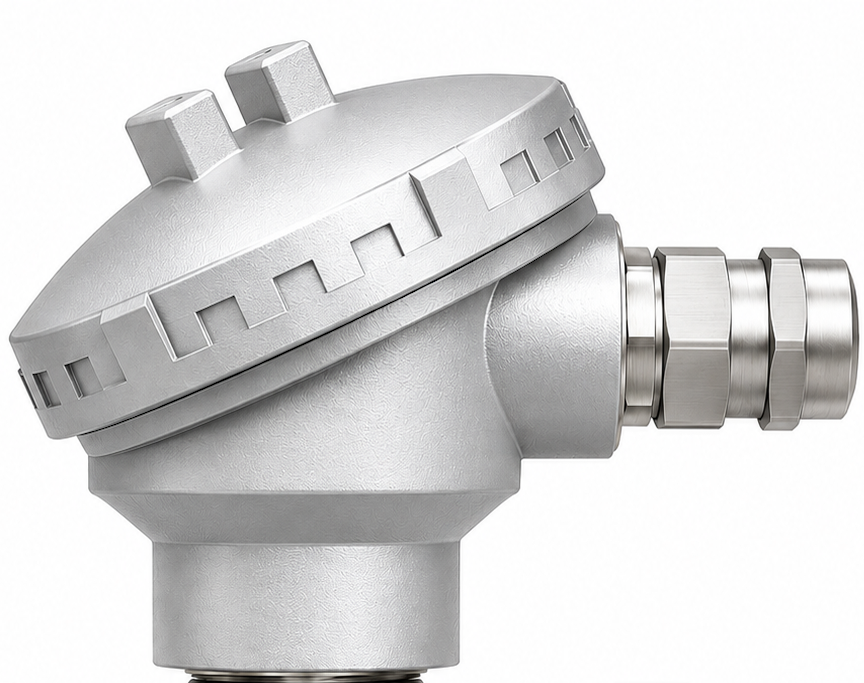

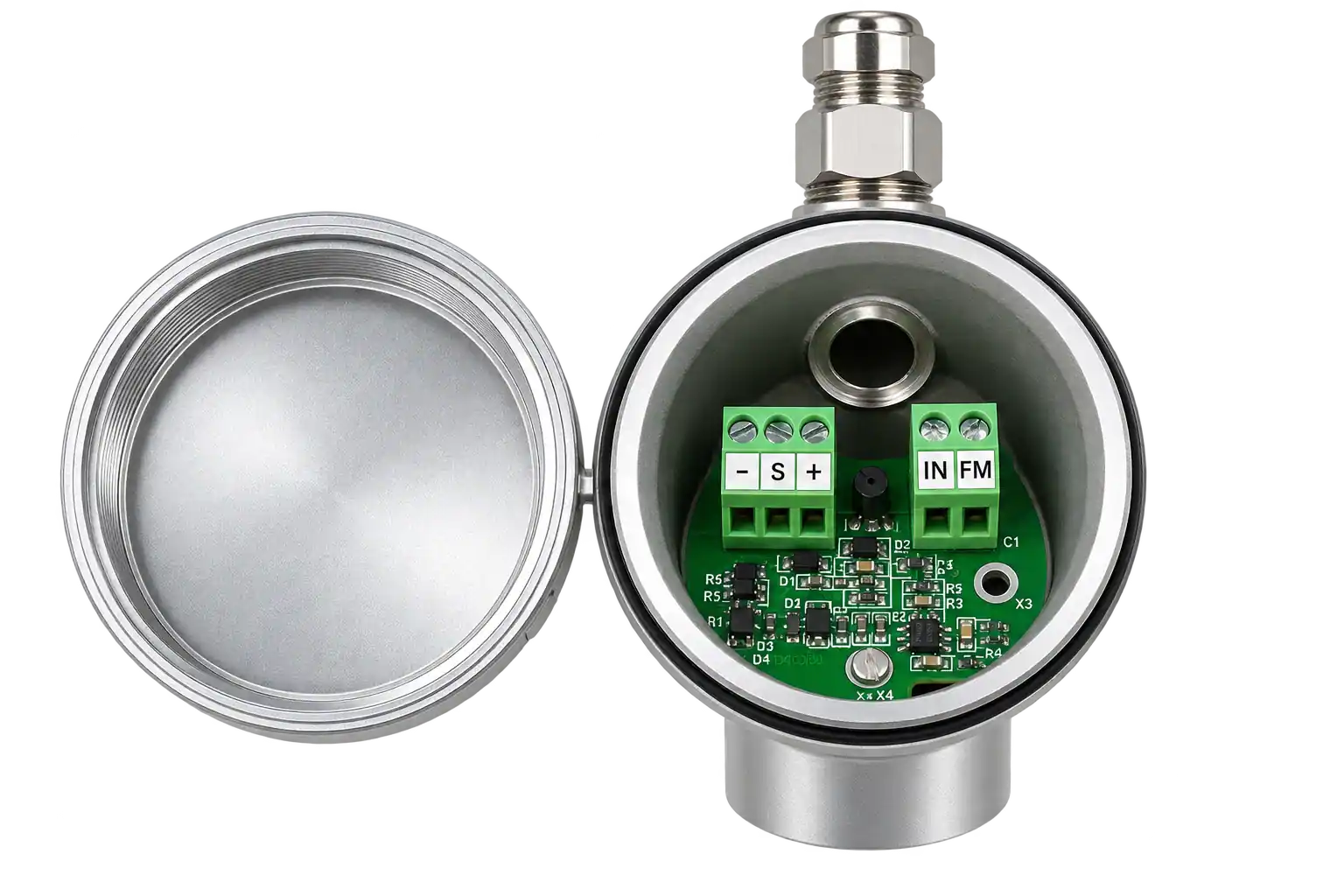

Pulse Transmitter
- Model – SPA – 10, SPA 100, SPA-1000
- SPA-10 – 2 Wire, 3 Wire PNP Pulse
- SPA-100 – Duel PNP Pulse
- SPA – 1000 - Duel PNP Pulse
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

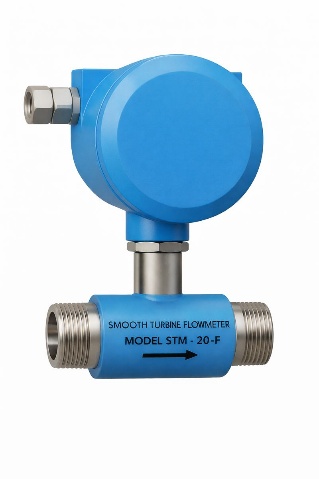

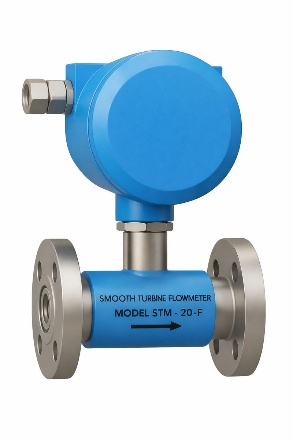

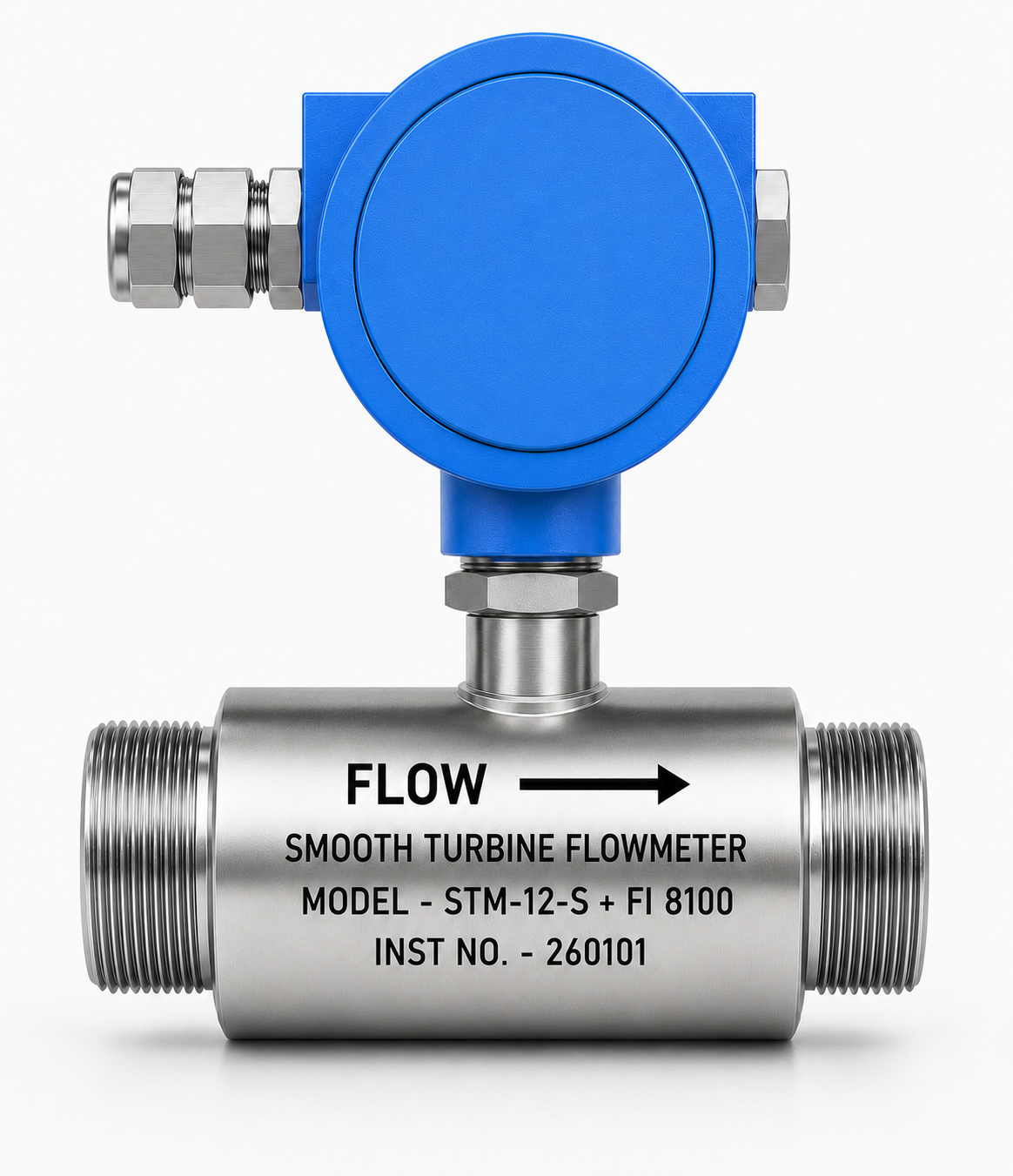

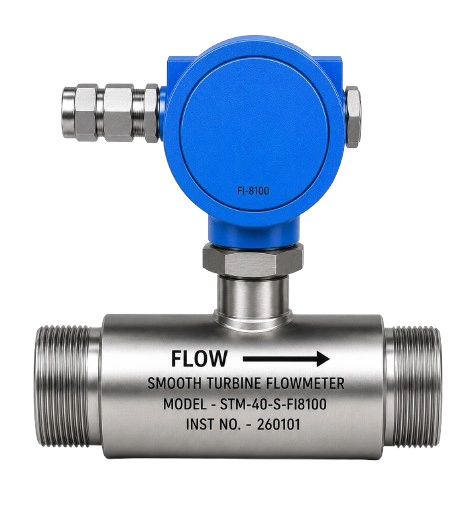

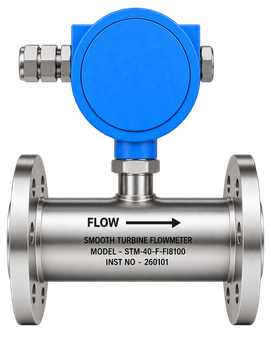

STM with Analogue Output
Integrated signal conversion converting high-frequency turbine pulses into industry-standard analog loops.
Characteristics
- Measuring range Screw Type: 0.2 to 70 M³/Hr
- Measuring range Flange Type: 0.2 to 1100 M³/Hr
- Media temperature: -30 … 60 °C
- Maximum pressure: … 300 bar

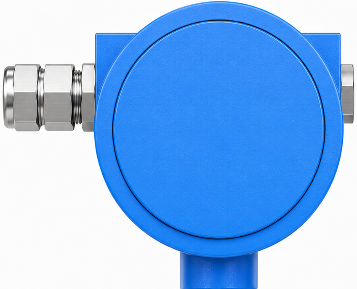

FI Current Transmitter
- Model – FI-8100, FI-8200
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

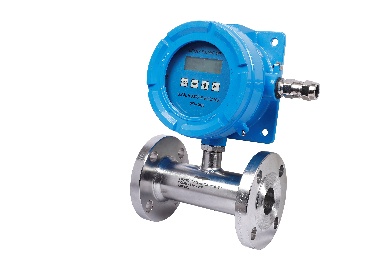

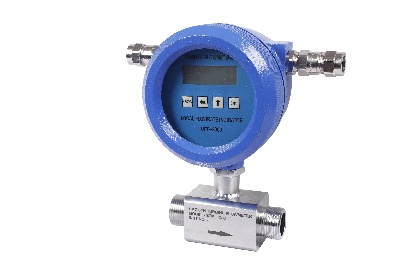

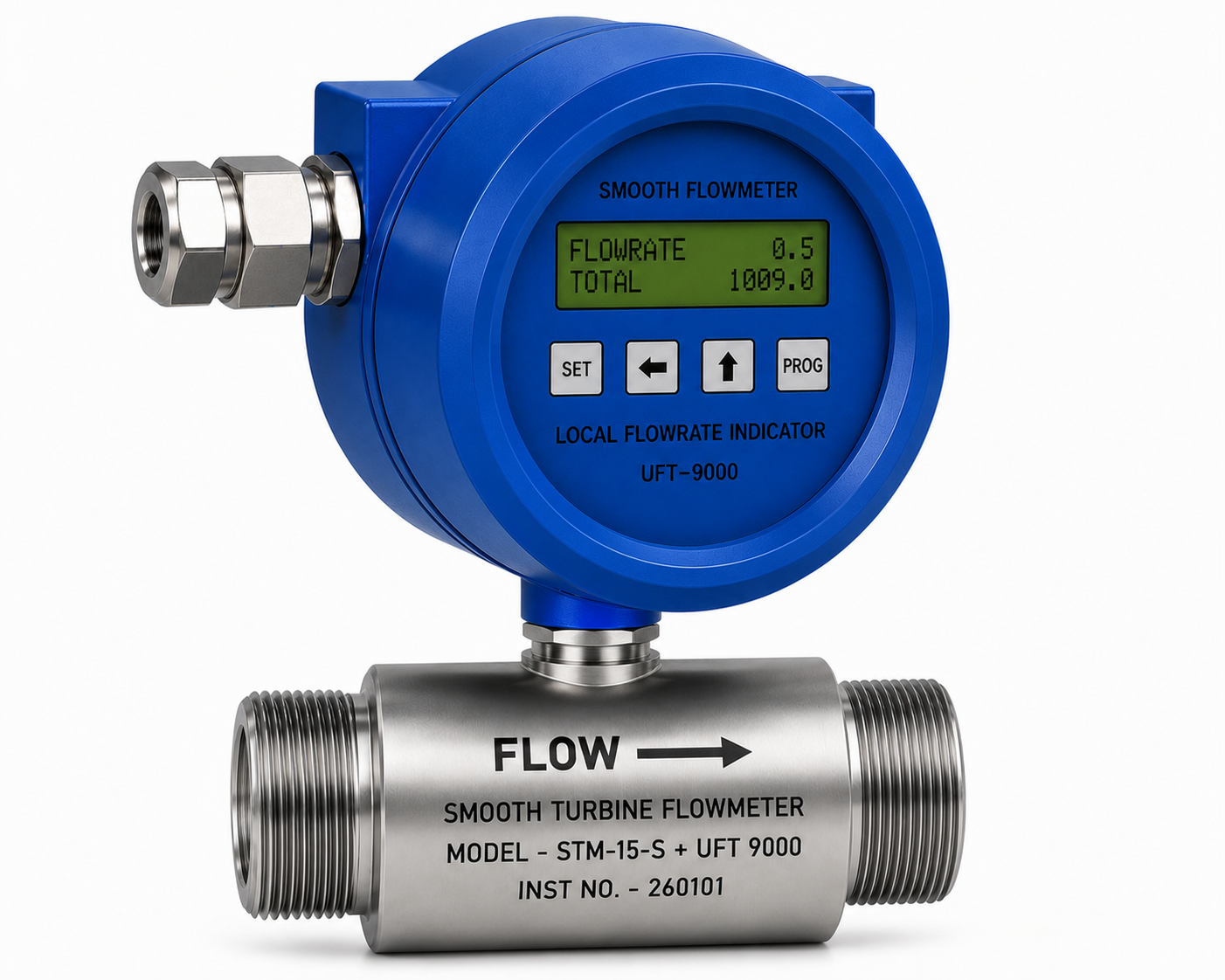

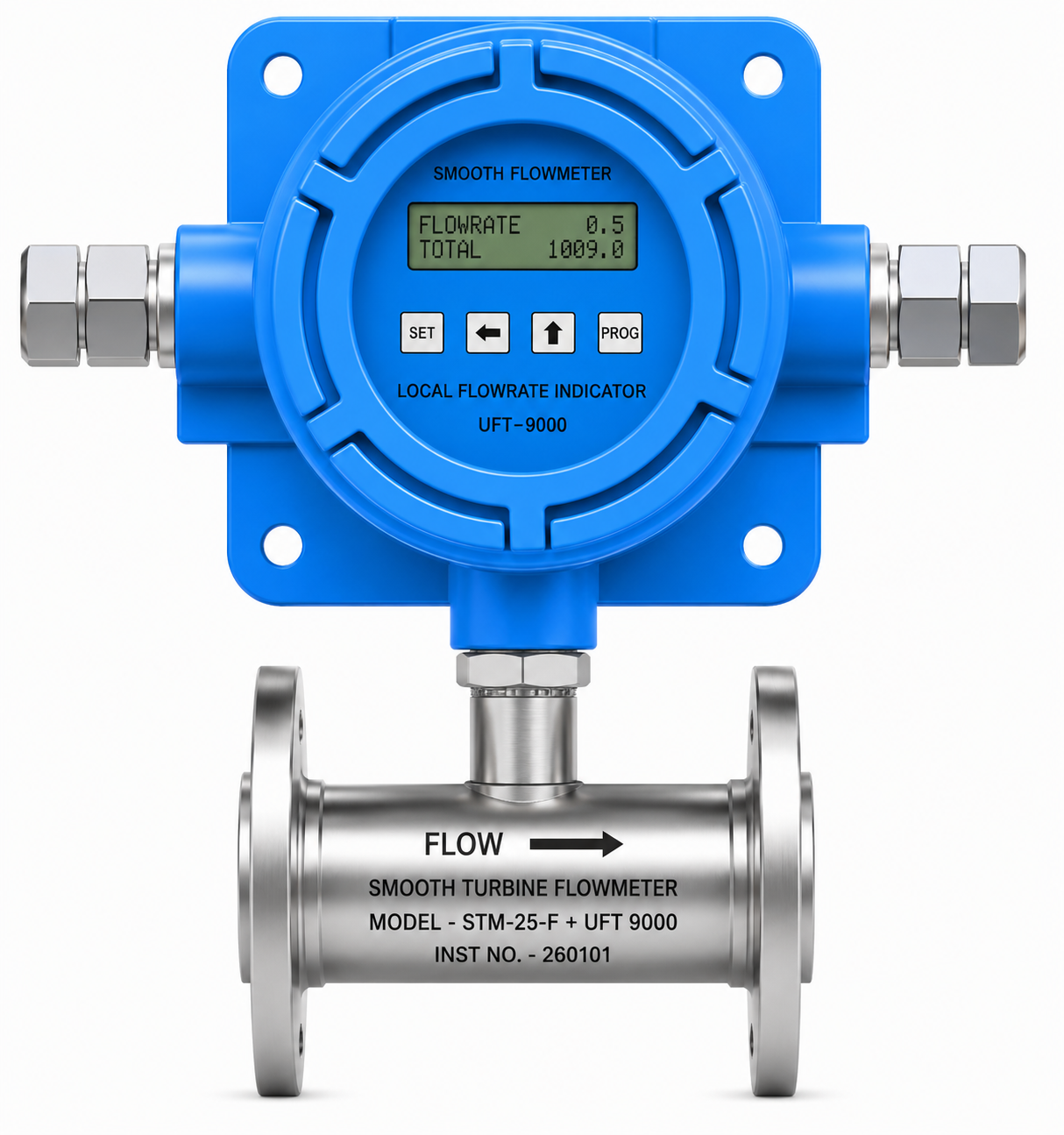

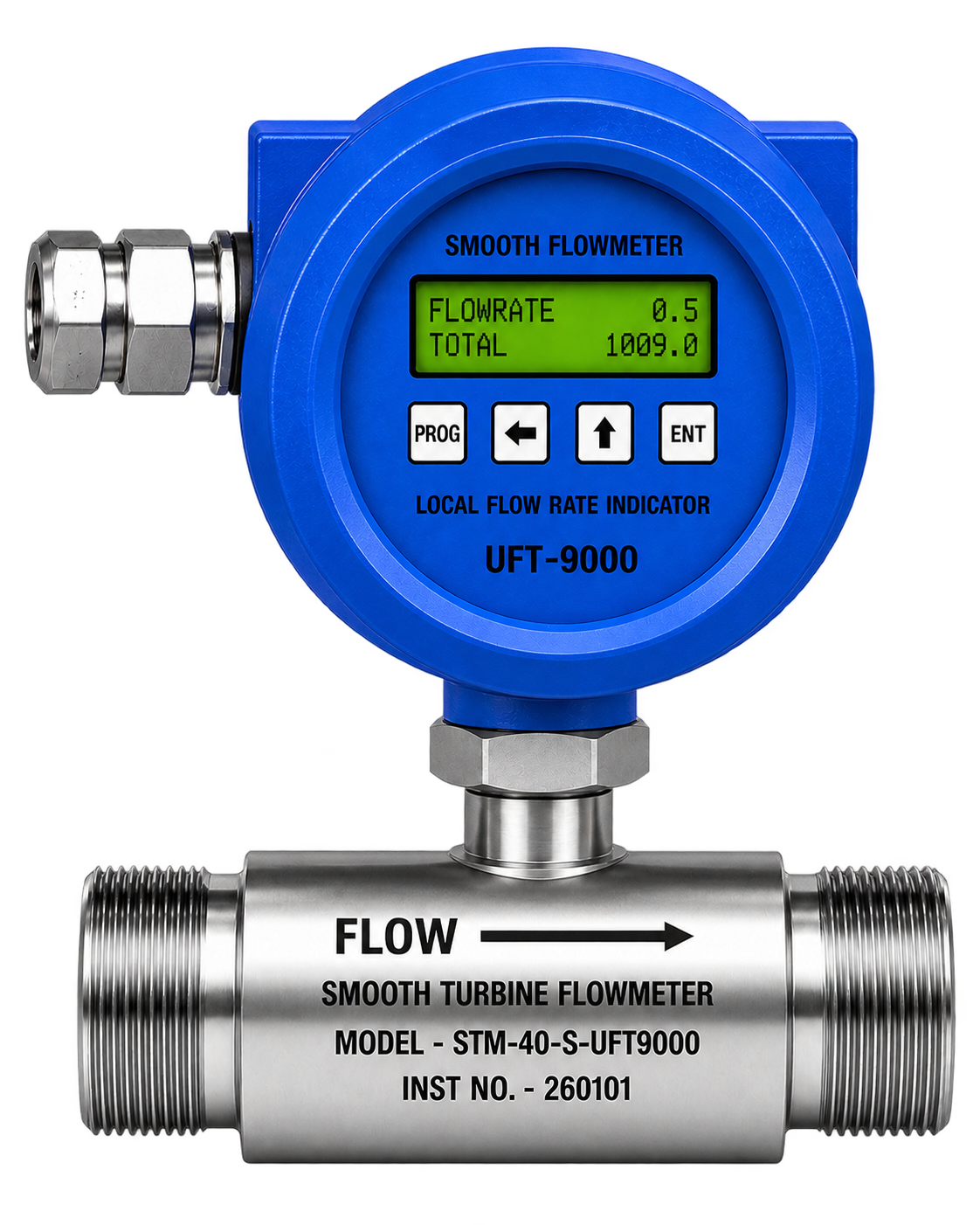

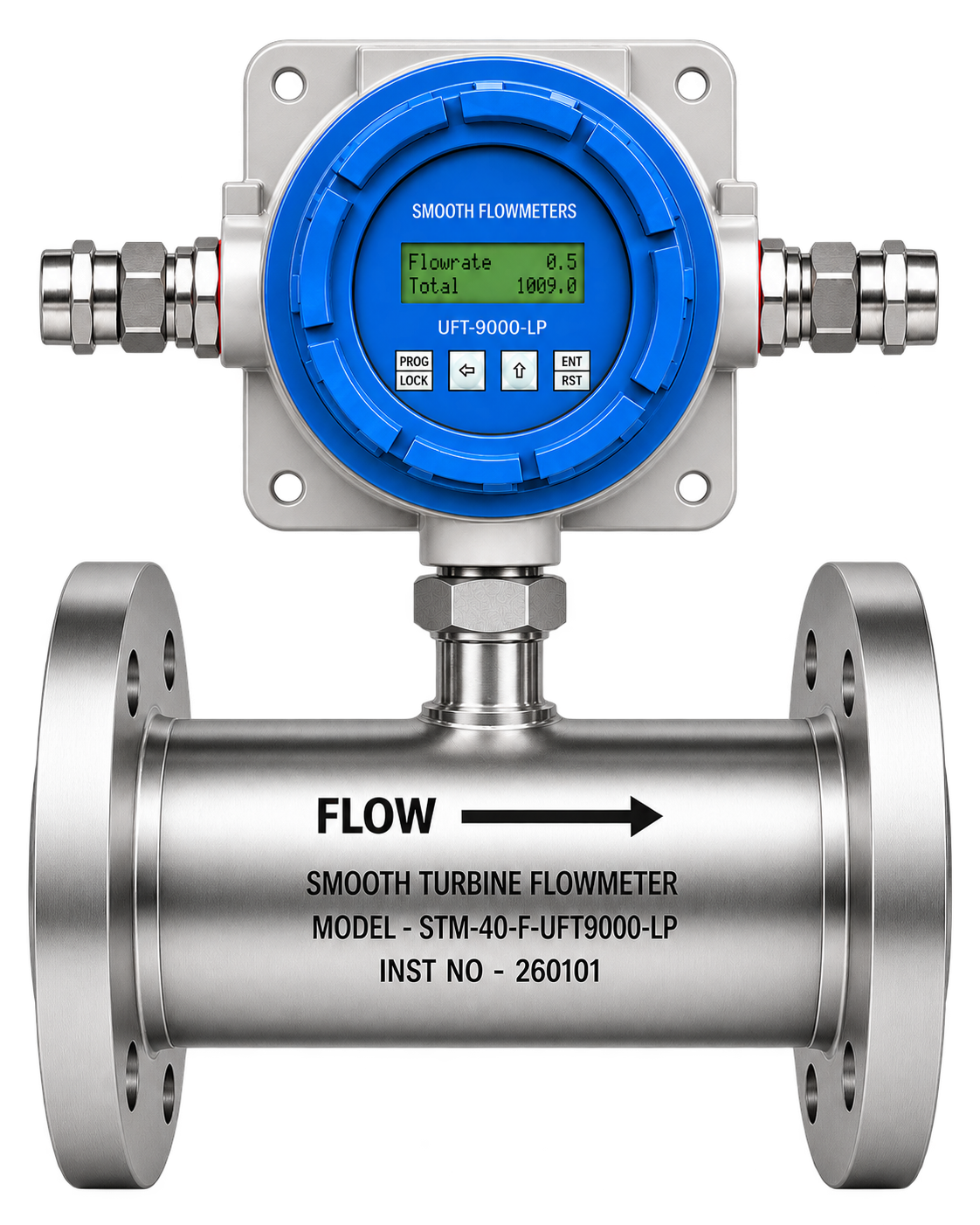

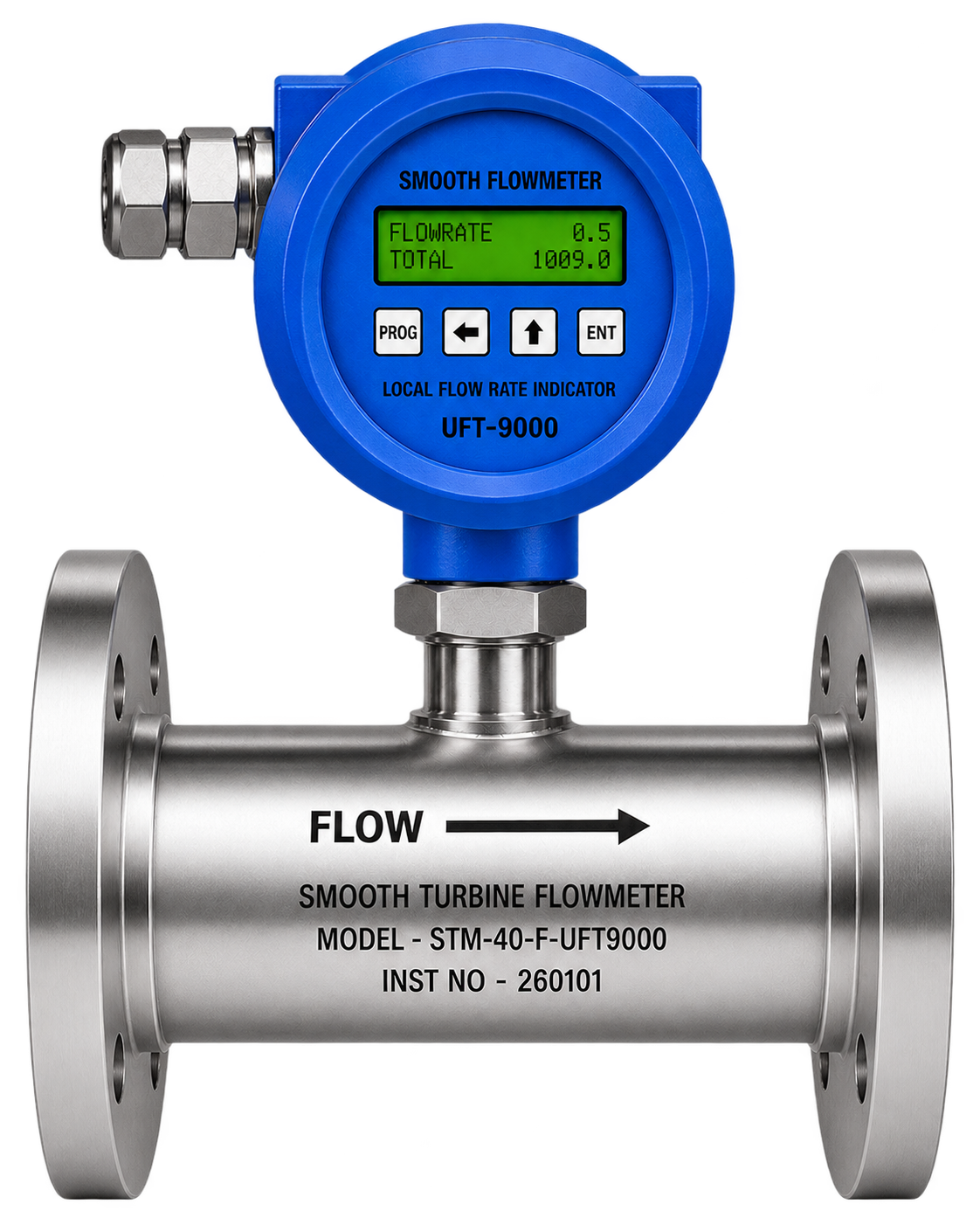

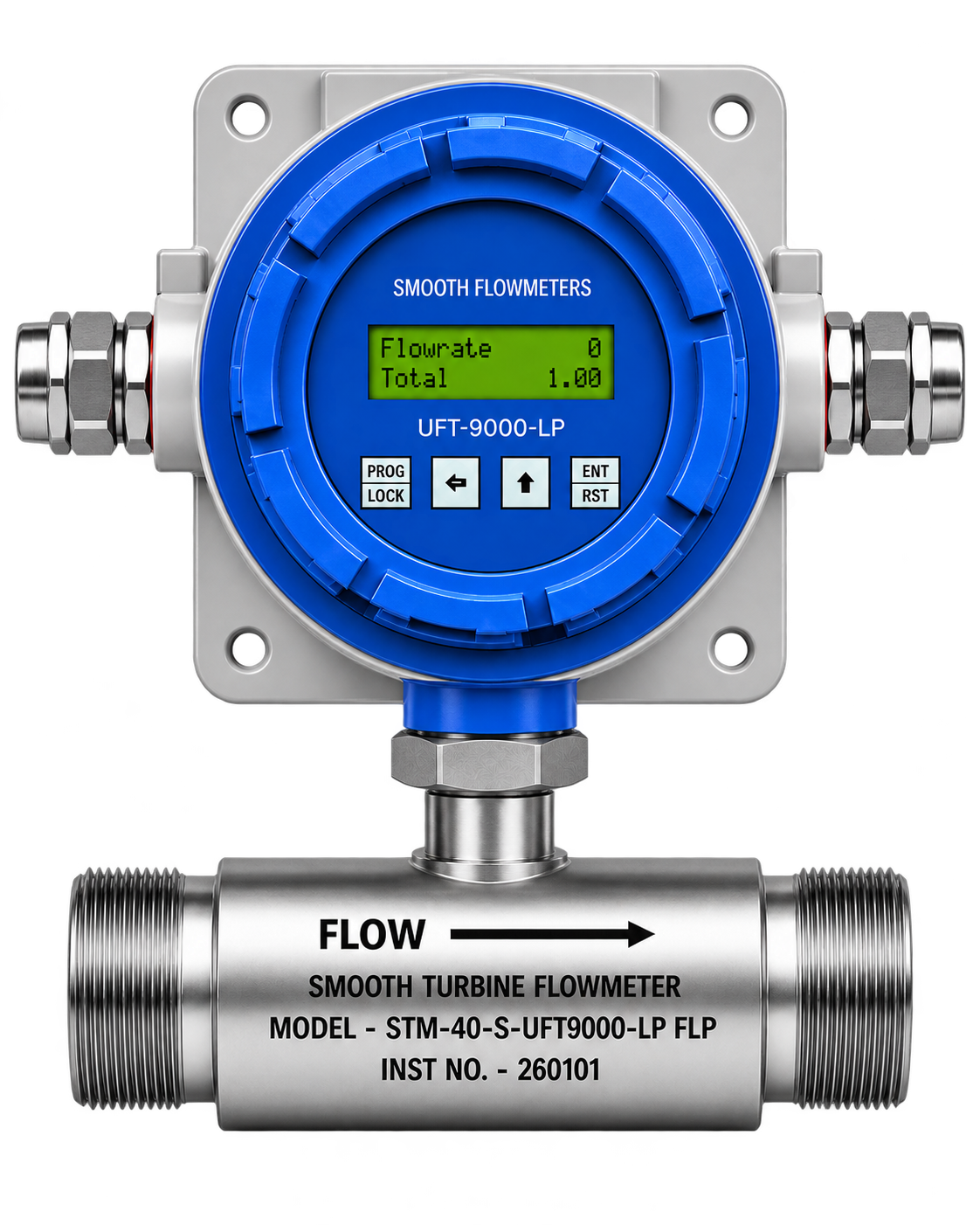

STM with Meter Mounted Battery-Operated Flow Indicator
Self-powered local display and indicator for dynamic flow reading in remote and off-grid locations.
Characteristics
- Measuring range Screw Type: 0.2 to 70 M³/Hr
- Measuring range Flange Type: 0.2 to 1100 M³/Hr
- Media temperature: -30 … 60 °C
- Maximum pressure: … 300 bar

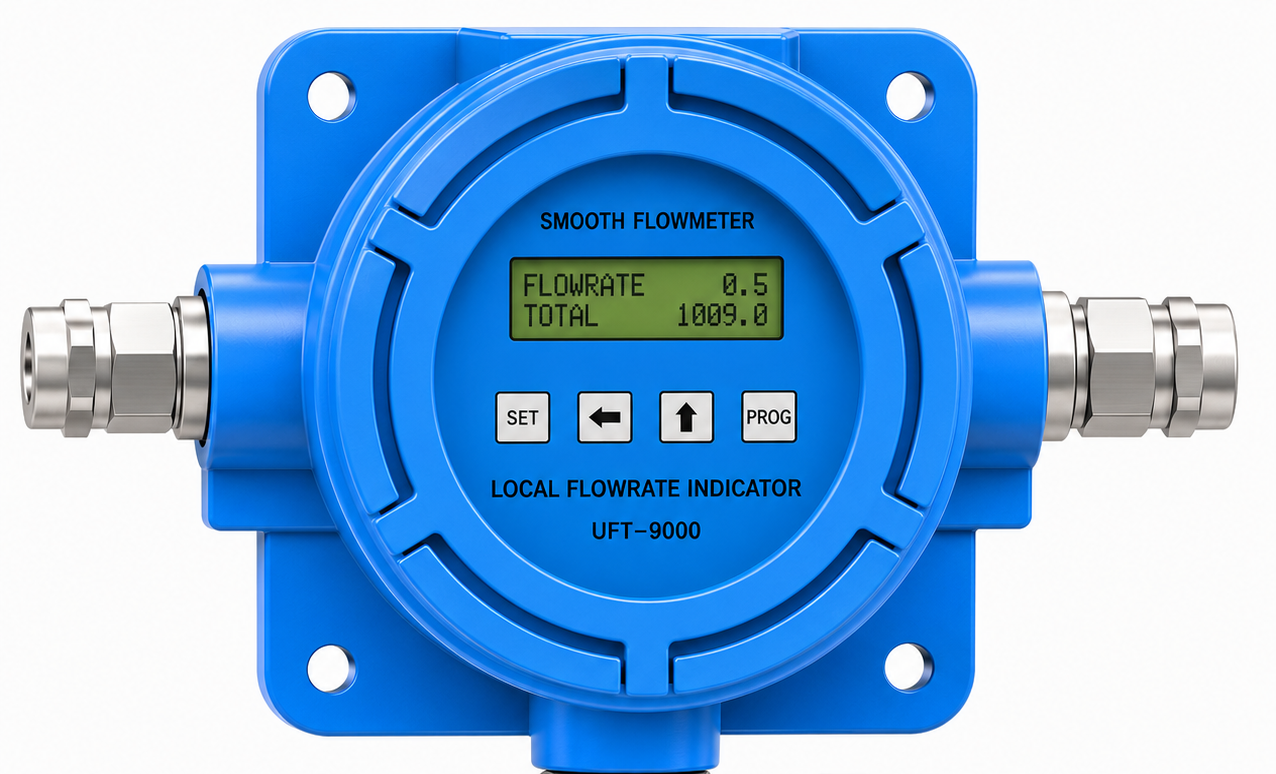

Meter Mounted Display Unit
- Model – UFT 9000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC & Battery Operated

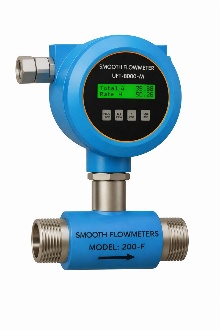

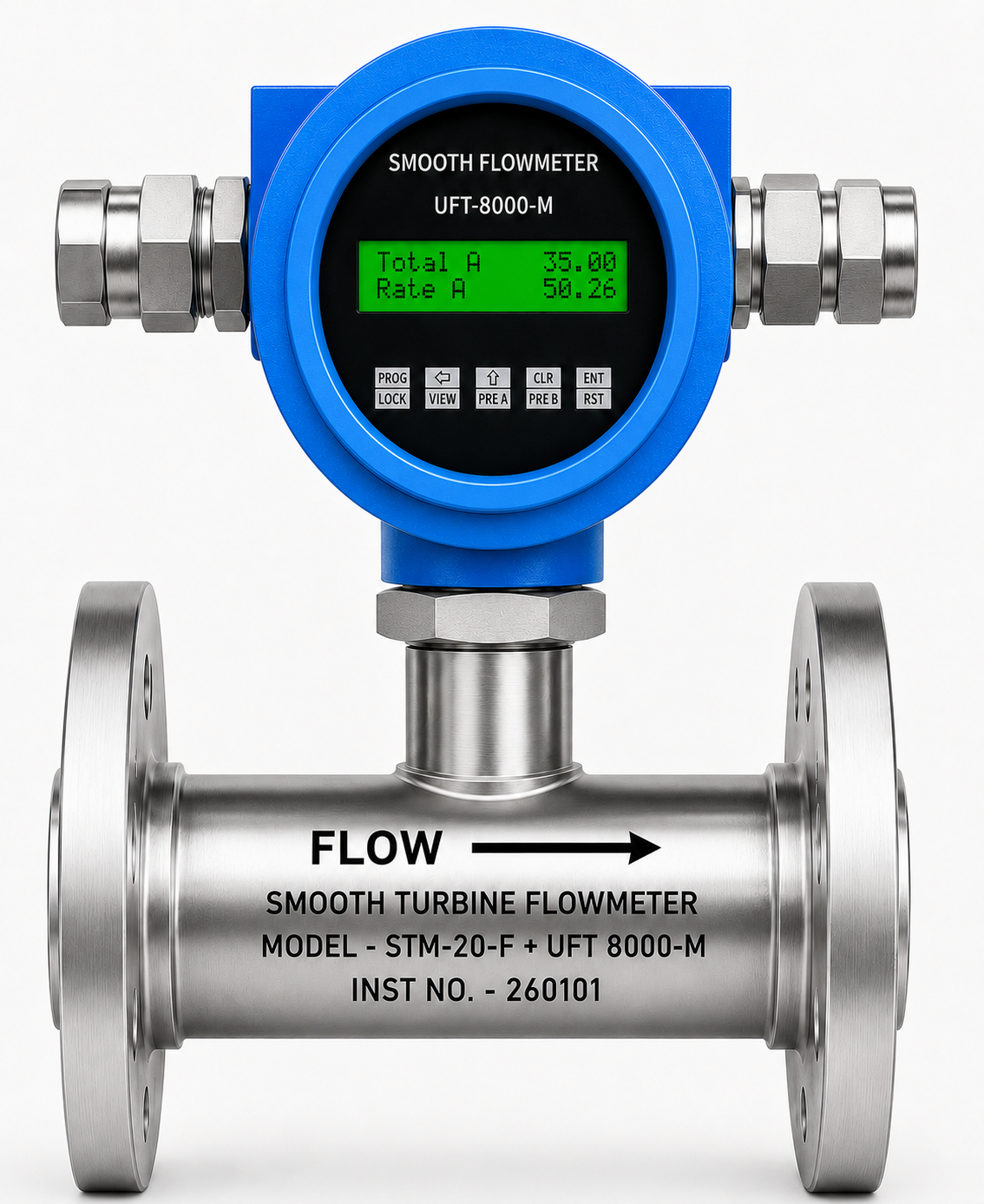

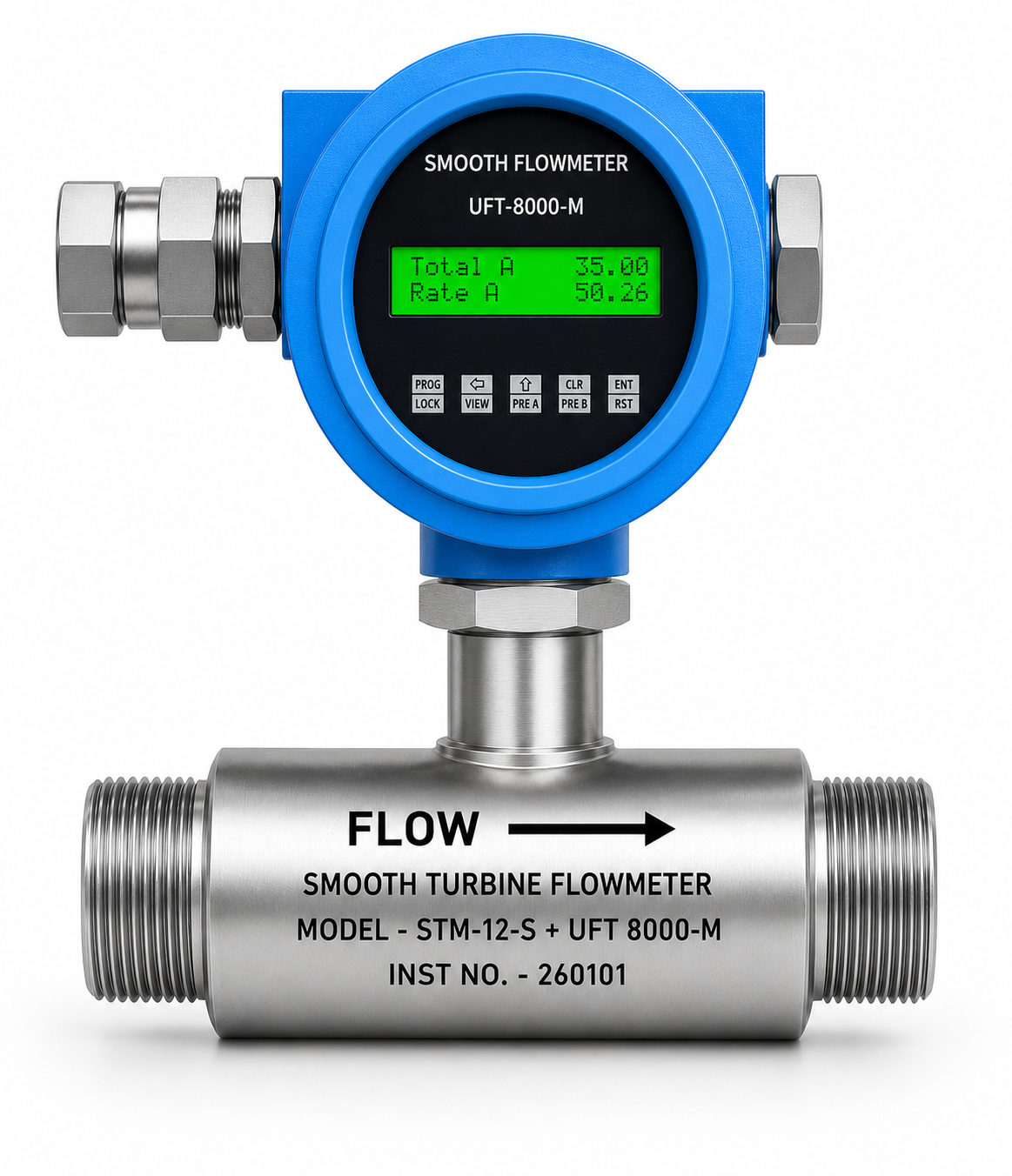

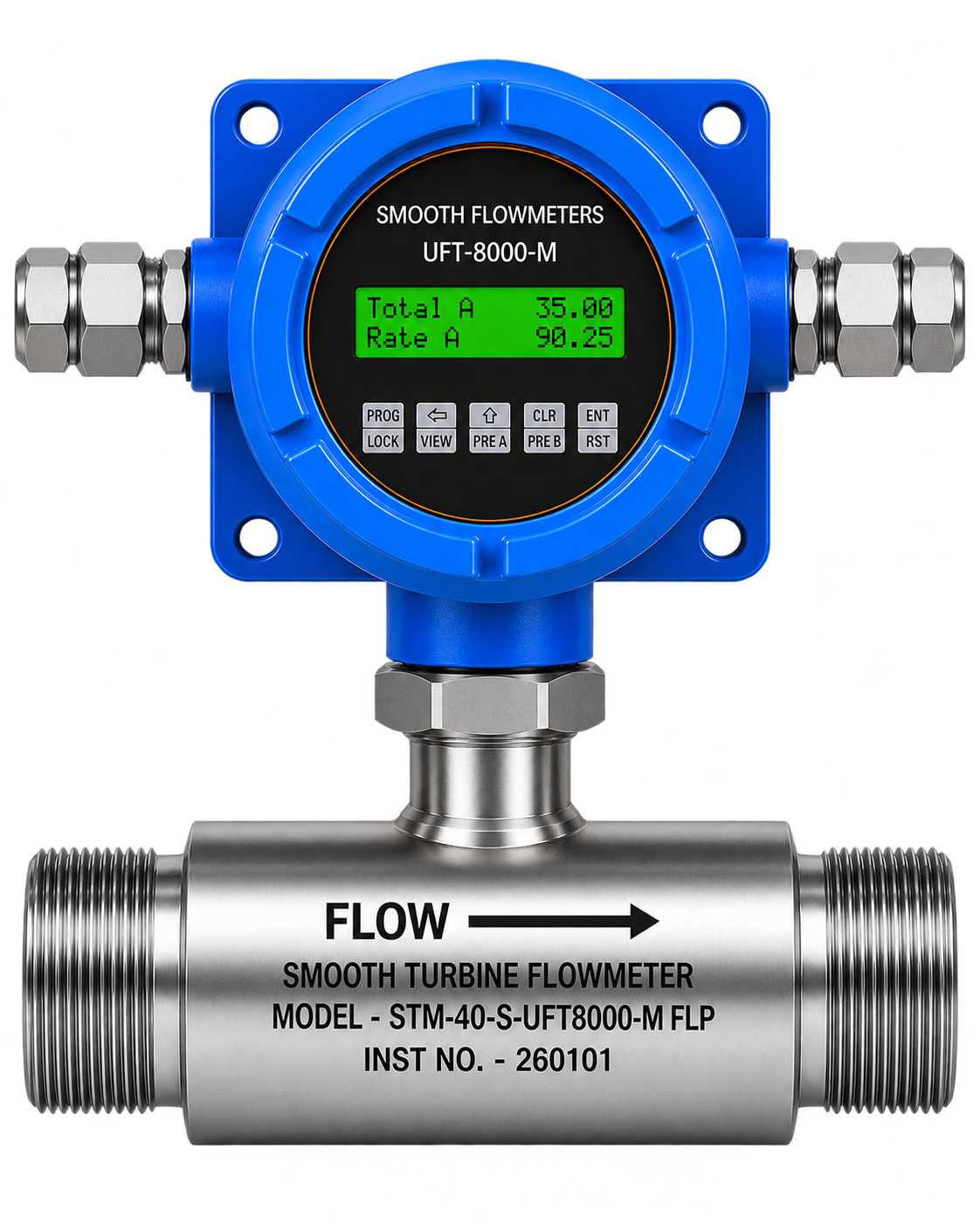

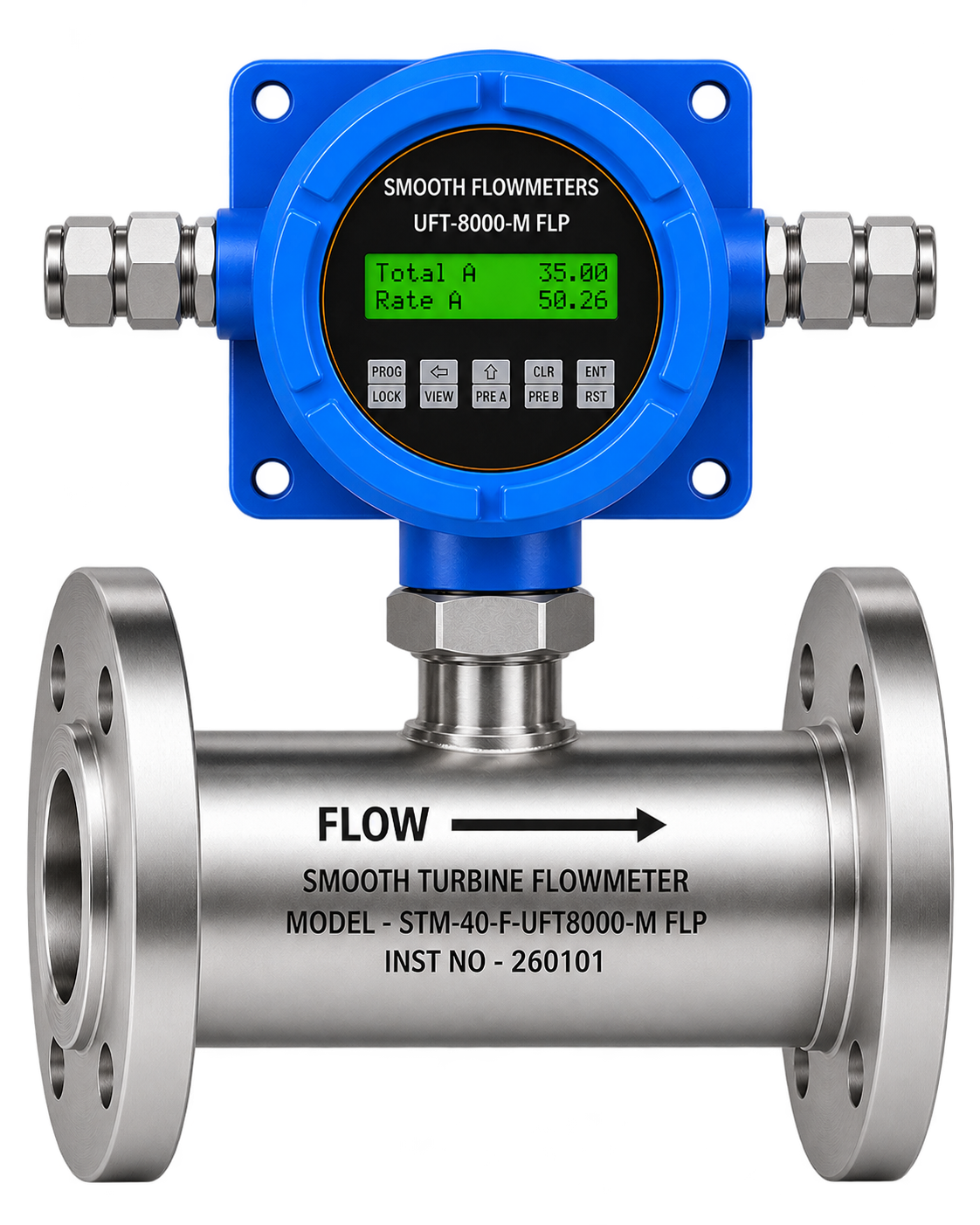

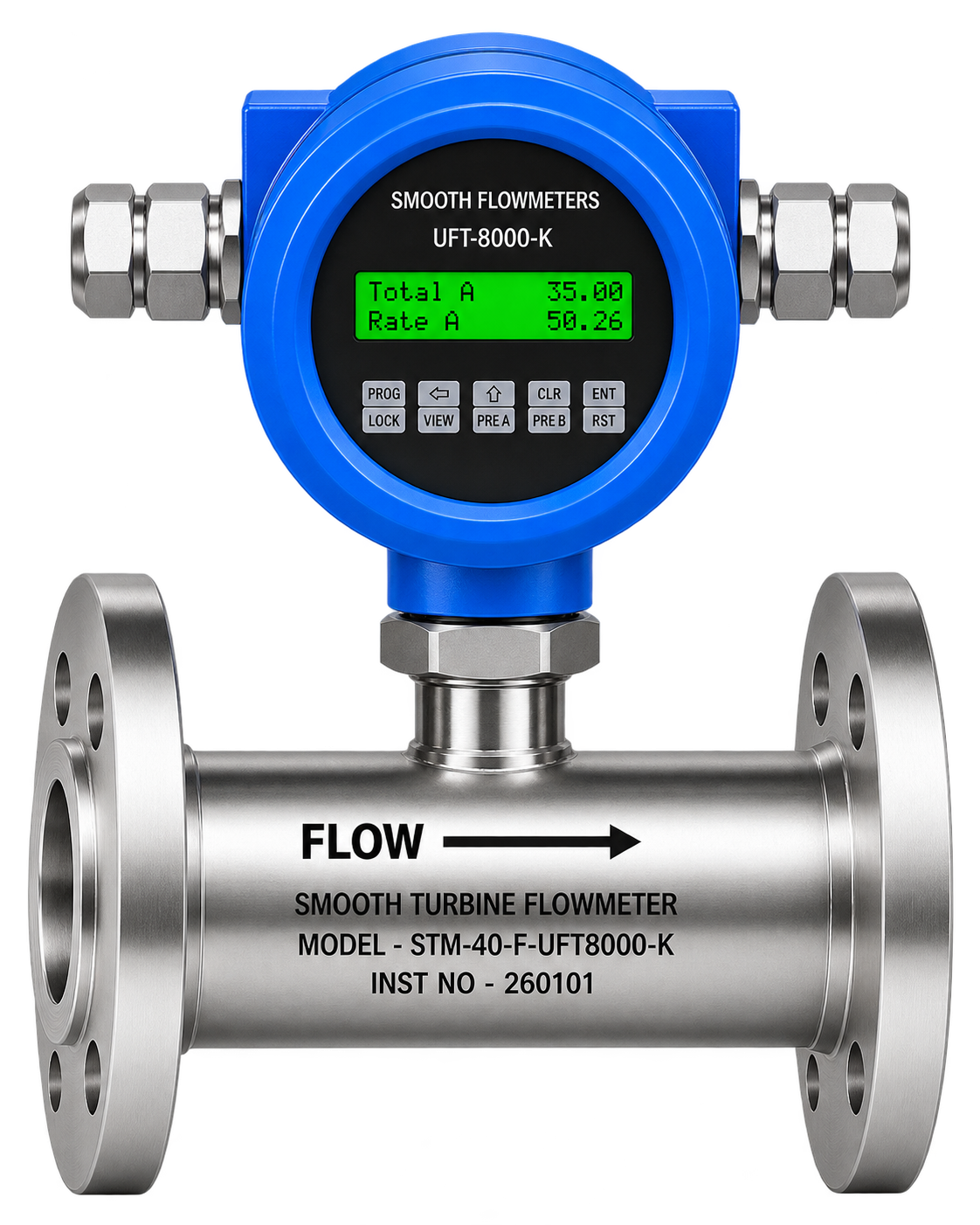

STM with Meter Mounted Flow Indicator 24VDC Operated
Continuous loop-powered flow indicator providing simultaneous display readings and telemetry outputs.
Characteristics
- Measuring range Screw Type: 0.2 to 70 M³/Hr
- Measuring range Flange Type: 0.2 to 1100 M³/Hr
- Media temperature: -30 … 60 °C
- Maximum pressure: … 300 bar

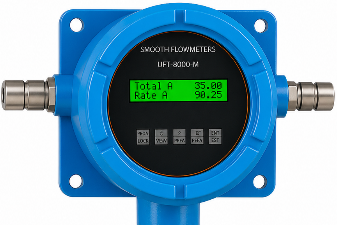

Meter Mounted Display Unit
- Model – UFT 8000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

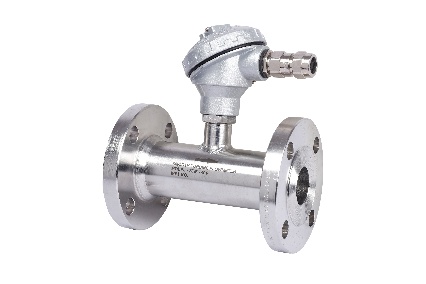

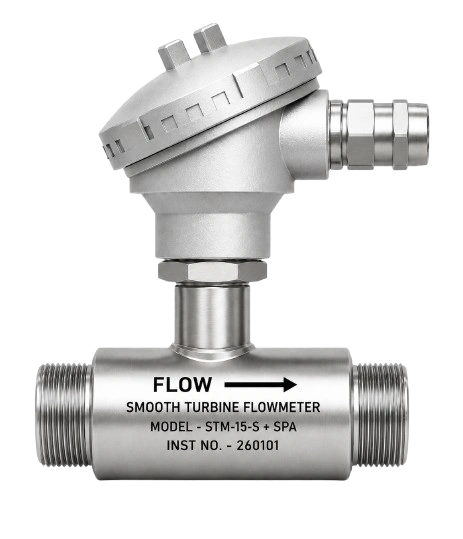

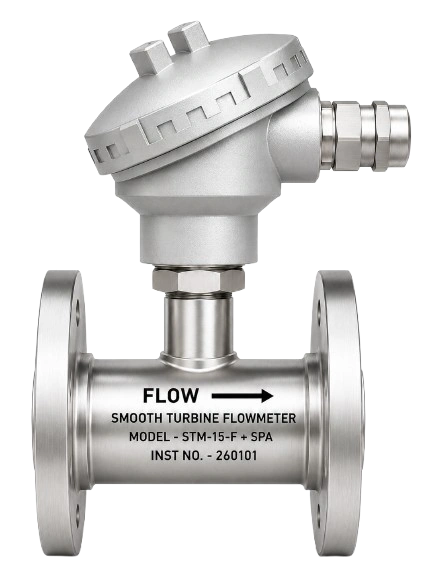

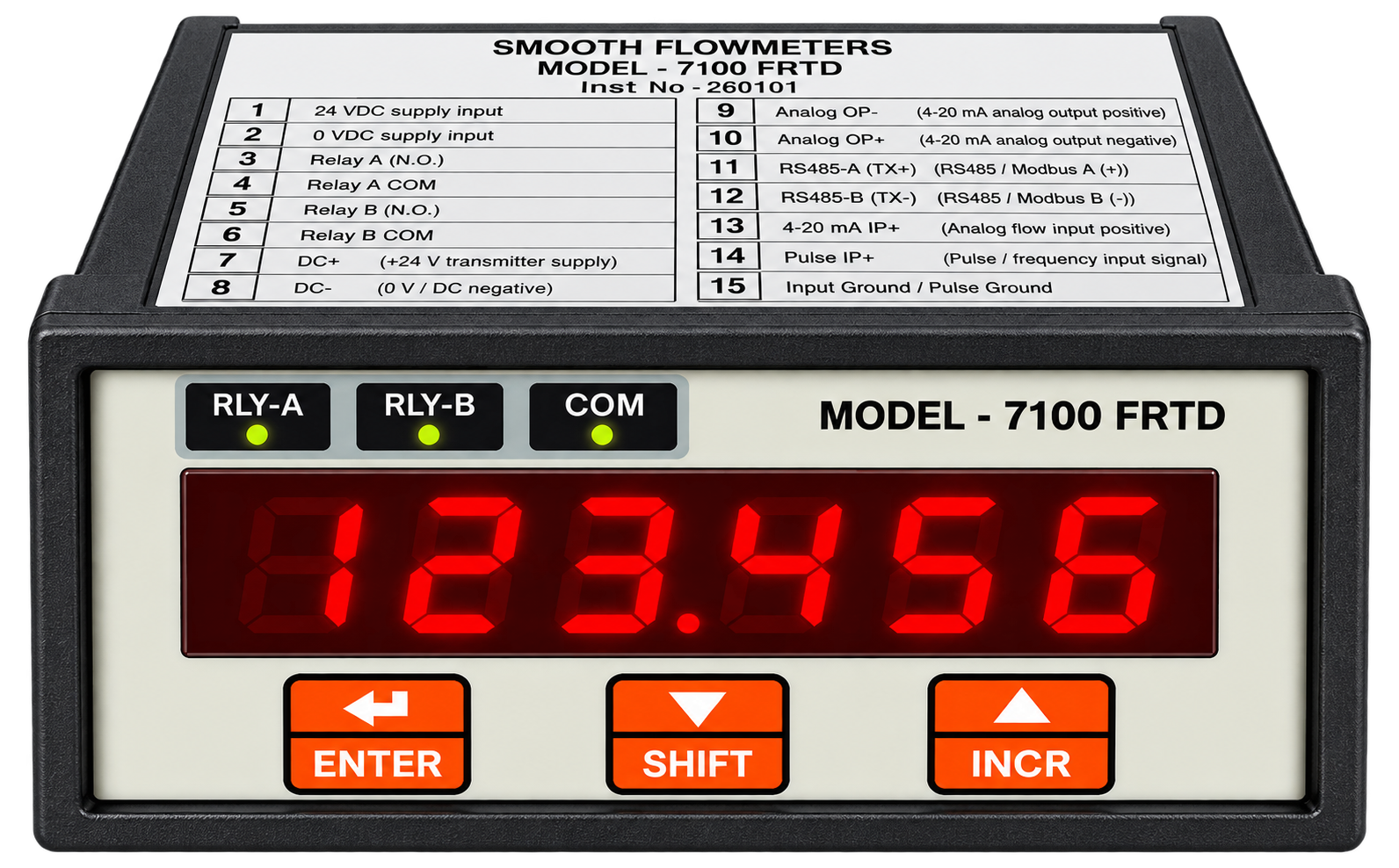

STM with Panel Mounted Flow Indicator 230VAC Operated
Centralized panel-mount indicator designed for quick integration into console and control room cabinets.
Characteristics
- Measuring range Screw Type: 0.2 to 70 M³/Hr
- Measuring range Flange Type: 0.2 to 1100 M³/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

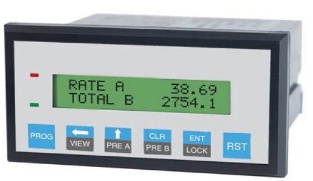

Panel Mounted Display Unit
- Model – FRT 7000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 232
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 230 VAC or 24 VDC

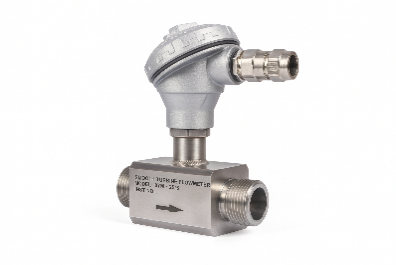

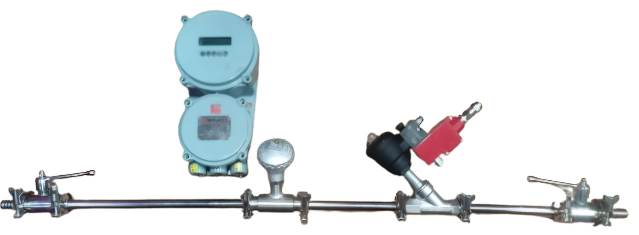

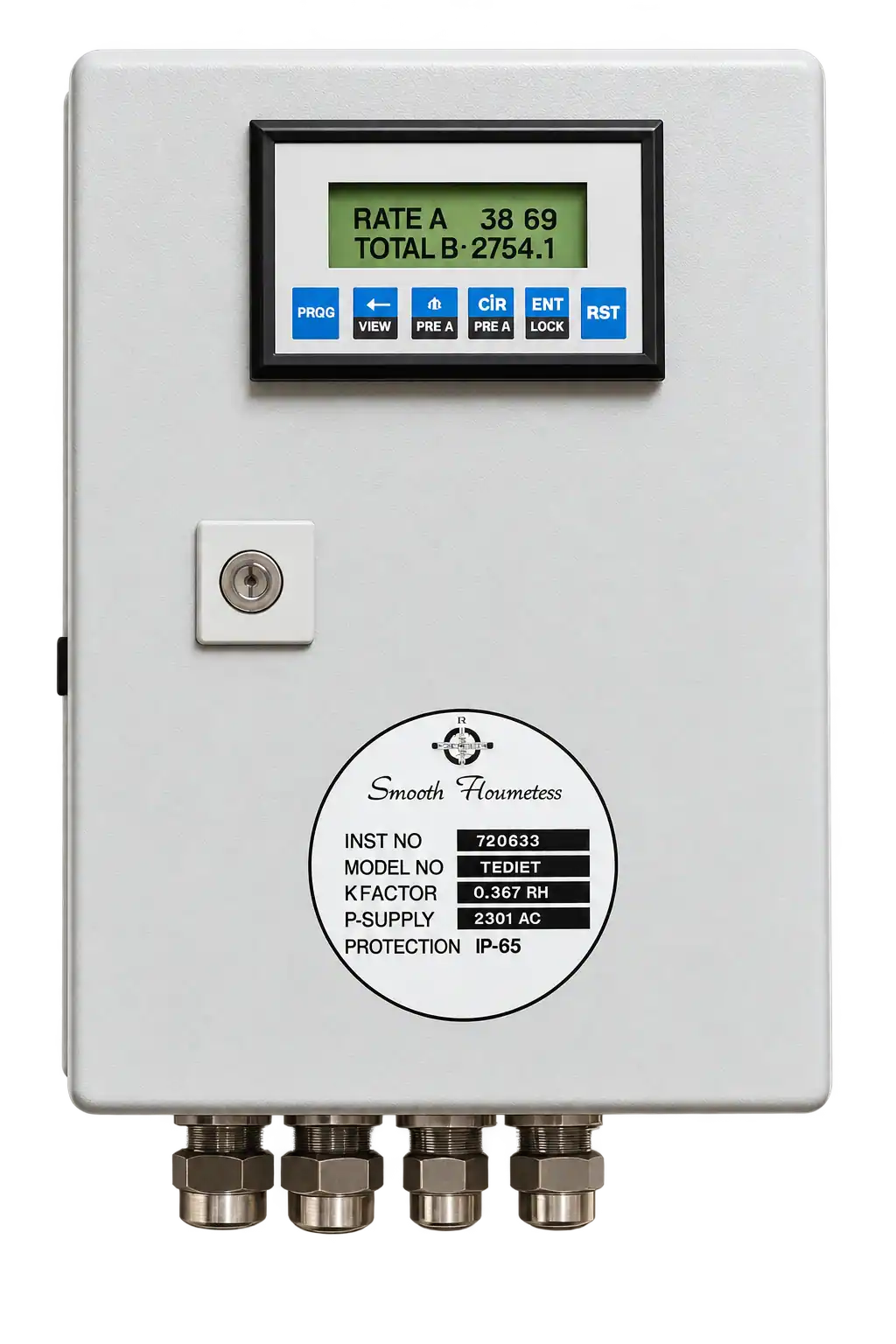

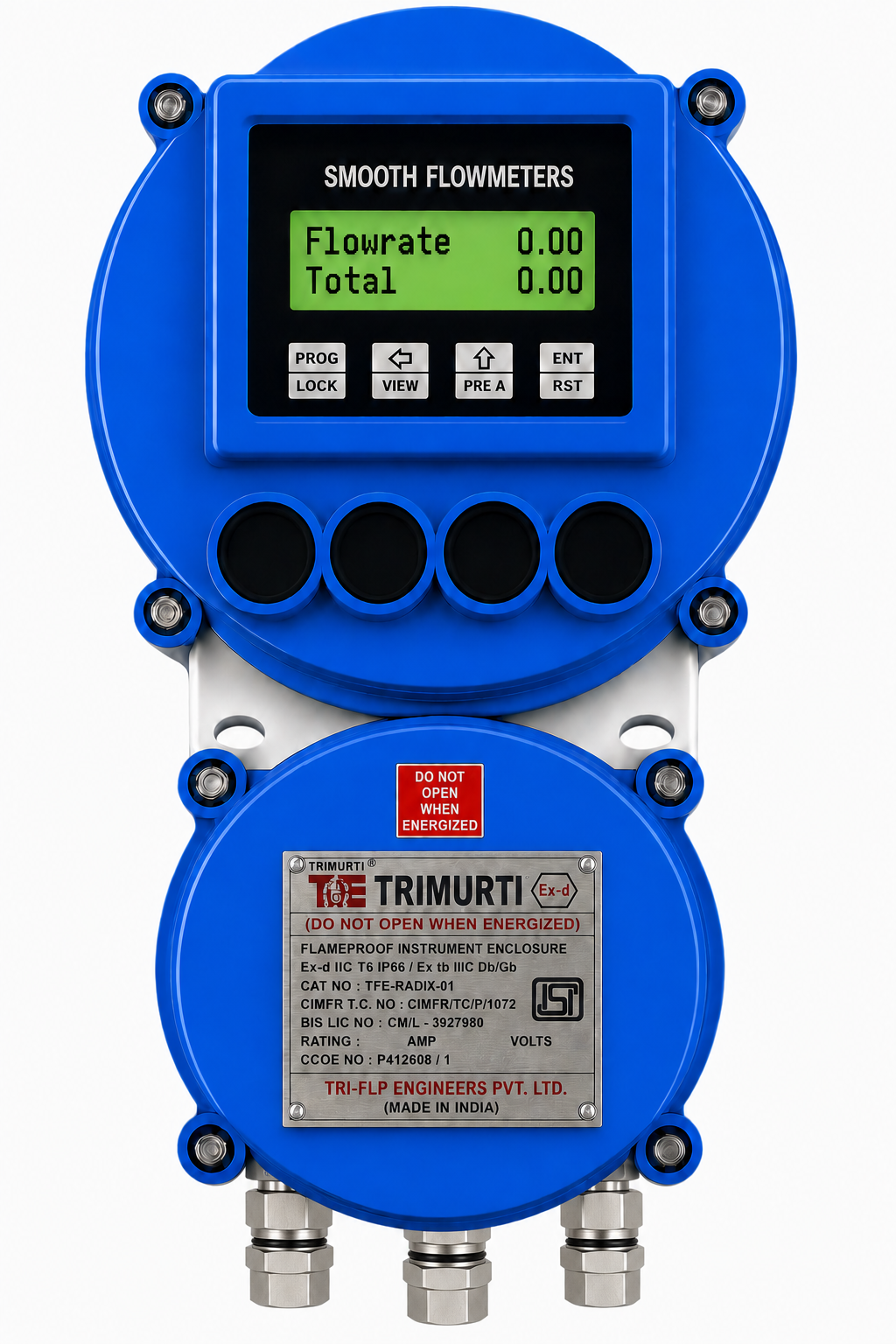

STM with Wall Mounted Flow Indicator 230VAC Operated (Batching Systems)
Standalone wall-mountable batch controller for dedicated localized production cutting and volume recipes.
Characteristics
- Measuring range Screw Type: 0.2 to 70 M³/Hr
- Measuring range Flange Type: 0.2 to 1100 M³/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 barNew Feature Line
Wall Mounted Display Unit
- Model – UFT 8000-P Batch Controller
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC or 230 VAC
Datasheet Download
Download the product datasheet for technical specifications.
STM Series Datasheet
Download the datasheet for this product.
Industry-wise Applications
1.
Water & Wastewater
- • Potable water measurement
- • Distribution and consumption monitoring
- • Cooling water measurement in plants
2.
Oil & Gas Industry
- • Measurement of crude oil and refined products
- • Fuel dispensing (diesel, gasoline, jet fuel)
- • Pipeline and terminal flow monitoring
3.
Chemical & Petrochemical
- • Measurement of solvents, alcohols, & light chemicals
- • Monitoring of process fluids in batch/continuous plants
- • Custody transfer of refined products
4.
Food & Beverage Industry
- • Juices, milk, beer, & syrups (low viscosity)
- • Process water monitoring
- • Bottling and filling lines
5.
Power Generation
- • Boiler feedwater monitoring
- • Cooling water circulation measurement
- • Fuel oil measurement for generators
6.
Pharmaceutical Industry
- • Purified water (WFI – Water for Injection)
- • Solvent and alcohol flow monitoring
- • Process liquid batching and blending
7.
Aerospace & Automotive
- • Aviation fuel flow measurement
- • Hydraulic oil flow testing
- • Engine test benches for performance
8.
HVAC & Utilities
- • Chilled water measurement
- • Heating system water flow monitoring
- • Industrial utility fuel/water distribution
Common Construction Options
- Body materials: SS304, SS316
- Connections: BSP/NPT threaded, flanged, tri-clamp
- Rotor – ANC 21 , Duplex SS
- Bush – TC & PTFE , PEEK
- Shaft - TC & Duplex SS
- Pick Off Sensor – Magnetic and Hall Sensor
- Outputs: Pulse, 4–20 mA, Modbus, Display-integrated or Remote
- Sizes: From ¼” to 8” (and higher for special designs)
Selection Tips
When choosing an inline turbine flowmeter, consider the following process data:
- Flow rate (Min / Max)
- Pressure (Min / Max)
- Temperature (Min / Max)
- Liquid density & viscosity
