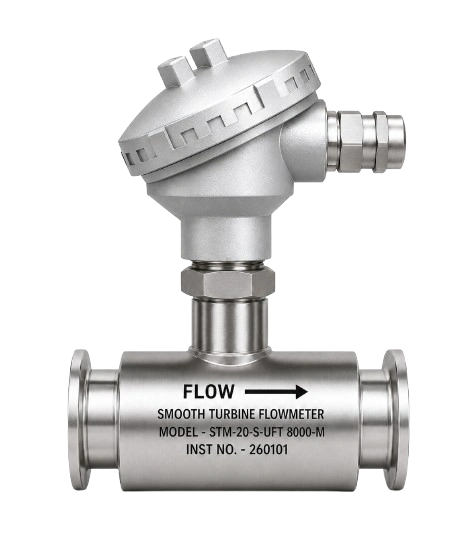

TCF Series
Hygienic Turbine Flowmeters
Hygienic turbine flowmeters are specifically engineered for food, beverage, and pharmaceutical industries.
TCF Series
Principle of Operation: The liquid enters the flowmeter and passes through
a precision-machined turbine rotor. The velocity of the liquid causes the turbine to rotate.
The rotational speed of the turbine is directly proportional to the volumetric flow rate. A
magnetic or Hall-effect sensor detects the turbine rotation. Each rotation generates a pulse
signal, which is converted into flow rate and totalized volume.
CHARACTERISTICS
- Measuring range: 2 to 1200 LPM
- Media temperature: -40 … 150 °C
- Maximum pressure: … 15 bar
Key Features of Hygienic Turbine Flowmeters
- High accuracy (±0.5% to ±0.25% of reading)
- Sanitary design with smooth internal surfaces
- Food-grade SS 316 / 316L construction
- CIP / SIP compatible
- Compact and lightweight design
- Low pressure drop
- Pulse, 4–20 mA, or digital output options
- Easy installation and maintenance
Key Principle Characteristics
- Direct measurement of volumetric flow
- High accuracy for clean and hygienic liquids
- Fast response to flow changes
- Suitable for batching and dosing applications

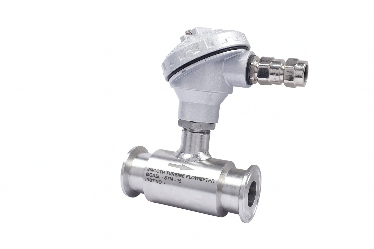

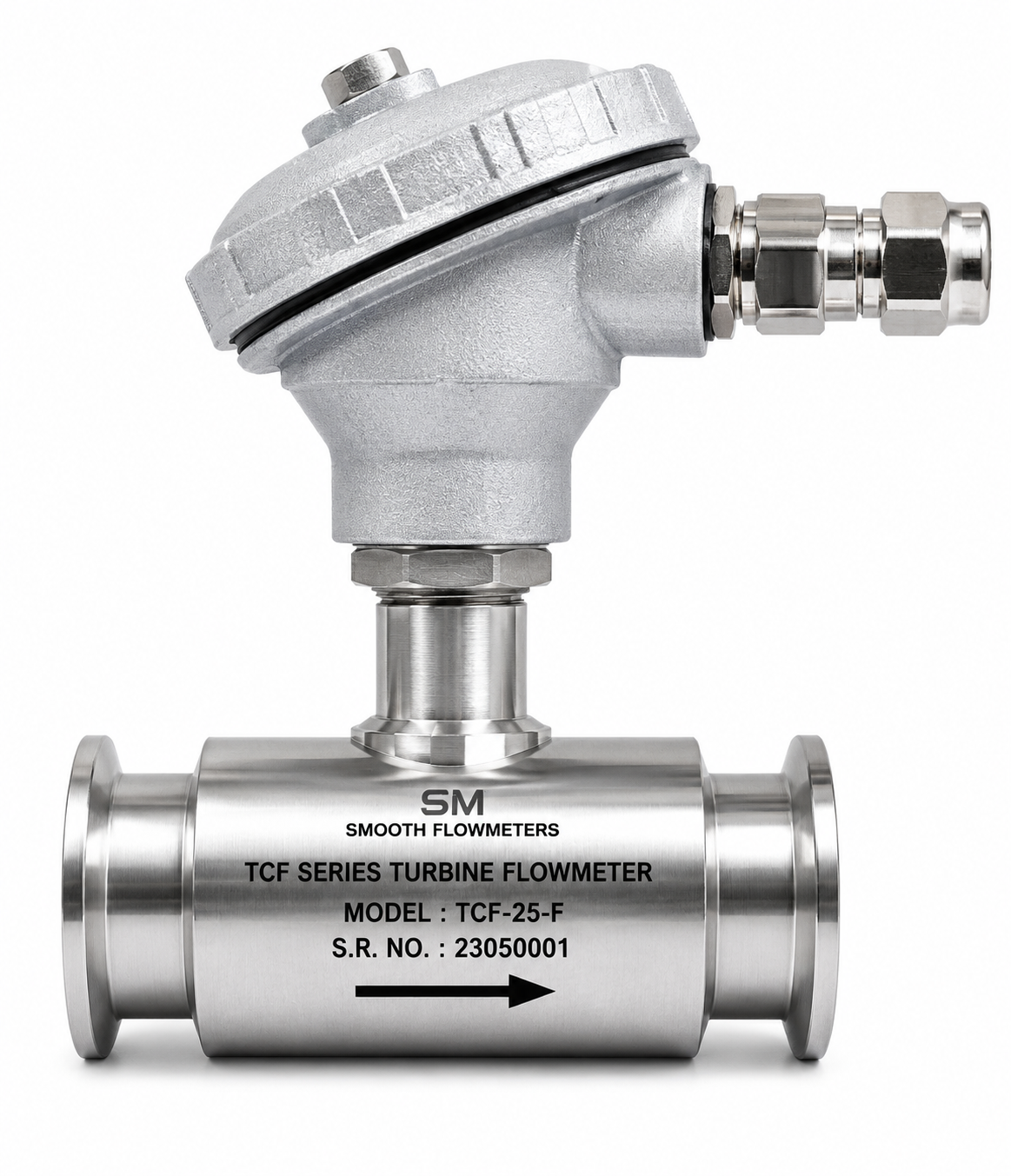

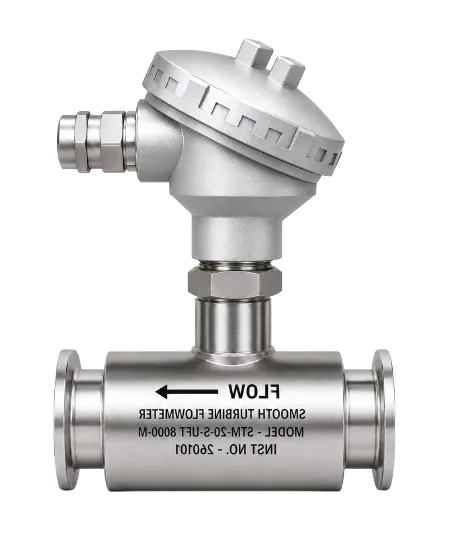

TCF with Pulse Output
CHARACTERISTICS
- Measuring range: 2 to 1200 LPM
- Media temperature: -30 … 150 °C
- Maximum pressure: … 15 bar

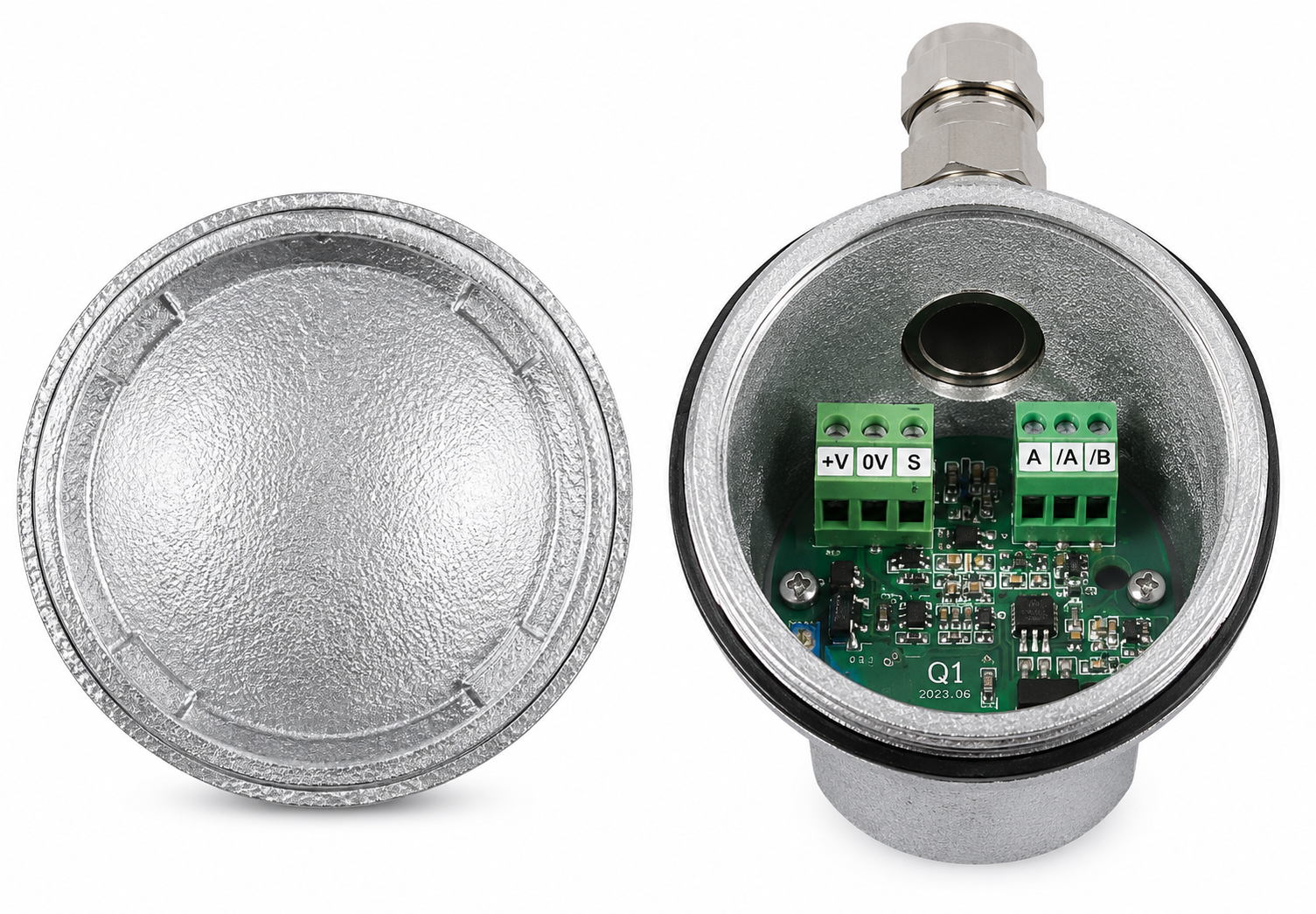

Pulse Transmitter
- Model – SPA – 10, SPA 100, SPA-1000
- SPA-10 – 2 Wire, 3 Wire PNP Pulse
- SPA-100 – Duel PNP Pulse
- SPA – 1000 - Duel PNP Pulse
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

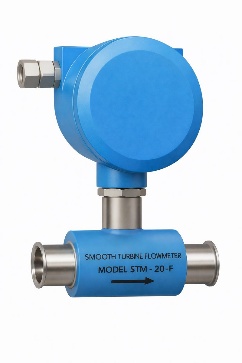

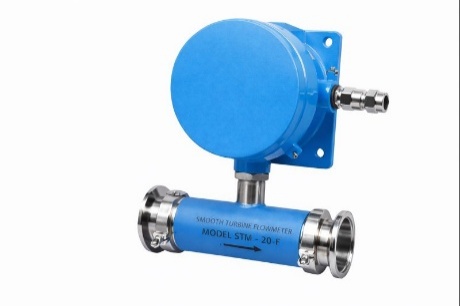

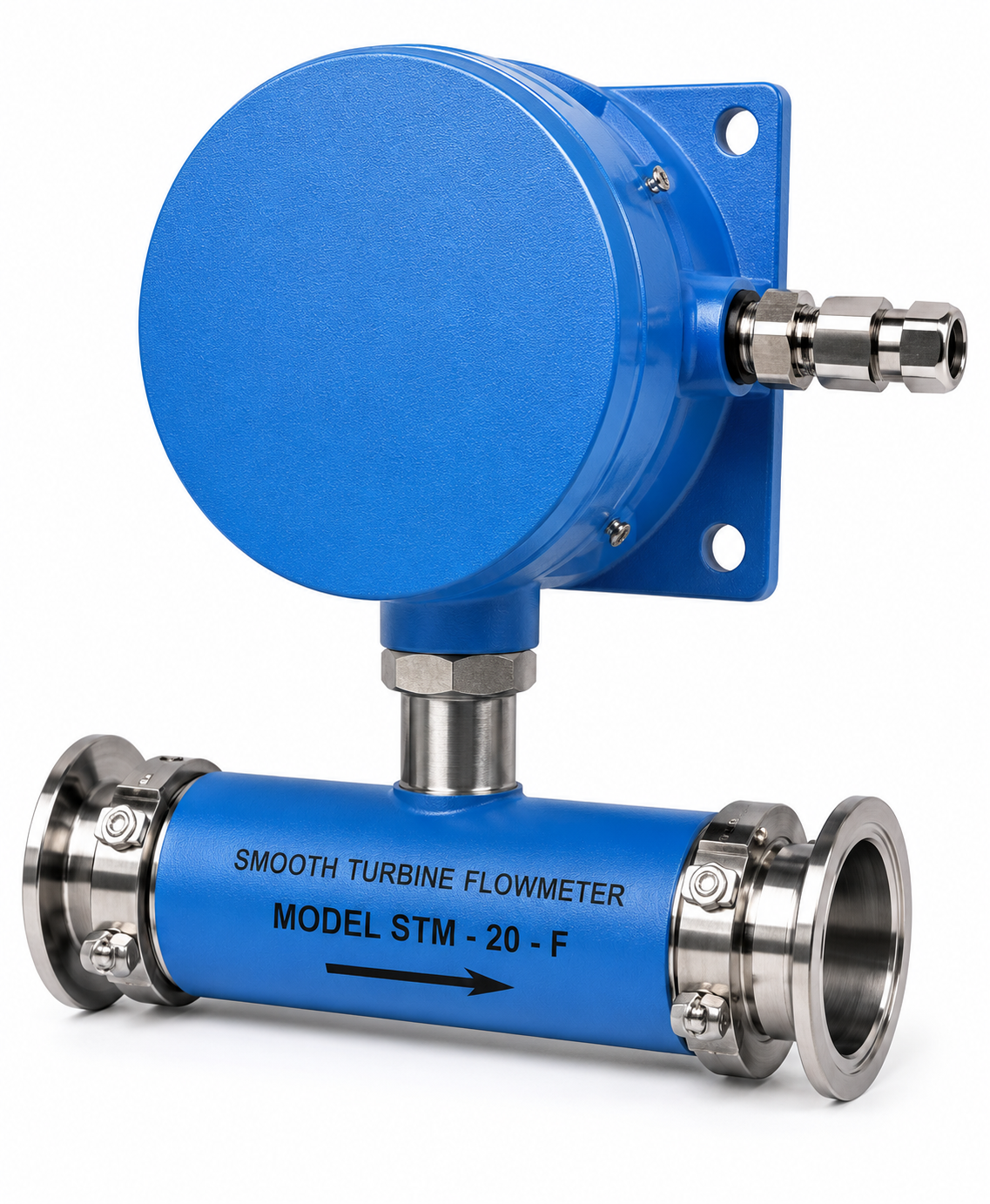

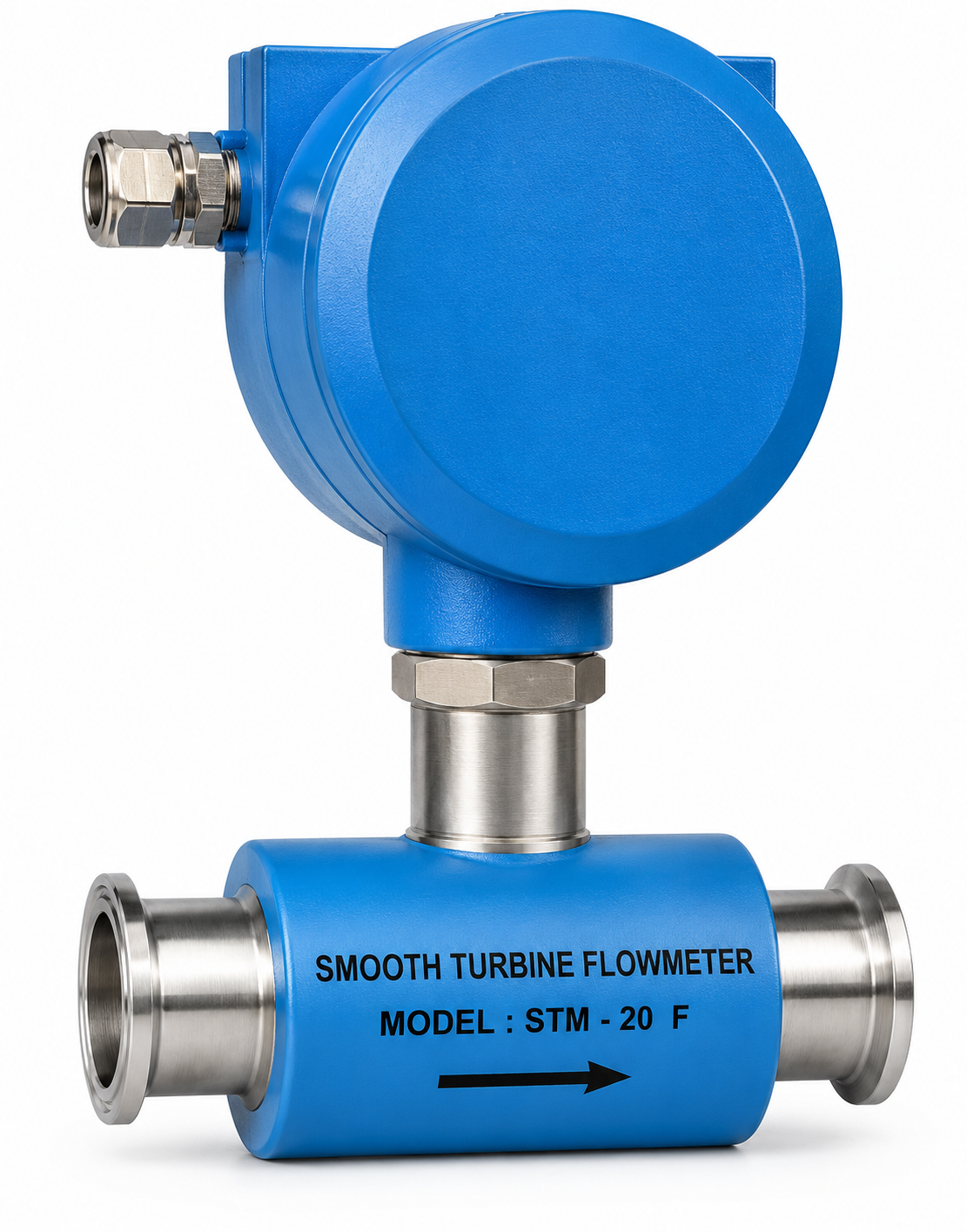

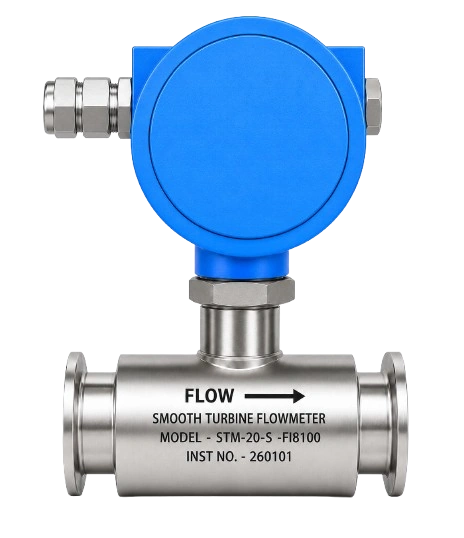

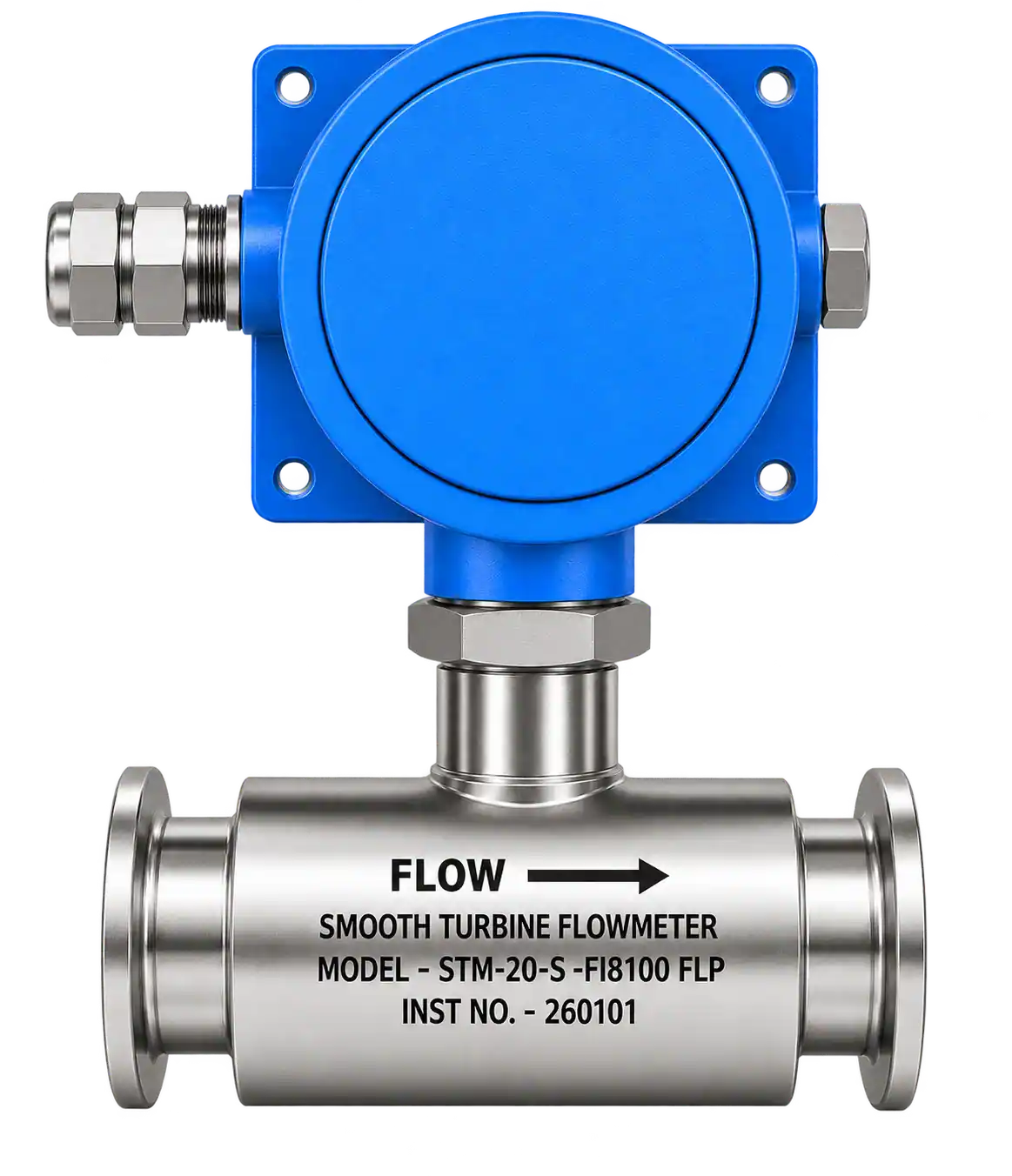

TCF with Analogue Output
CHARACTERISTICS
- Measuring range: 2 to 1200 LPM
- Media temperature: -30 … 150 °C
- Maximum pressure: … 15 bar

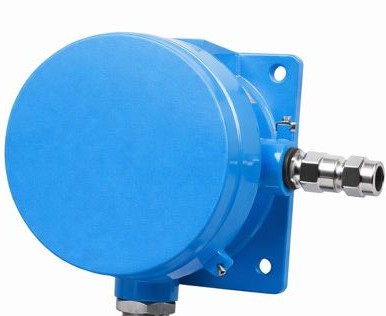

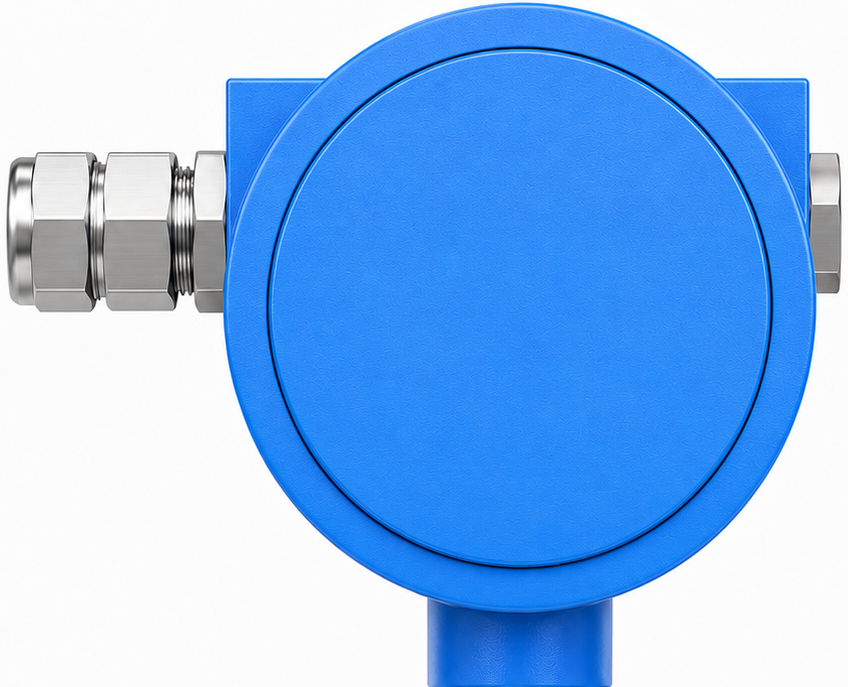

F/I Current Transmitter
- Model – FI-8100, FI-8200
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

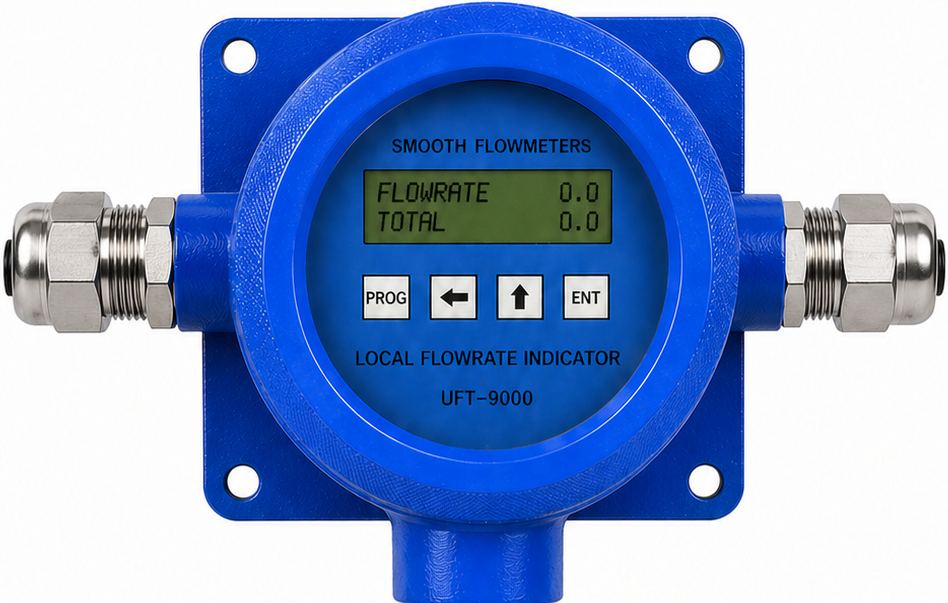

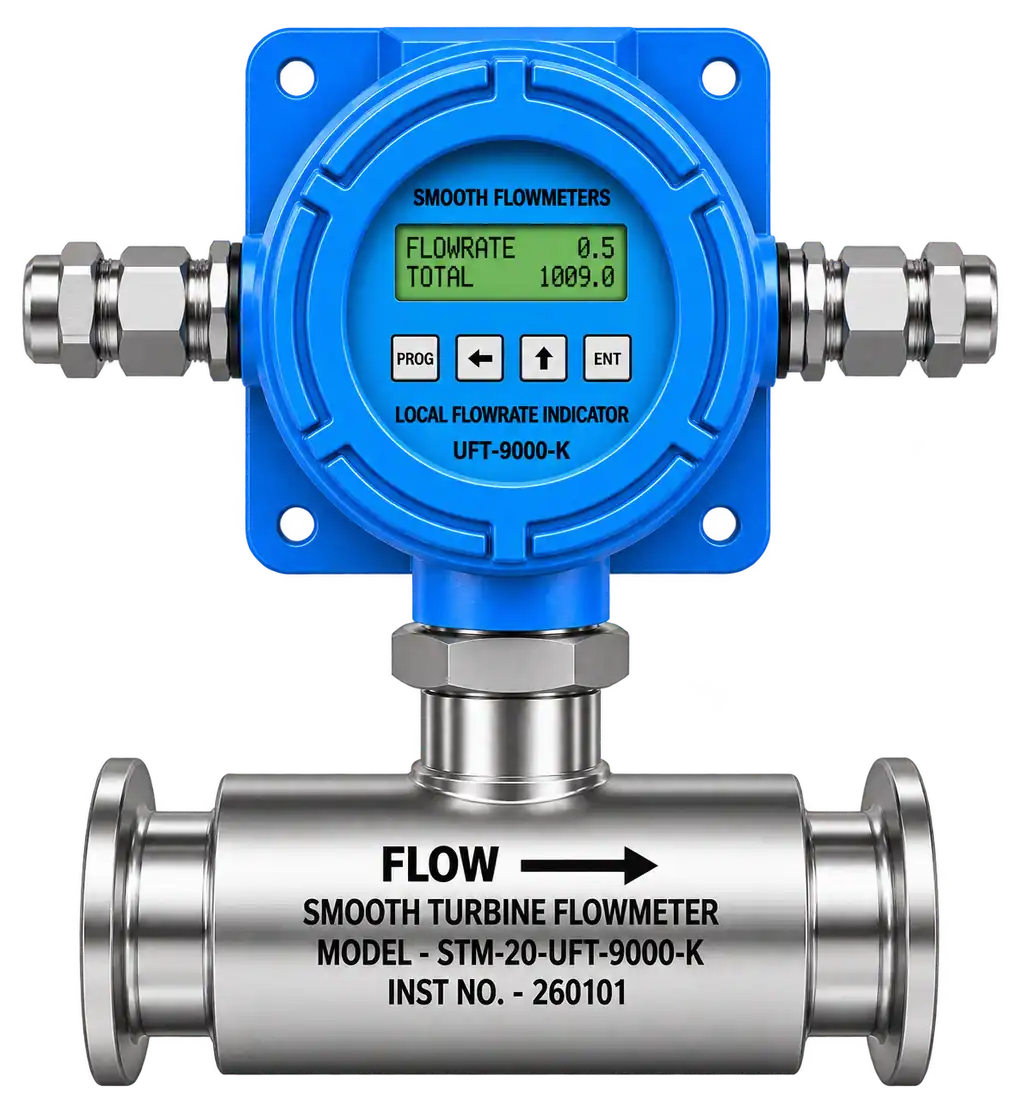

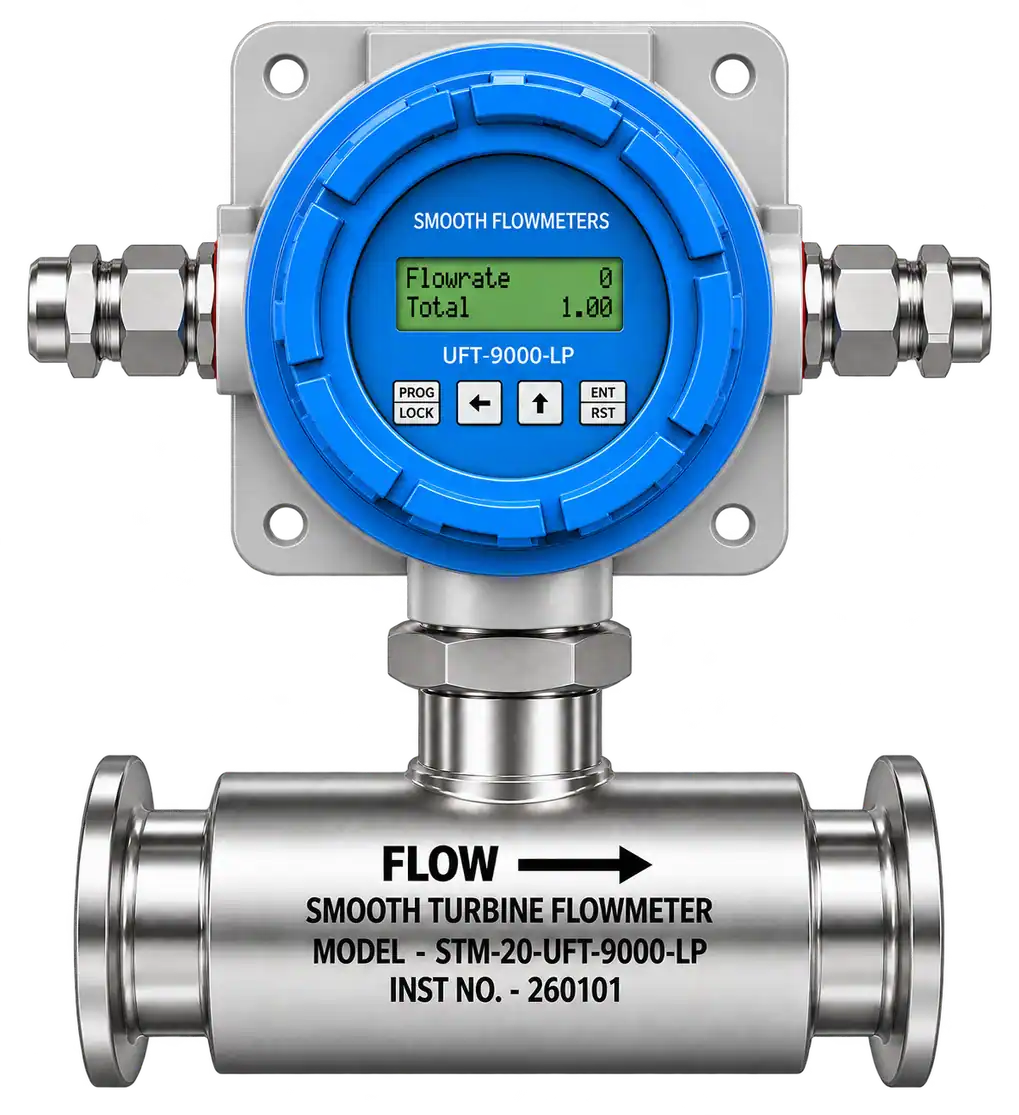

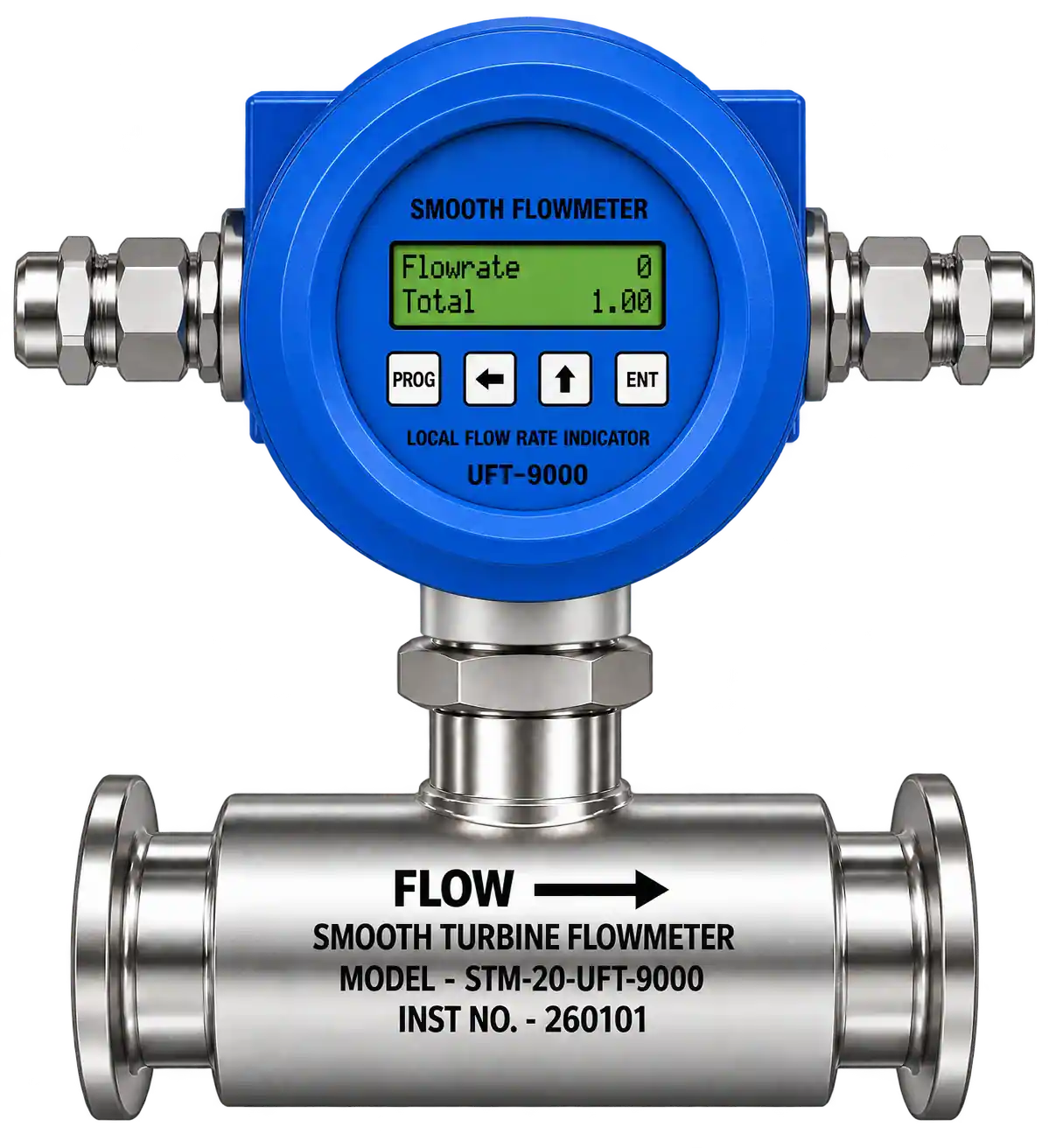

TCF with Meter Mounted Battery-Operated Flow Indicator
CHARACTERISTICS
- Measuring range: 2 to 1200 LPM
- Media temperature: -30 … 150 °C
- Maximum pressure: … 15 bar

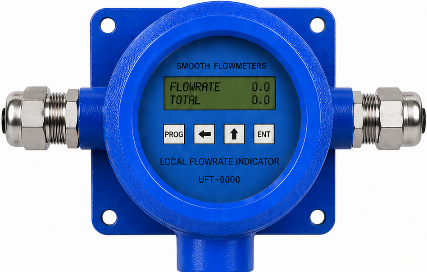

Meter Mounted Display Unit
- Model – UFT 9000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC & Battery Operated

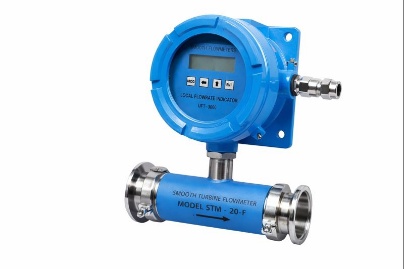

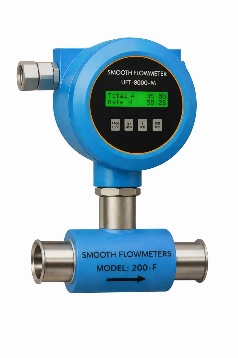

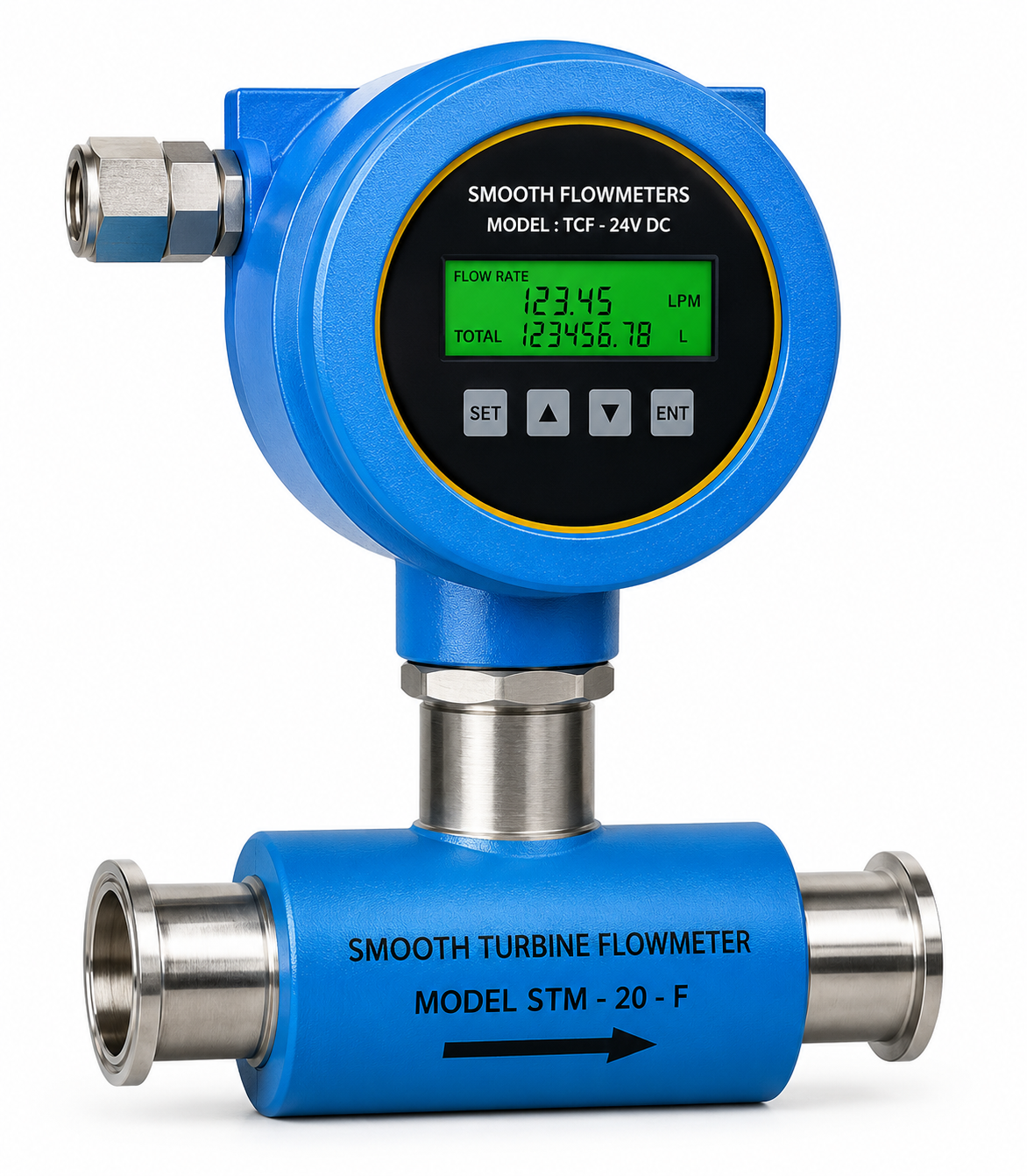

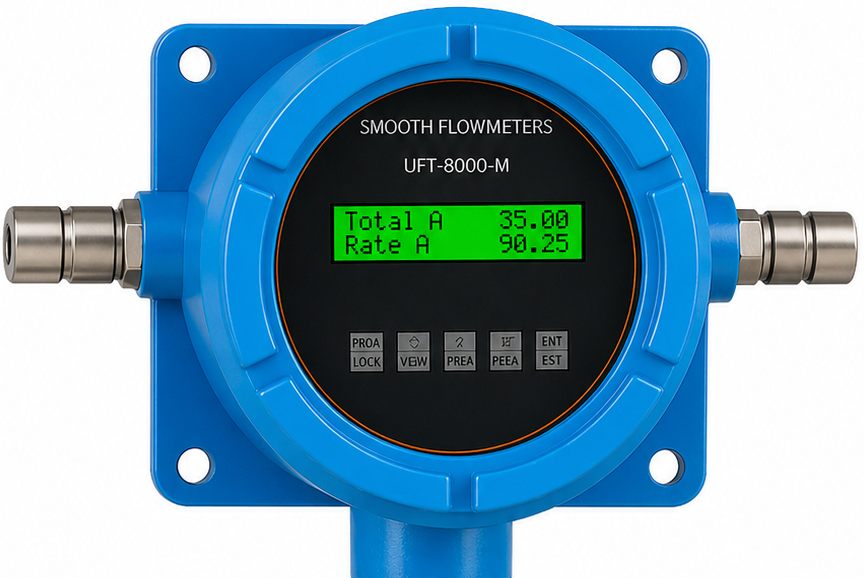

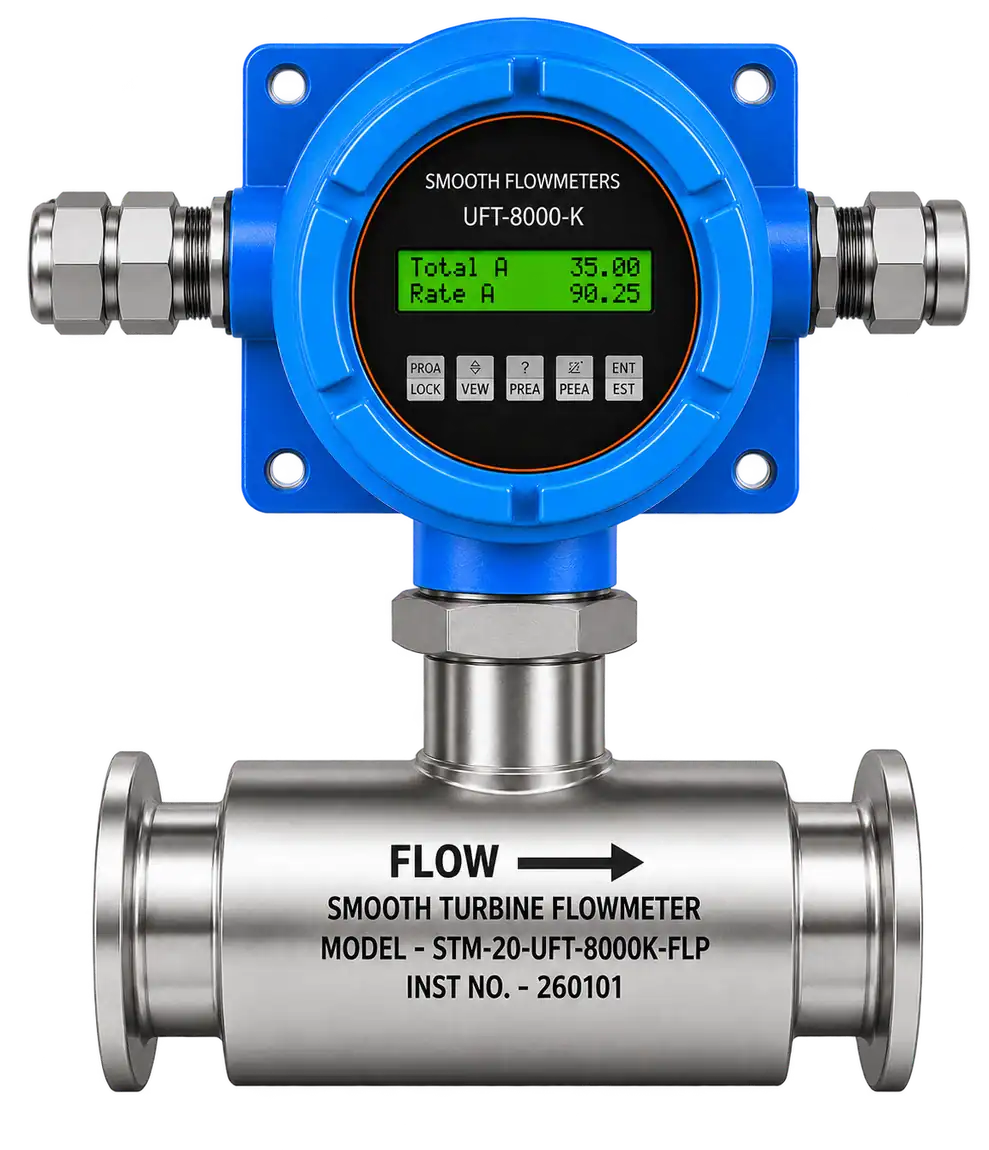

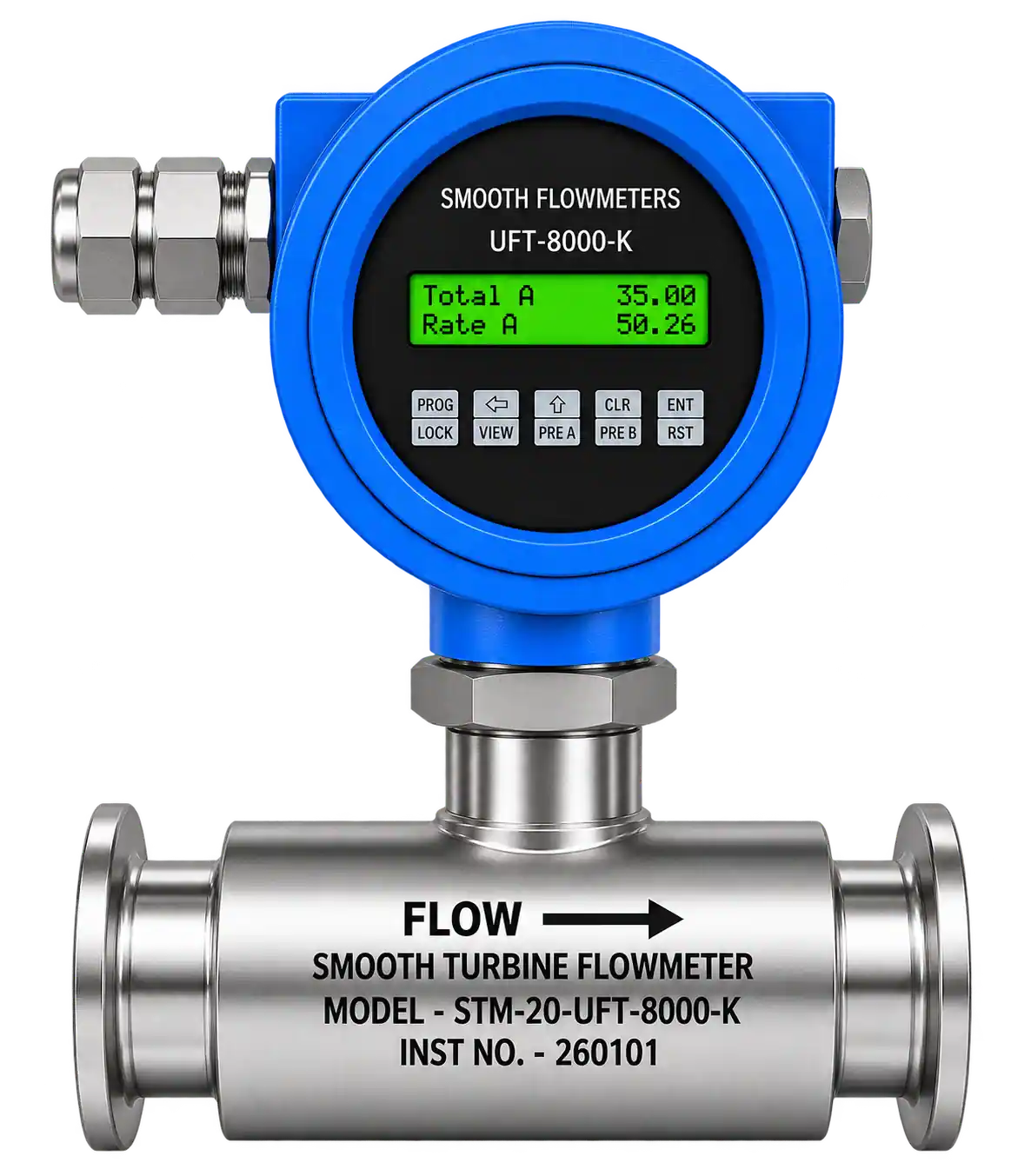

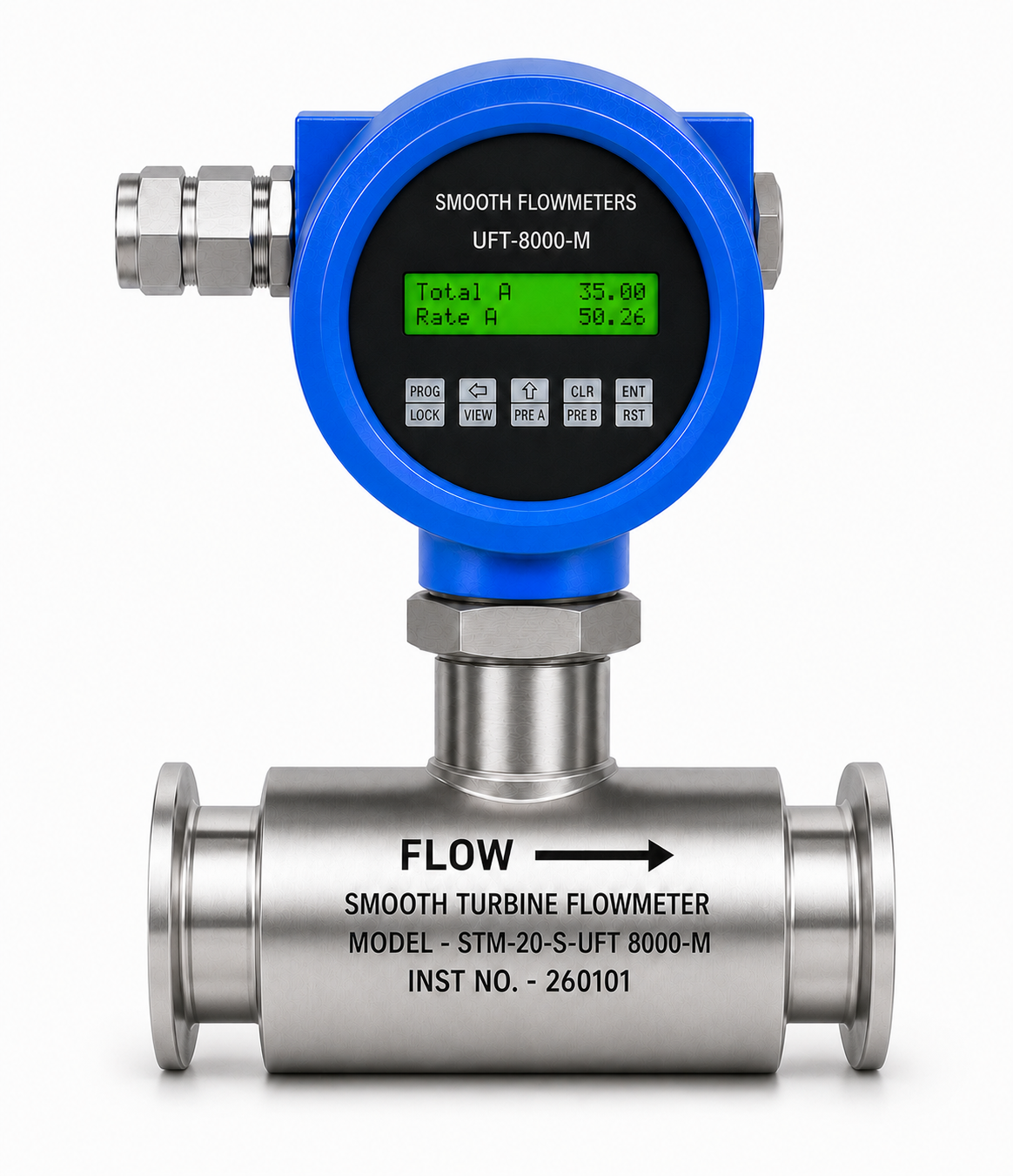

TCF with Meter Mounted Flow Indicator 24VDC Operated
CHARACTERISTICS
- Measuring range: 2 to 1200 LPM
- Media temperature: -30 … 150 °C
- Maximum pressure: … 15 bar
Meter Mounted Display Unit
- Model – UFT 8000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

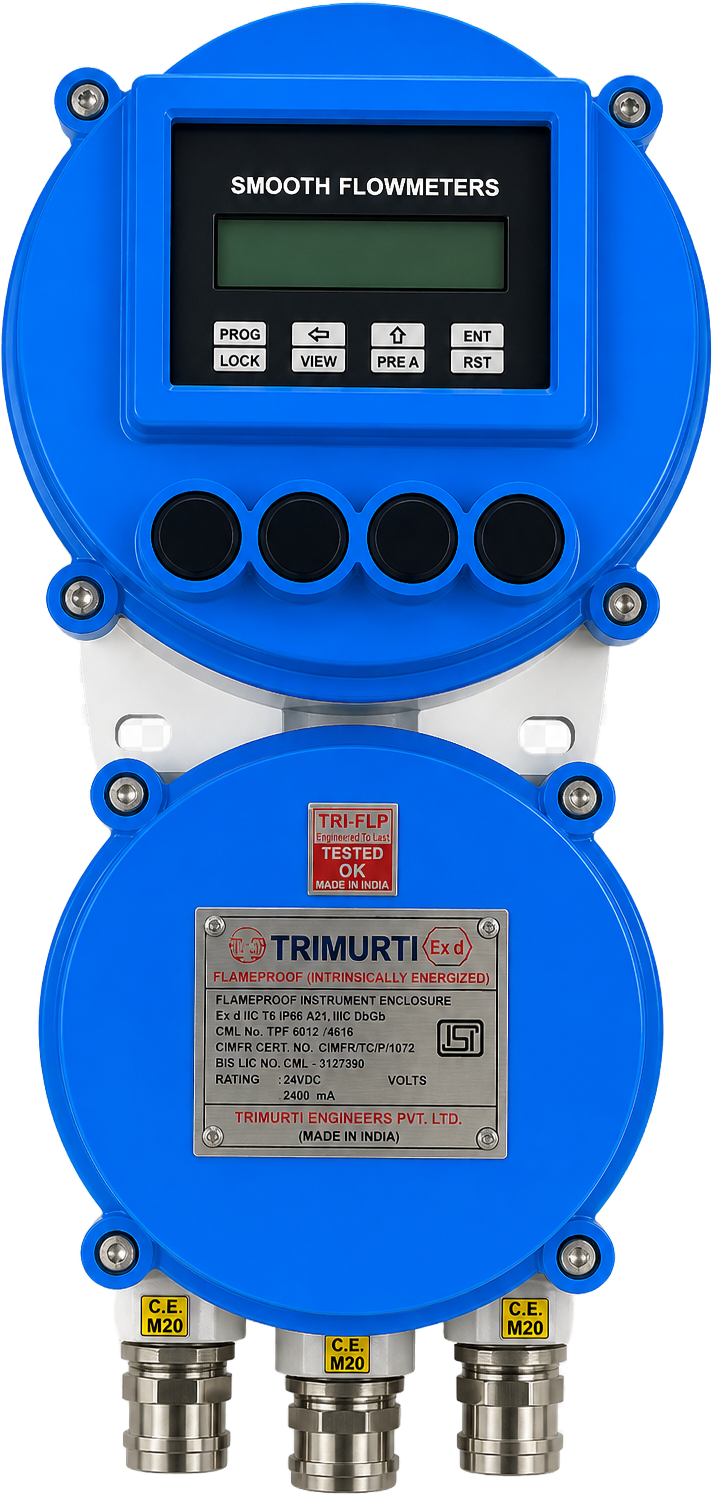

TCF with Panel / Wall Mounted Flow Indicator 230VAC Operated
CHARACTERISTICS
- Measuring range: 2 to 1200 LPM
- Media temperature: -30 … 150 °C
- Maximum pressure: … 15 bar

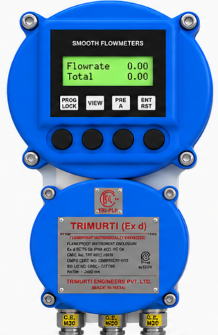

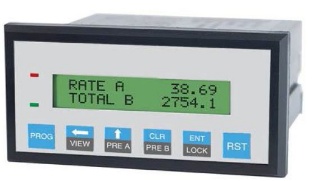

Panel / Wall Mounted Display Unit
- Model – FRT 7000 / UFT 8000-P
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 232
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 230 VAC or 24 VDC
Datasheet Download
Download the product datasheet for technical specifications.
TCF Series Datasheet
Download the datasheet for this product.
Industry-wise Applications of TCF Turbine Flowmeters
TCF Turbine Flowmeters are designed for accurate measurement of clean, low-viscosity liquids such as fuels, solvents, chemicals, and light oils. These flowmeters provide high precision, quick response, and reliable performance, making them suitable for a wide range of industrial applications.
Smooth Flowmeters TCF Turbine Flowmeters are widely used in industries where accurate monitoring of liquid flow is critical for process control, batching, and operational efficiency.
Chemical plants use TCF Turbine Flowmeters for accurate measurement of solvents and process liquids.
Typical Applications- • Solvent flow monitoring
- • Chemical batching systems
- • Process liquid monitoring
- • Chemical transfer operations
Pharmaceutical manufacturing requires precise monitoring of process liquids and solvents.
TCF Turbine Flowmeters meet stringent hygiene and sterility standards, offering high repeatability for critical processes and compatibility with CIP and SIP cleaning systems.
Typical Applications Typical Applications- • Solvent measurement in production lines
- • Purified water (PW)
- • Chemical dosing systems
- • Water for Injection (WFI)
- • Process liquid monitoring in manufacturing equipment
- • Liquid medicines and syrups
- • Solvent measurement
TCF Turbine Flowmeters are suitable for measuring clean liquid ingredients and processing fluids.
TCF Turbine Flowmeters feature hygienic construction to prevent contamination, ensure accurate batching and filling control, and allow easy cleaning without dismantling.
Typical Applications Typical Applications- • Beverage production monitoring
- • Milk flow measurement
- • Edible oil flow measurement
- • Juice, soft drinks, and beverages
- • Syrup and liquid ingredient monitoring
- • Edible oil transfer
- • Process water monitoring
- • Syrup and flavor dosing
These flowmeters ensure gentle flow measurement without product degradation, high precision for controlled processes, and sterile, contamination-free operations.
Typical Applications- • Nutrient media flow
- • Buffer solutions
- • Fermentation process liquids
TCF Turbine Flowmeters maintain product purity in dairy processing, support automated batching systems, and are highly resistant to frequent wash cycles.
Typical Applications- • Milk collection and processing
- • Cream and whey measurement
- • Yogurt and flavored milk lines
Featuring a smooth internal finish to avoid product residue, these flowmeters provide consistent dosing and filling accuracy with hygienic compliance for consumer safety.
Typical Applications- • Liquid soaps
- • Shampoos and conditioners
- • Lotions and creams (low viscosity)
Engineered with corrosion-resistant SS316/316L materials, they provide accurate measurement of low-viscosity liquids and stable performance in continuous processes.
Typical Applications- • Alcohols
- • Clean solvents
- • Specialty chemicals
TCF Turbine Flowmeters offer high accuracy for production consistency, easy cleaning between batches, and a compact design suitable for skid systems.
Typical Applications- • Brewing water
- • Wort transfer
- • Alcohol measurement
Common Construction Options
- Body materials: SS316
- Connections: Tri-clamp
- Rotor – ANC 21, Duplex SS
- Bush – TC & PTFE, PEEK
- Shaft - TC & Duplex SS
- Pick Off Sensor – Magnetic and Hall Sensor
- Outputs: Pulse, 4–20 mA, Modbus, Display-integrated or Remote
- Sizes: From 1/2” to 8” (and higher for special designs)
Selection Tips
- Fluid type & viscosity
- Flow range (min/max)
- Operating pressure & temperature
- Required accuracy & chemical compatibility
- Output signal / integration needs
Advantages of TCF Turbine Flowmeters
- High measurement accuracy
- Fast response time
- Suitable for clean low-viscosity liquids
- Reliable performance for continuous operation
- Durable construction for industrial environments
