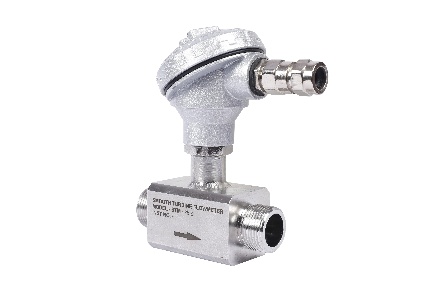

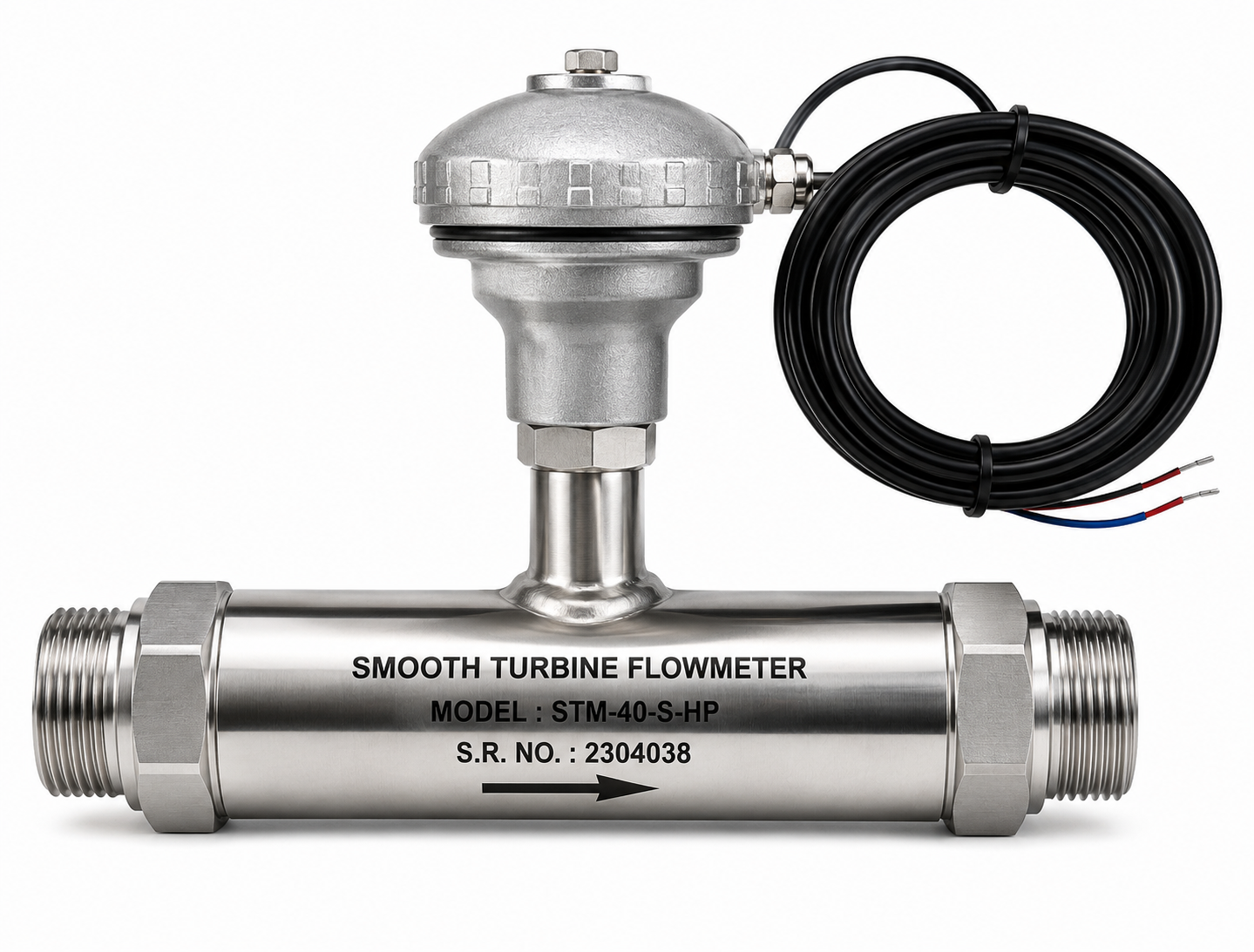

HP Series
Hydraulic Turbine Flowmeters
A Hydraulic Turbine Flowmeter is a precision flow-measuring device designed specifically for high-pressure hydraulic lines.

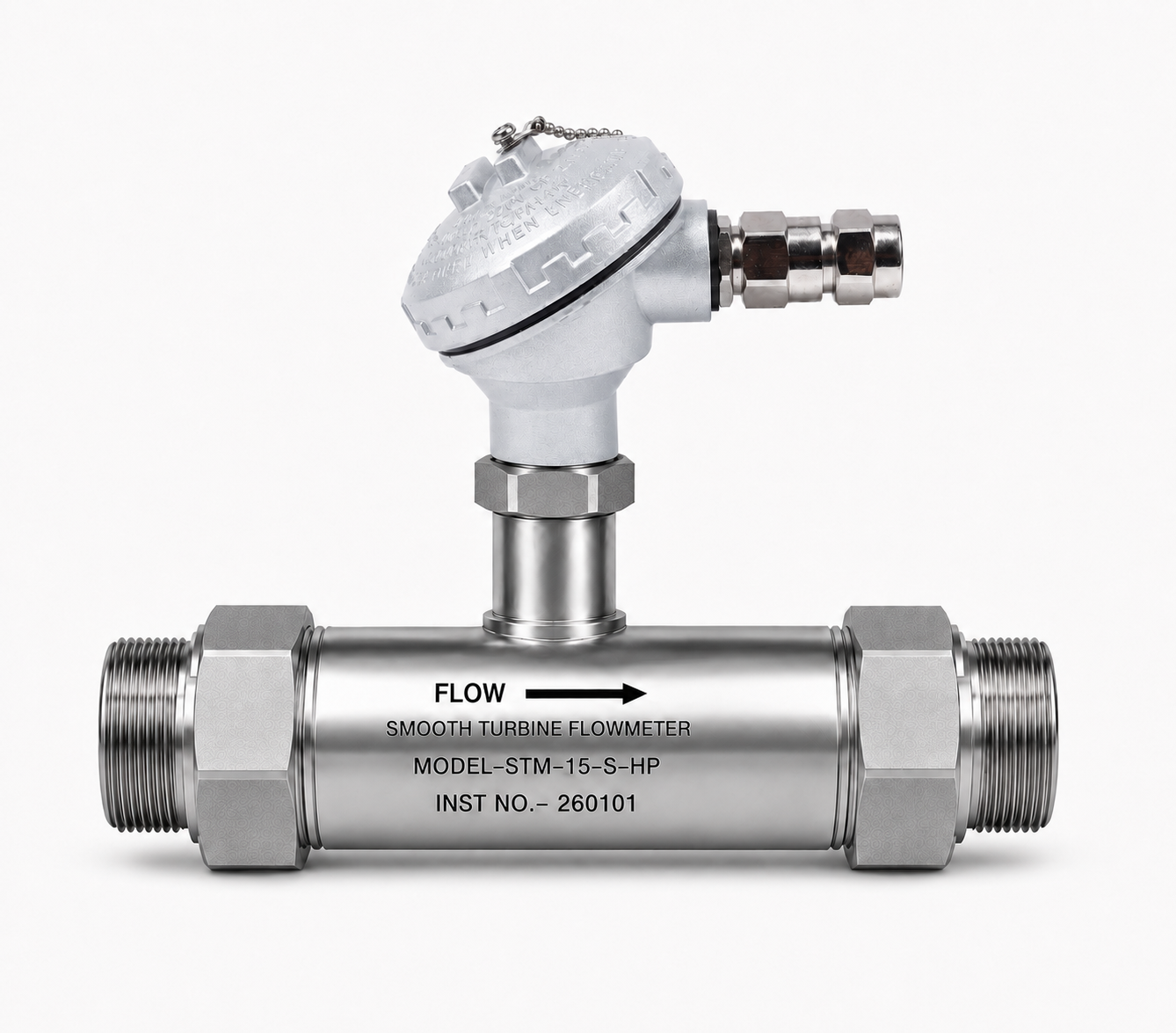

HP Series
Turbine flowmeters for demanding liquid measurement applications in modern fluid technology.
Characteristics
- Measuring range: 2 to 600 LPM
- Media temperature: -40 … 150 °C
- Maximum pressure: … 350 bar & 420 Bar
Key Advantages
- High Accuracy: ±0.5% to ±1% of reading
- Wide Flow Range: Suitable for low to high flow applications
- High Pressure Capability: Ideal for hydraulic systems
- Robust Construction: Stainless steel / alloy steel bodies
- Low Pressure Drop: Efficient flow with minimal energy loss
- Fast Response Time: Suitable for dynamic flow measurement
- Pulse / Analog Output: Compatible with PLC, DCS, SCADA systems
- Long Service Life: Low maintenance and stable calibration
Key Application Segments
- Construction & Earth-moving Equipment Manufacturers
- Hydraulic Power Pack Manufacturers
- Hydraulic Cylinder & Component Manufacturers
- Automotive, Tractor & Engine Testing
- Industrial Machinery & OEM Integrators
- Oil & Gas Support Industries
- Testing Laboratories & Calibration Centers
- Service & Field Maintenance Teams

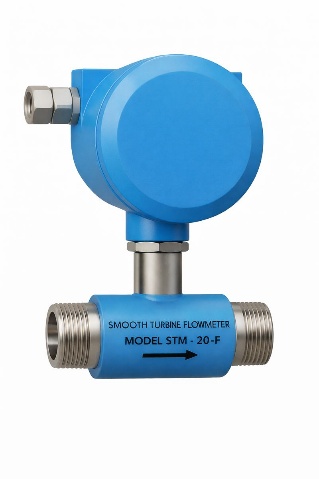

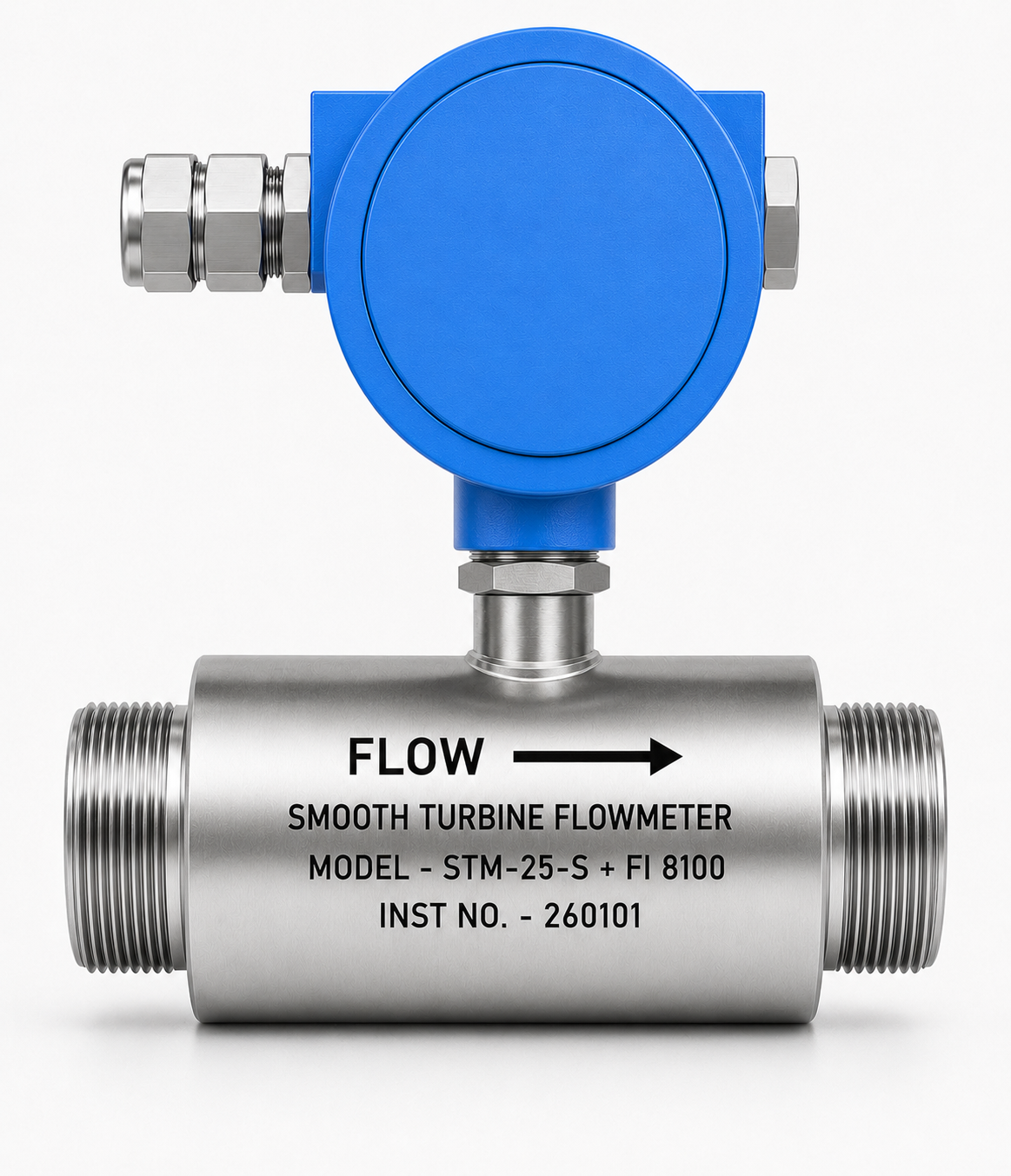

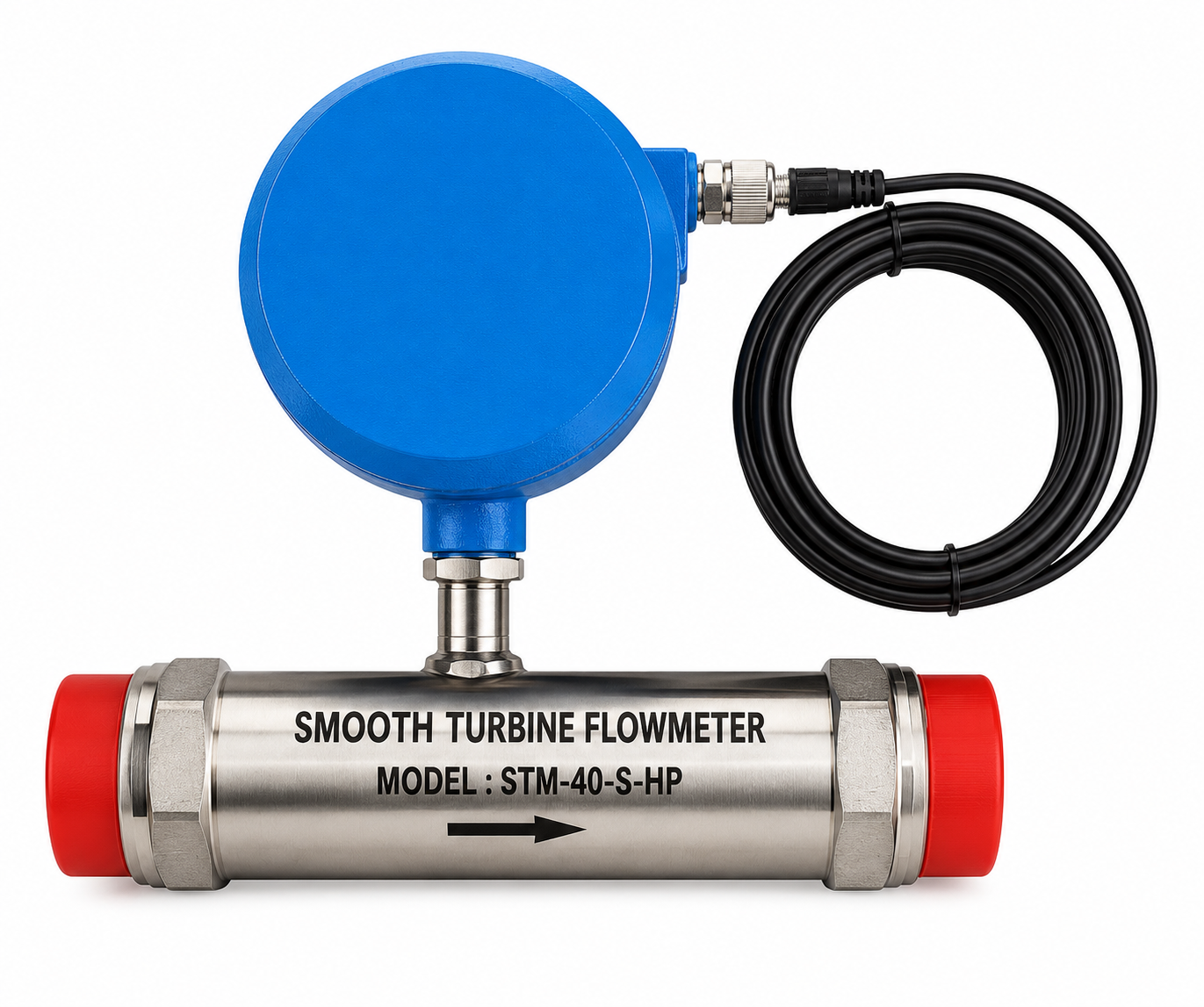

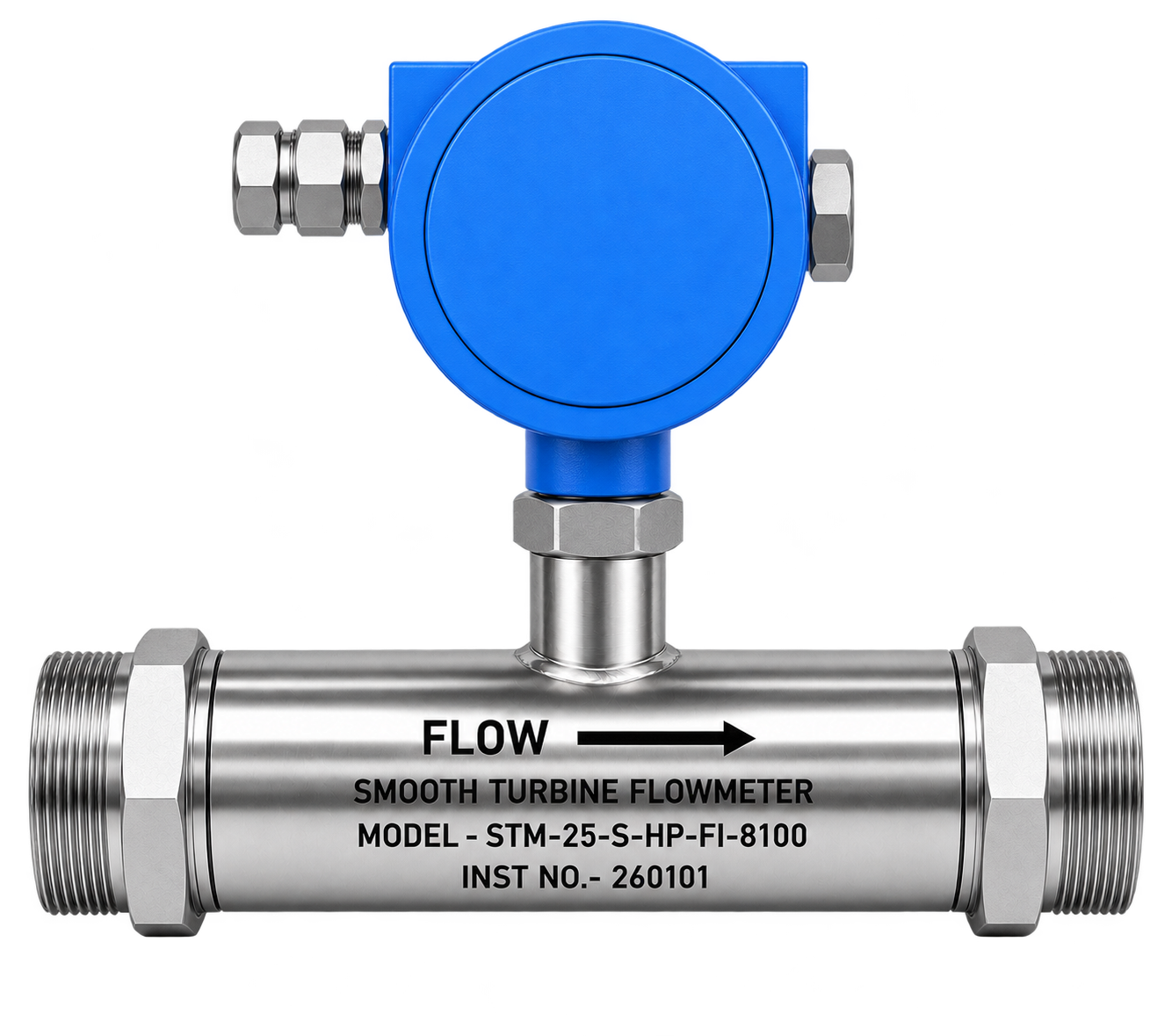

HP with Analogue Output
Integrated signal conversion for smooth processing of turbine frequency output into standard analog signals.
Characteristics
- Measuring range: 2 to 600 LPM
- Media temperature: -30 … 60°C & 150°C
- Maximum pressure: … 350 bar

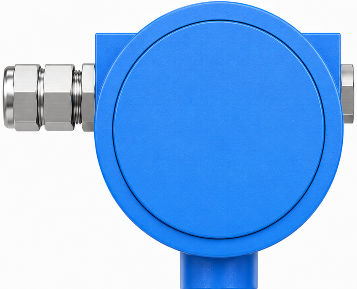

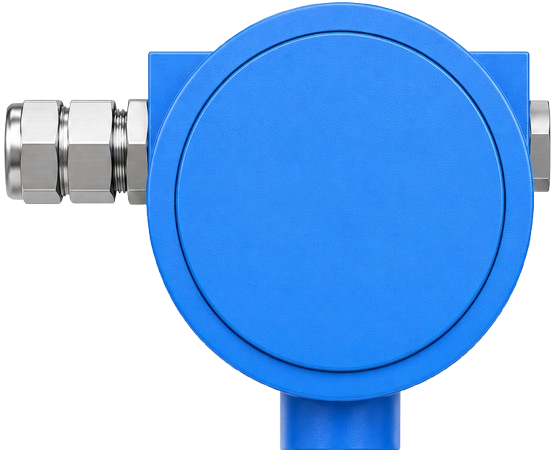

F/I Current Transmitter
- Model – FI-8100, FI-8200
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

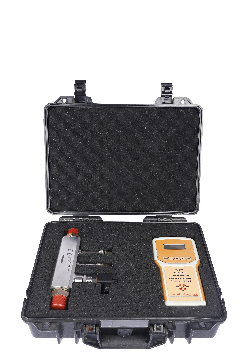

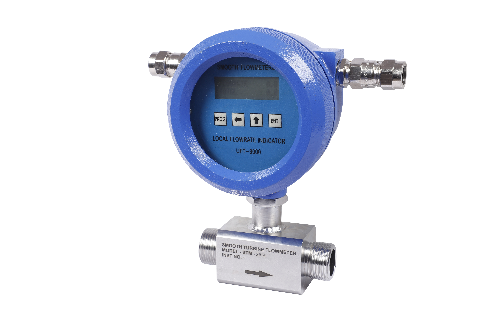

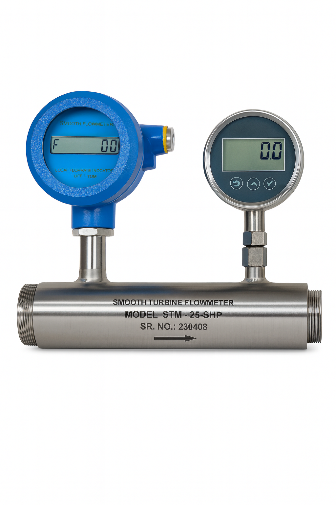

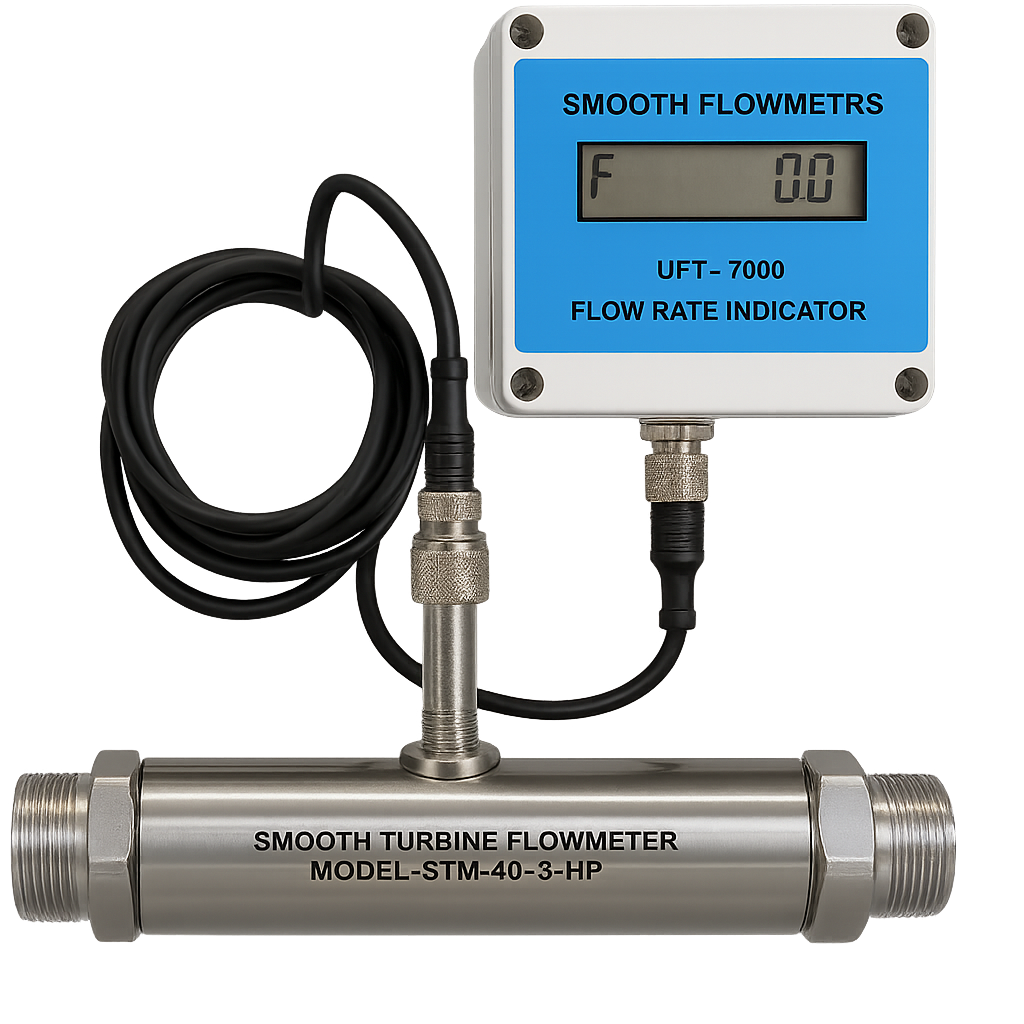

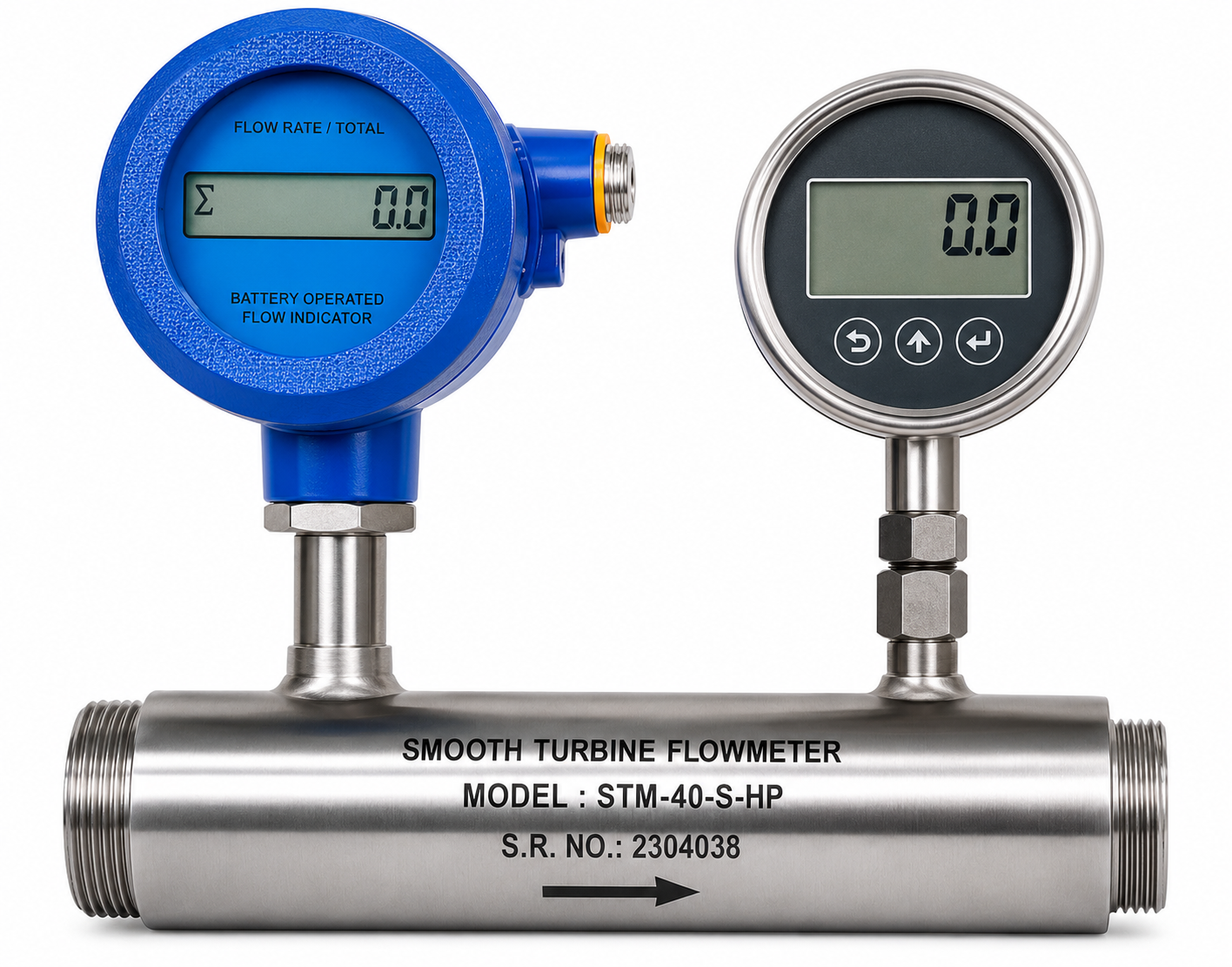

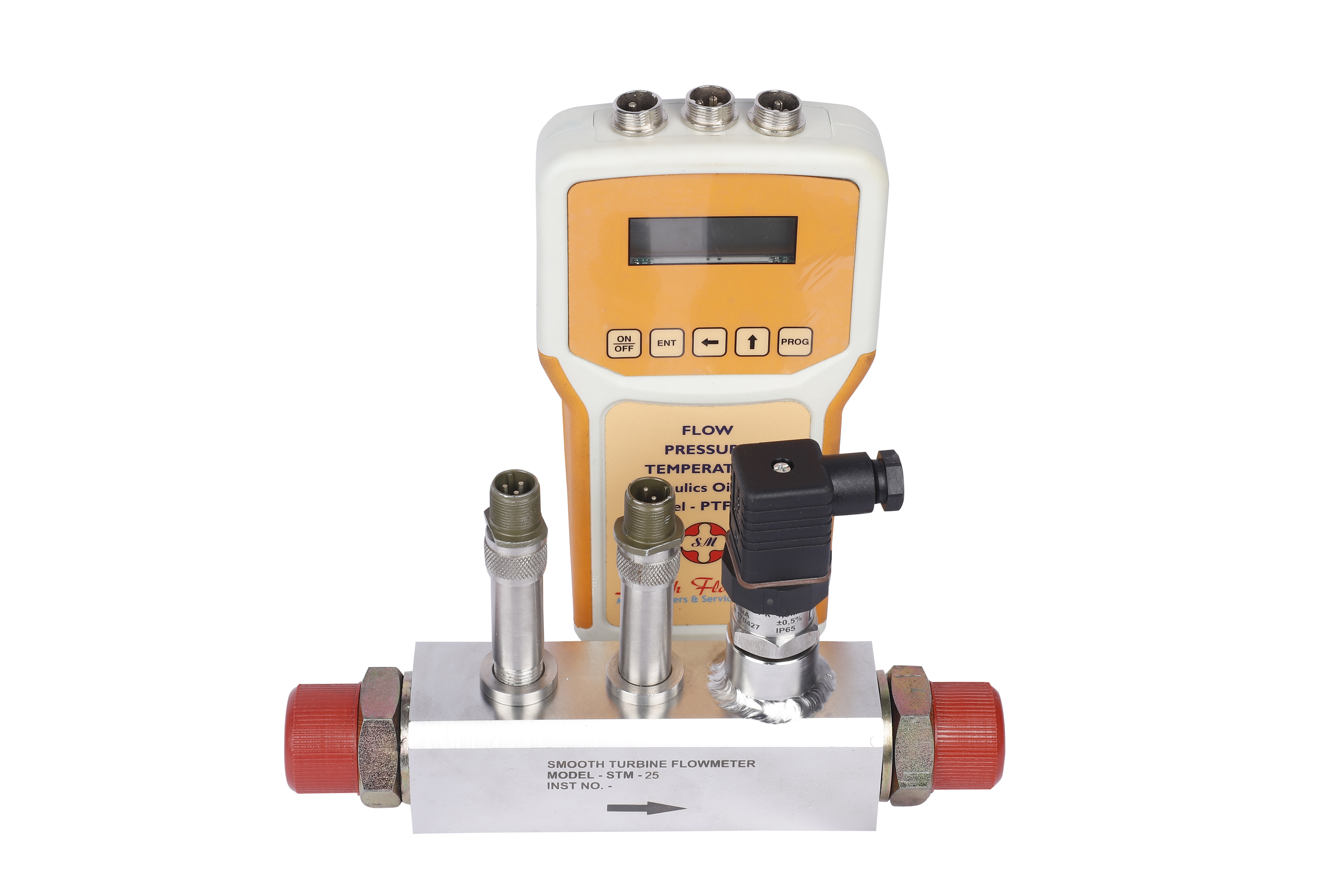

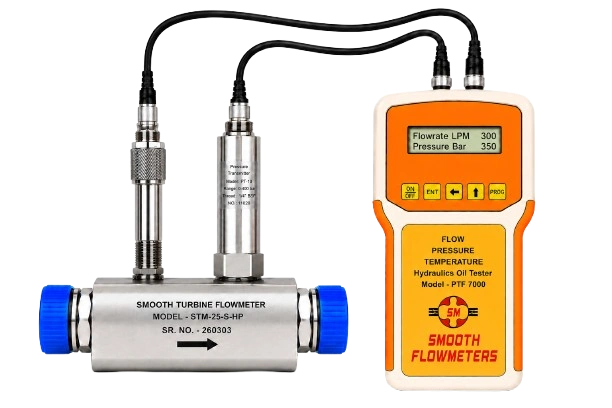

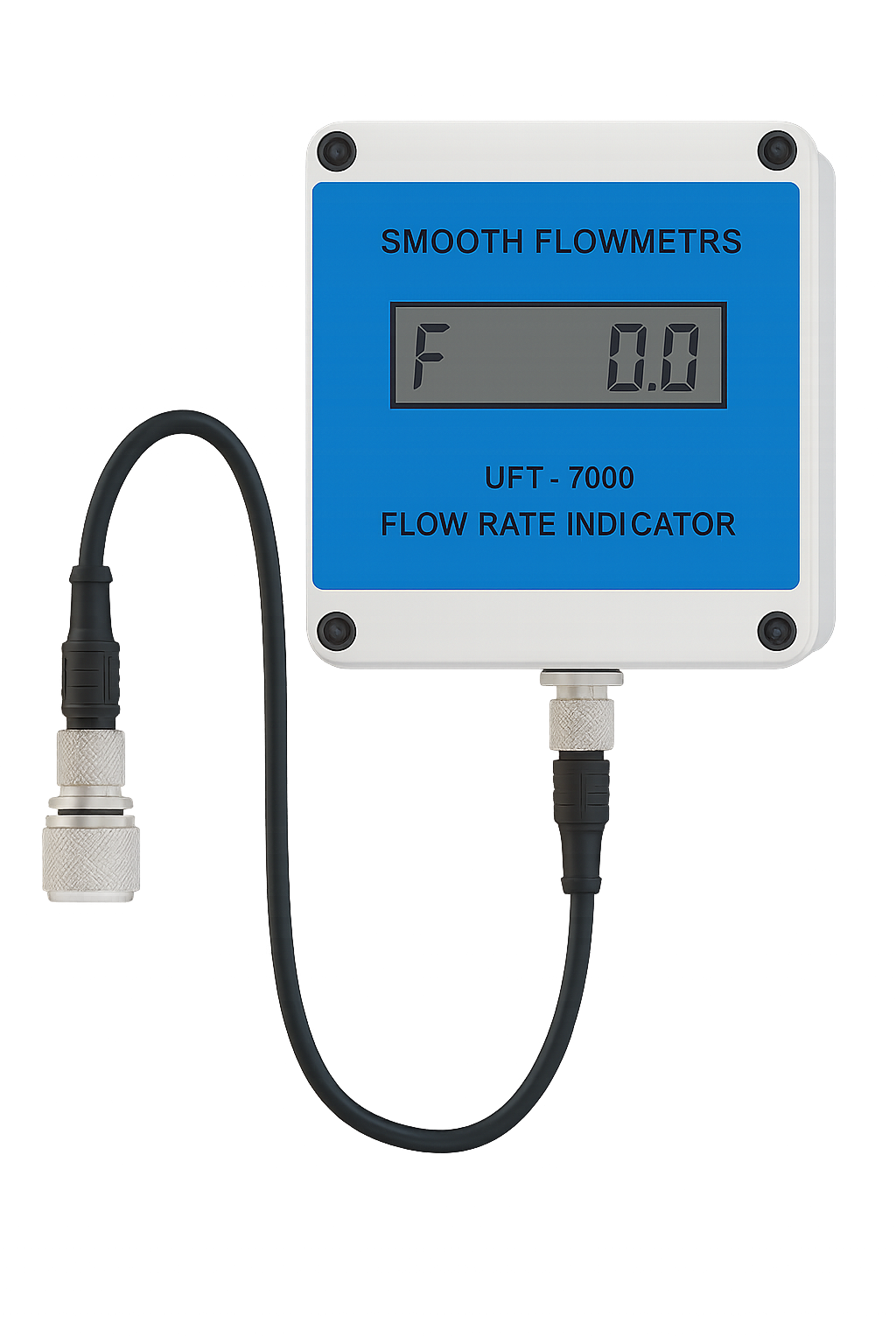

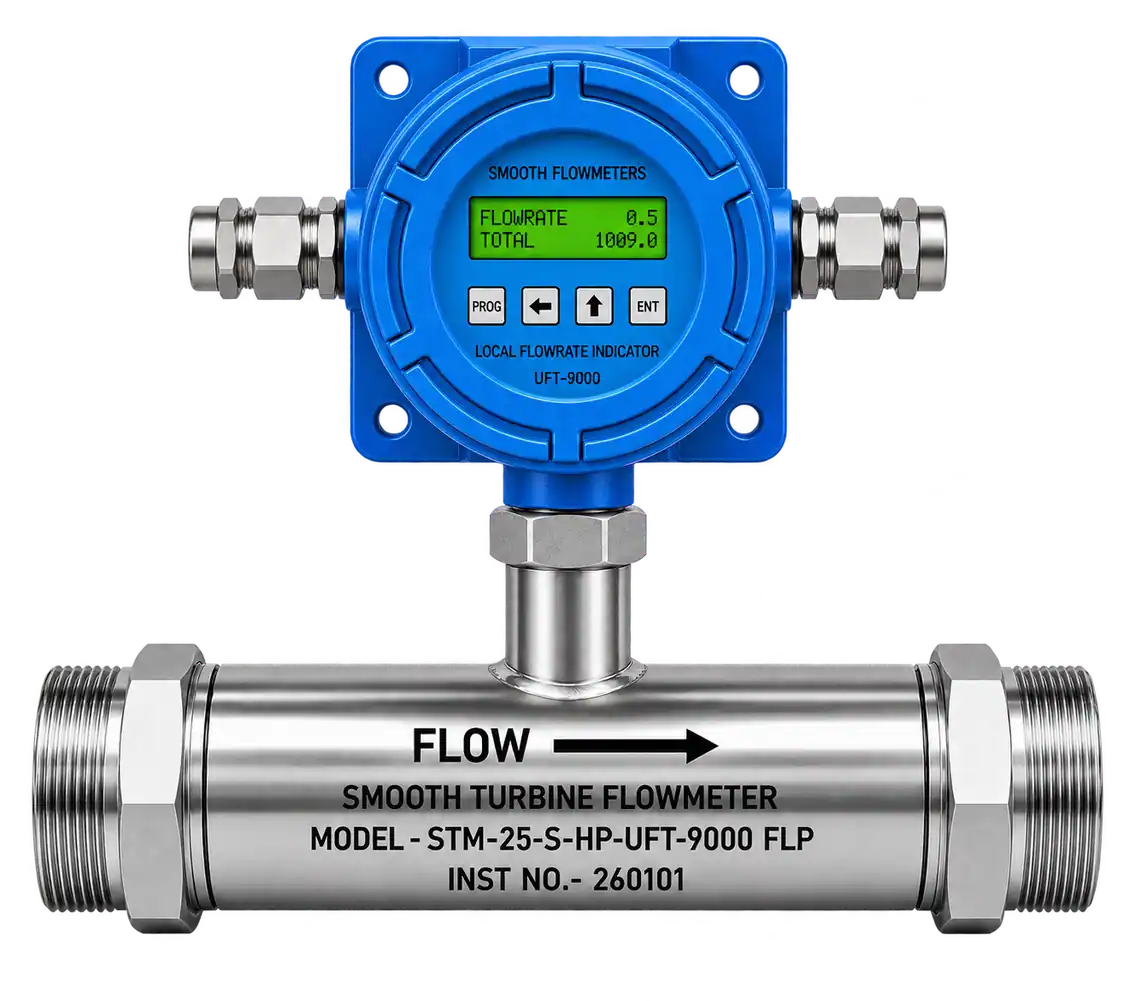

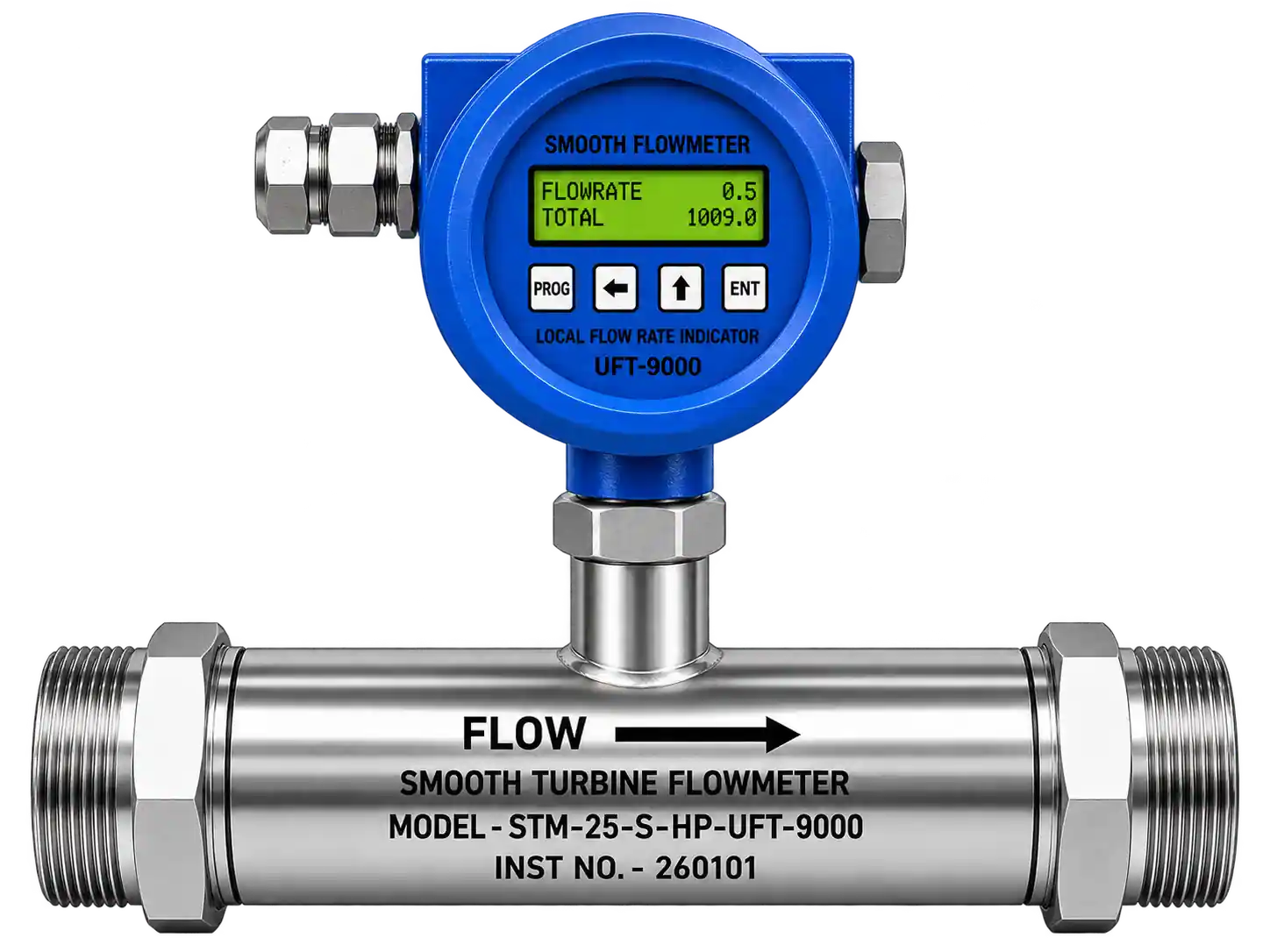

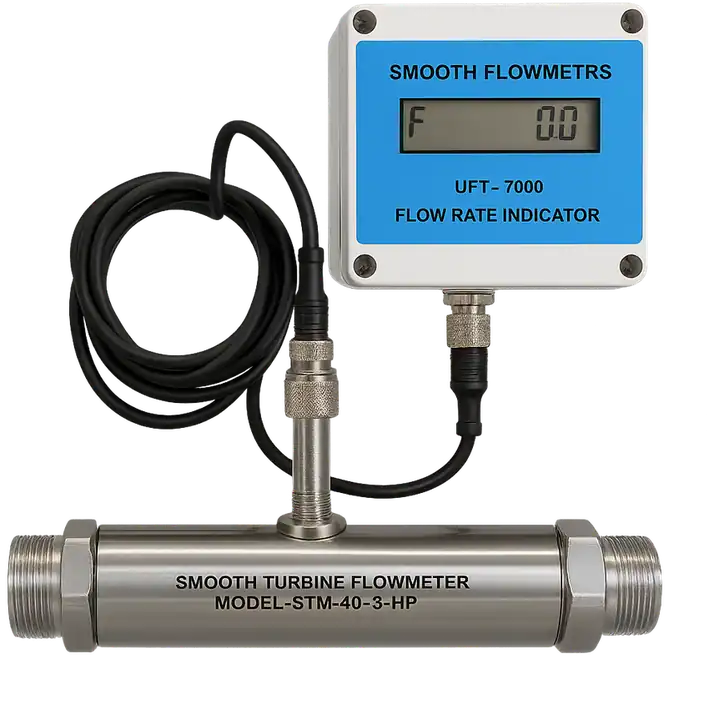

HP with Meter Mounted/handheld Battery-Operated Flow Indicator
Meter mounted and handheld battery-operated flow indication for local hydraulic flow measurements.
Characteristics
- Measuring range: 2 to 600 LPM
- Media temperature: -30 … 60°C
- Maximum pressure: … 350 bar
Meter Mounted Display Unit
- Model – UFT 7000 & UFT 9000 & 7000 PTF
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66
- Power Supply – 24 VDC & Battery Operated

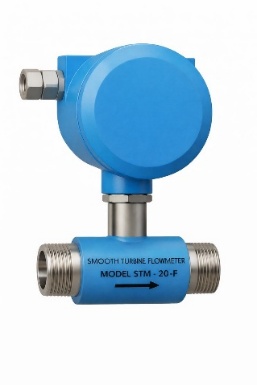

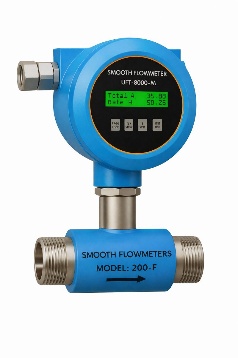

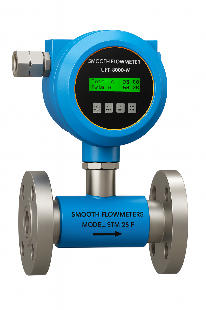

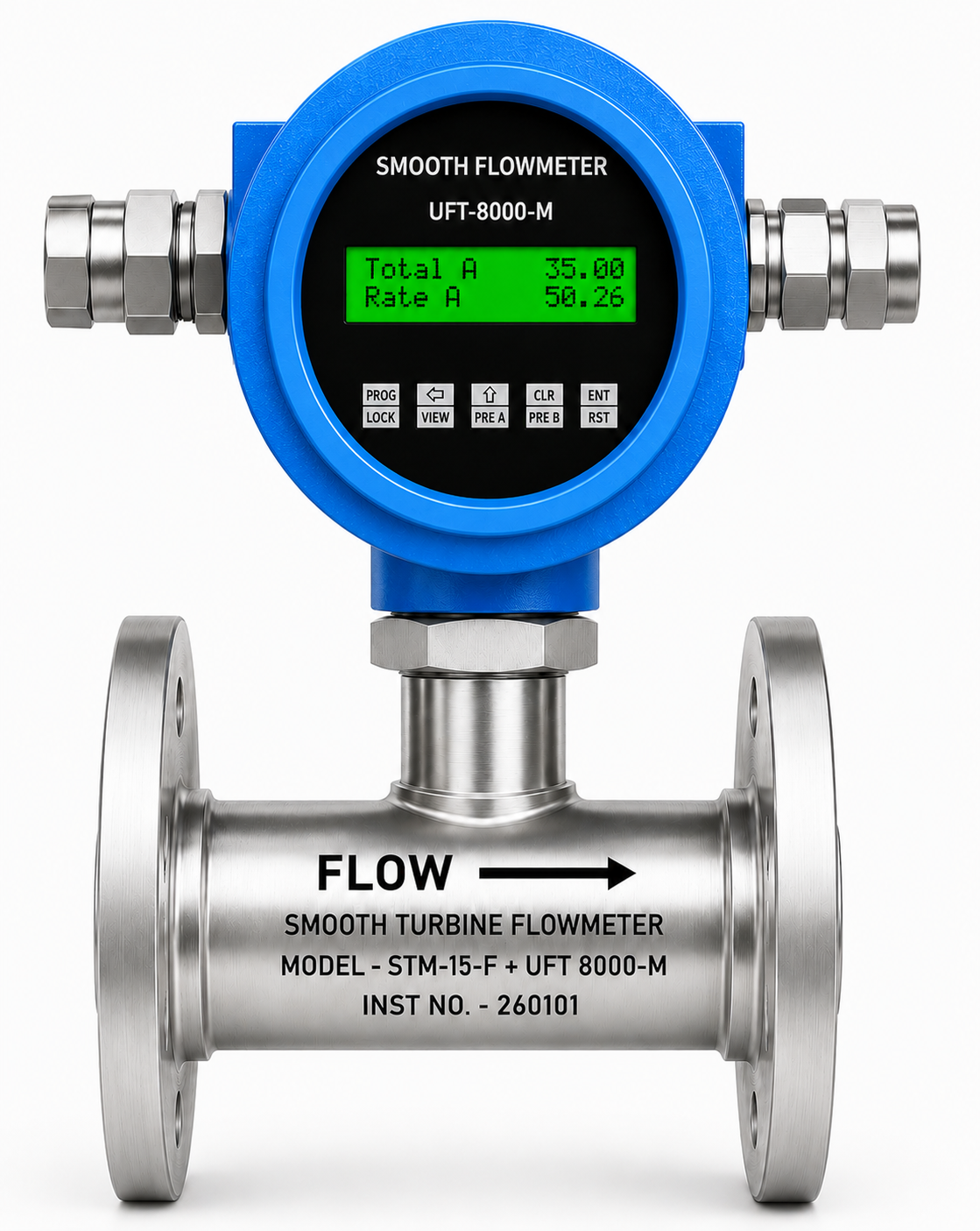

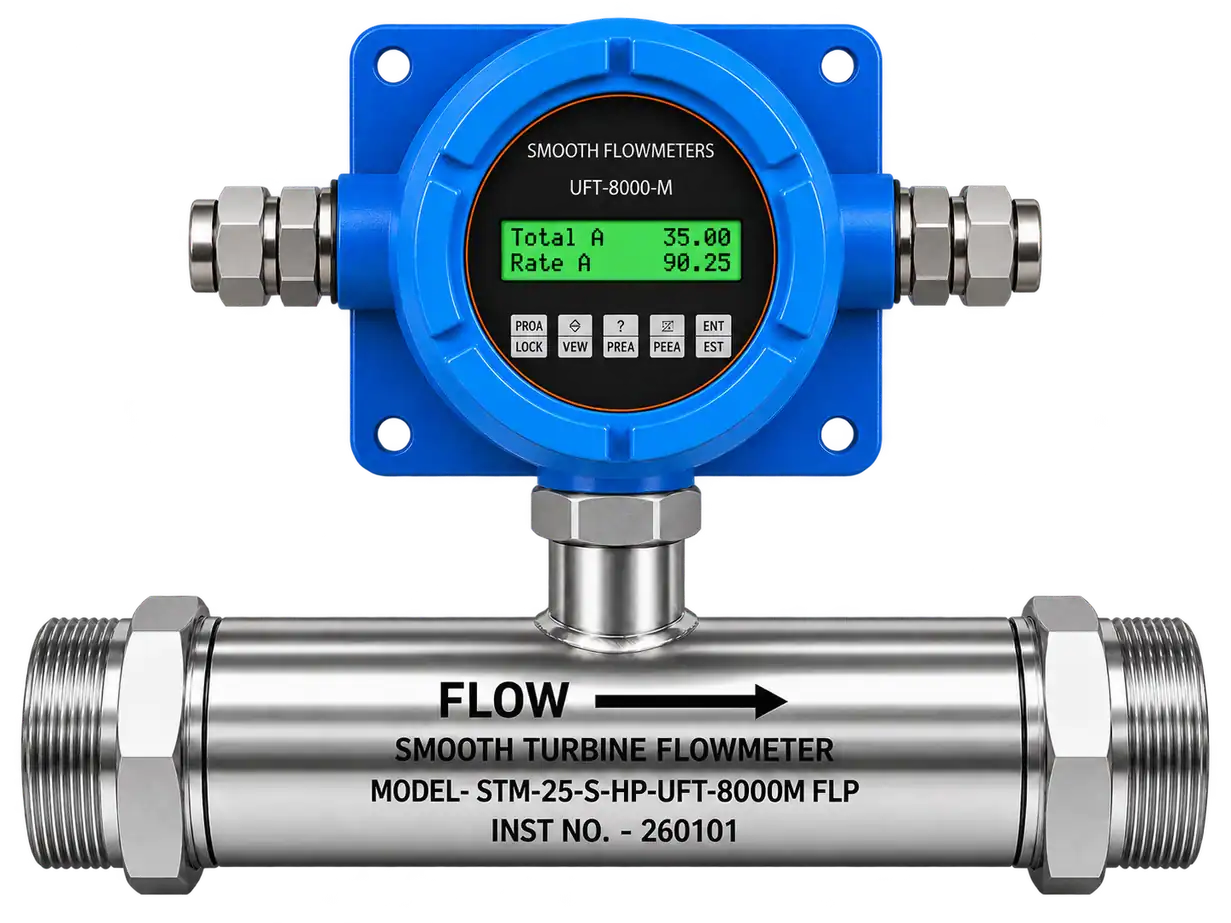

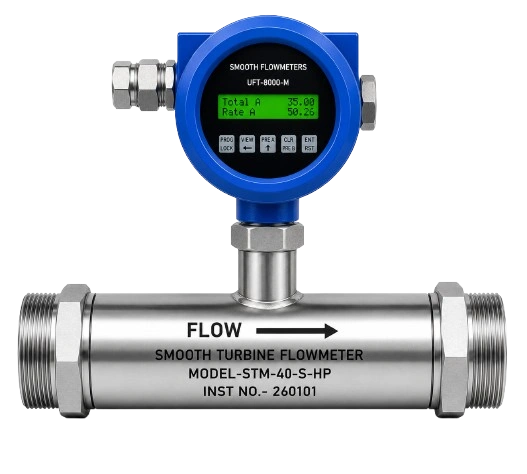

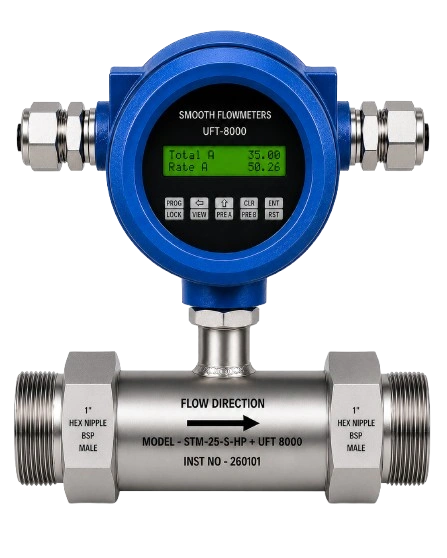

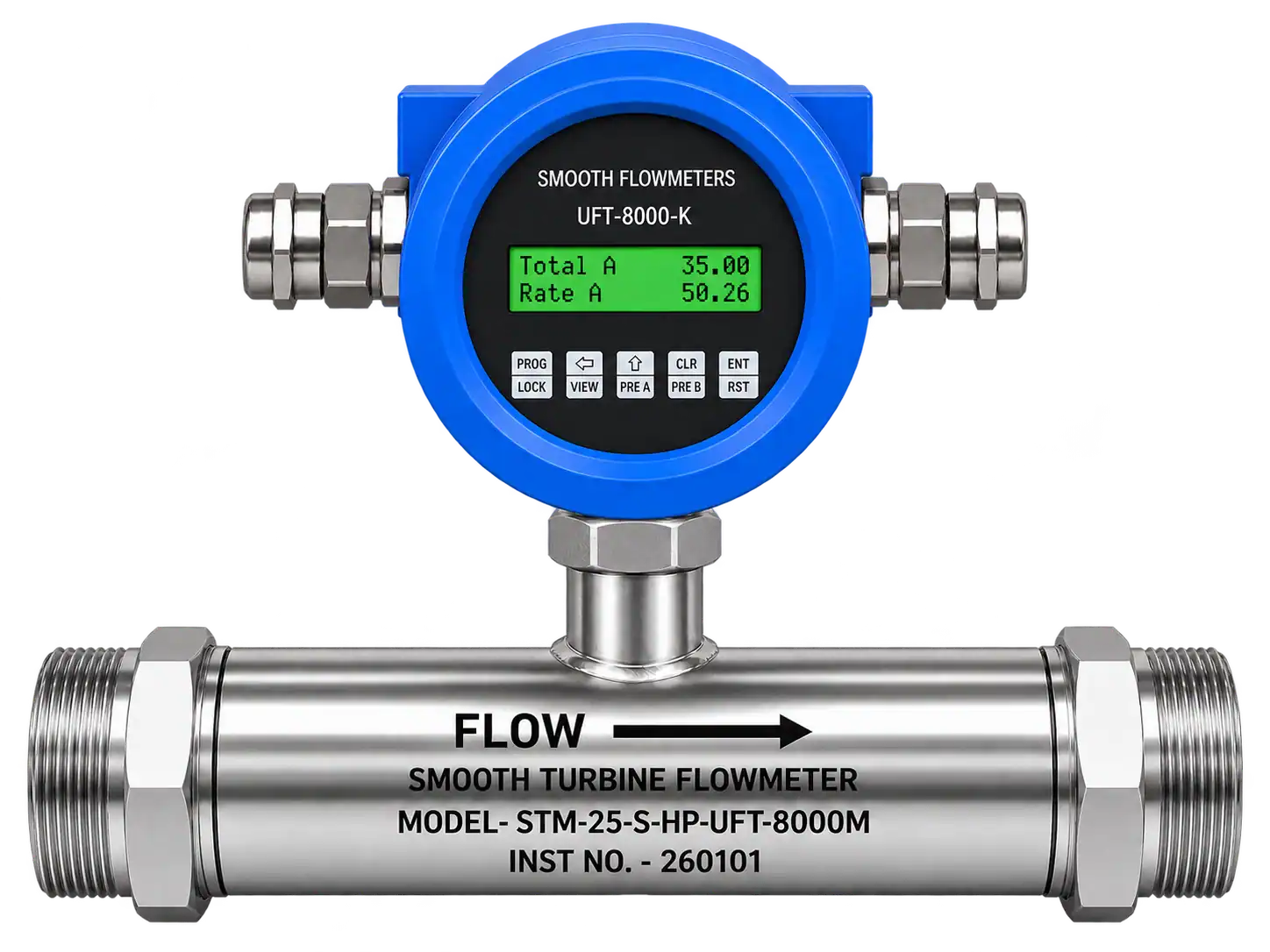

HP with Meter Mounted Flow Indicator 24VDC Operated
Industrial-grade loop powered indicator and display unit for integration with automated monitoring systems.
Characteristics
- Measuring range: 2 to 600 LPM
- Media temperature: -30 … 60°C
- Maximum pressure: … 350 bar

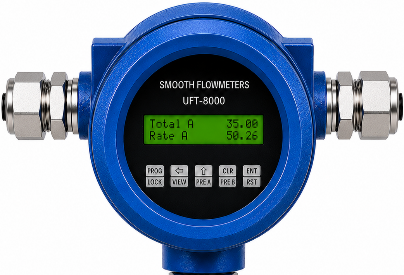

Meter Mounted Display Unit
- Model – UFT 8000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

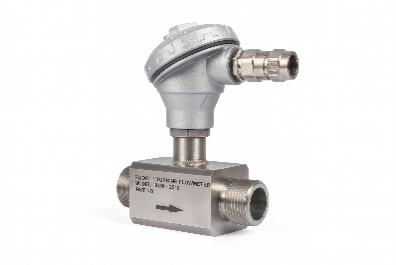

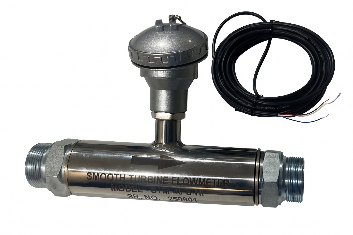

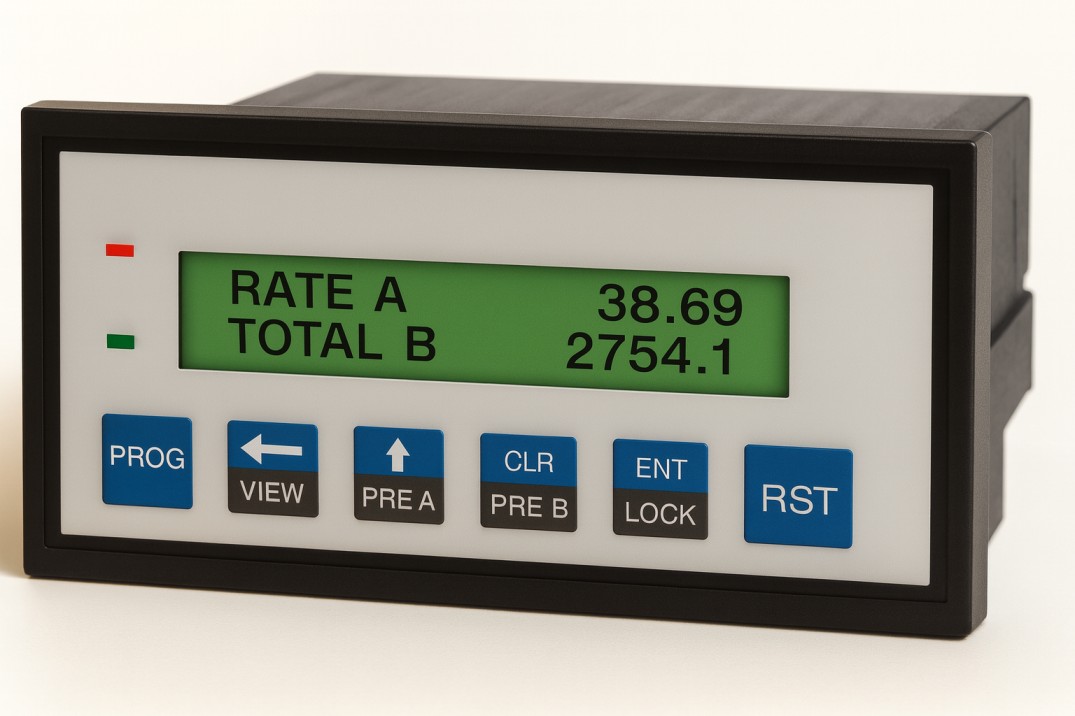

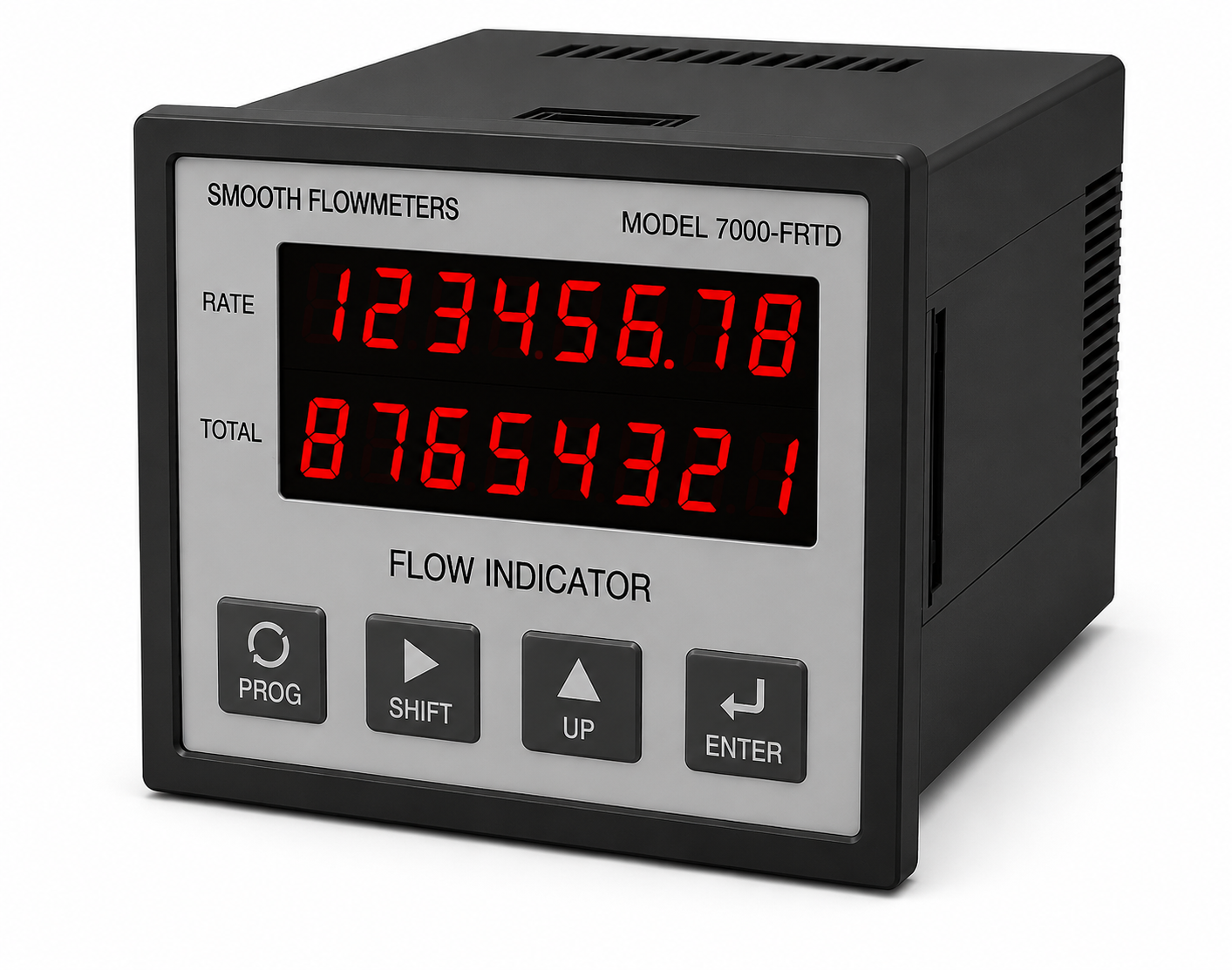

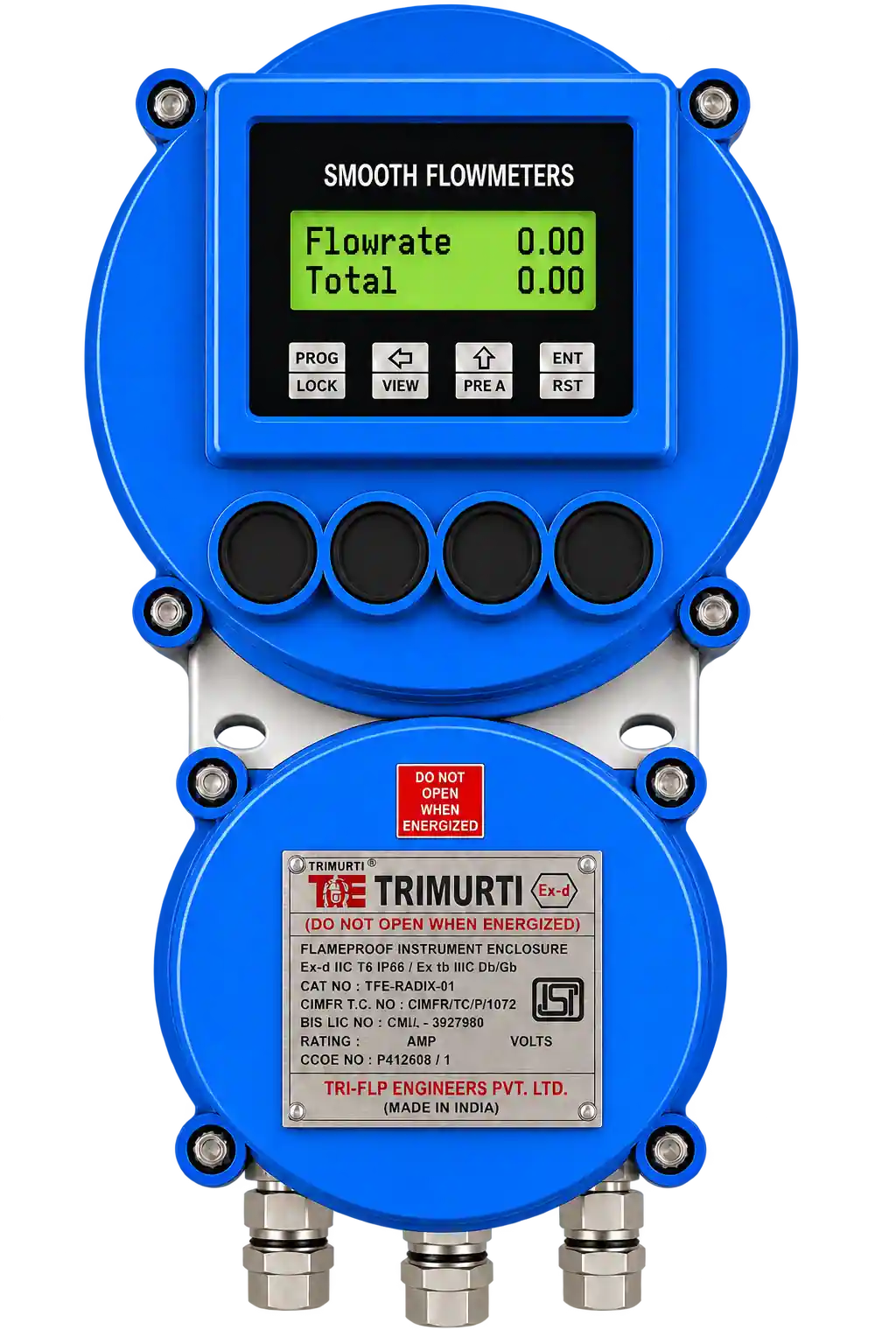

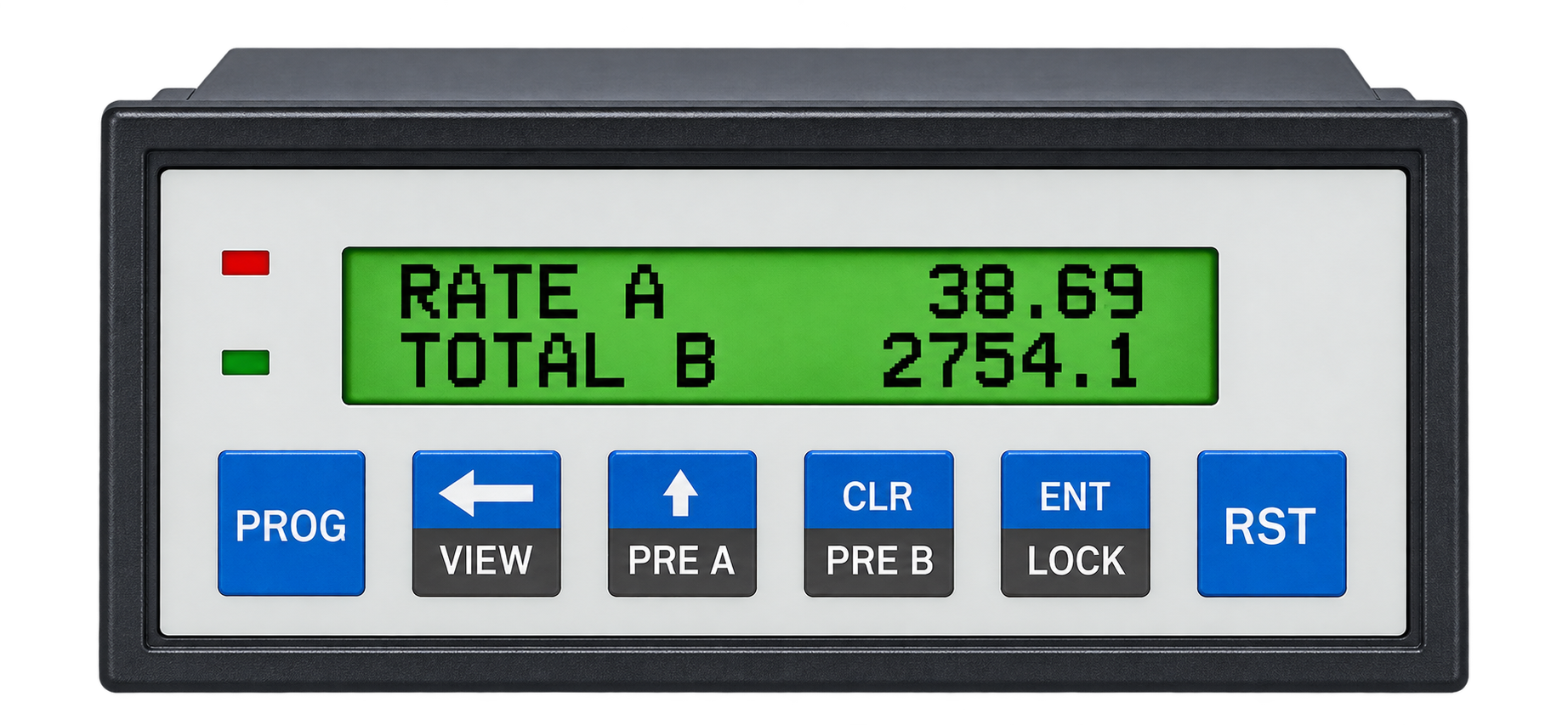

HP with Panel Mounted Flow Indicator 230VAC Operated
Panel mounted high-visibility flow controller and indicator for laboratory, testing, and central control panels.
Characteristics
- Measuring range: 2 to 600 LPM
- Media temperature: -30 … 60°C & 150°C
- Maximum pressure: … 350 bar

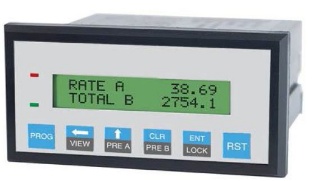

Panel Mounted Display Unit
- Model – FRT 7000
- Output – 4-20mA
- Serial Communication – RS 232
- Power Supply – 230 VAC or 24 VDC
Datasheet Download
Download the product datasheet for technical specifications.
HP Series Datasheet
Download the datasheet for this product.
Industry-wise Applications of Hydraulic Turbine Flowmeters
Hydraulic Turbine Flowmeters are designed to measure the flow of hydraulic oils, lubricants, fuels, and other clean low-viscosity liquids with high accuracy and reliability. These flowmeters are widely used in industrial applications where precise monitoring of fluid flow is essential for system performance and process control.
Smooth Flowmeters Hydraulic Turbine Flowmeters are engineered to provide stable measurement, fast response, and durable performance in demanding industrial environments.
Hydraulic turbine flowmeters are commonly used in hydraulic systems and machinery to monitor fluid circulation and maintain system efficiency.
Typical Applications- • Hydraulic oil flow monitoring in power units
- • Flow monitoring in hydraulic test benches
- • Lubrication systems in industrial machinery
- • Hydraulic fluid monitoring in heavy equipment
Automobile manufacturing plants use hydraulic systems in production lines, presses, and testing equipment.
Typical Applications- • Hydraulic oil monitoring in automotive presses
- • Flow monitoring in vehicle testing systems
- • Lubrication system monitoring in manufacturing equipment
Hydraulic turbine flowmeters are used to monitor clean petroleum products and lubricants in oil and gas operations.
Typical Applications- • Fuel oil monitoring systems
- • Lubricating oil measurement in machinery
- • Diesel and light fuel oil monitoring
- • Oil transfer systems
Power plants rely on hydraulic turbine flowmeters to monitor lubricating oils and cooling liquids used in turbines and generators.
Typical Applications- • Turbine lubrication systems
- • Cooling oil monitoring in generators
- • Fuel monitoring systems in power stations
Steel plants and heavy manufacturing facilities require accurate monitoring of hydraulic oils used in heavy machinery.
Typical Applications- • Hydraulic systems in rolling mills
- • Lubrication systems in industrial equipment
- • Cooling oil systems in production machinery
Hydraulic turbine flowmeters are used in defence and aerospace facilities for fuel and hydraulic system monitoring.
Typical Applications- • Aviation fuel flow monitoring
- • Hydraulic system testing
- • Fuel transfer systems in defence facilities
Common Construction Options
- Body materials: SS316
- Connections: BSP/NPT threaded
- Rotor – ANC 21, Duplex SS
- Bush – TC & SS hybrid ball bearing
- Shaft - TC & Duplex SS
- Pick Off Sensor – Magnetic and Hall Sensor
- Outputs: Pulse, 4–20 mA, Modbus, display-integrated or remote
- Sizes: 12mm to 50mm (and higher for special designs)
Selection Tips
- Fluid type & viscosity
- Flow range (min/max)
- Operating pressure & temperature
- Required accuracy
- Output signal / integration needs
Advantages of Hydraulic Turbine Flowmeters
- High measurement accuracy
- Fast response time
- Compact and robust design
- Suitable for clean low-viscosity liquids
- Reliable performance in industrial environment
