Gear type flow meters

admin — Wed, 21 Jan 2026 10:22:50 +0000

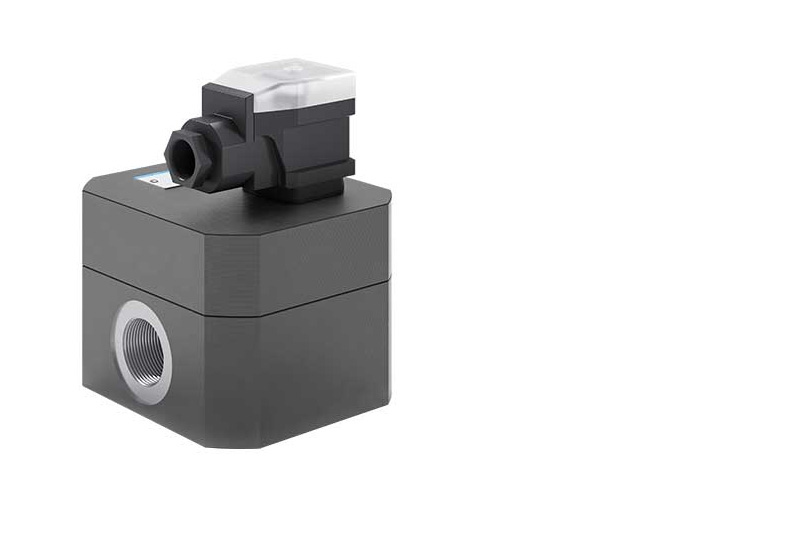

Gear type flow meters VC

HIGHLY PRECISE AND ROBUST

Gear type flow meters for the most demanding tasks in fluid technology measurement technology. Our expertise guarantees functional solutions. Standardized and application-optimized.

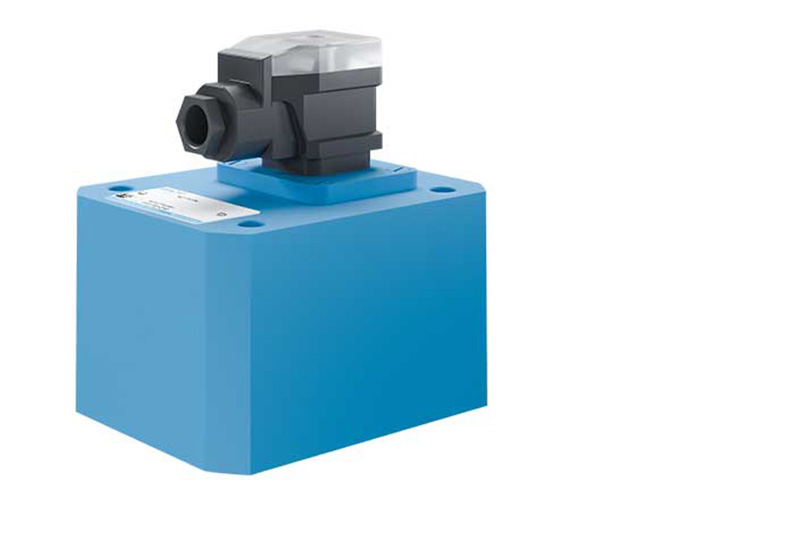

GEAR TYPE FLOW METERS VC

Application-optimized specifications with differing clearances, bearing variants and materials.

CHARACTERISTICS

APPLICATIONS

Fuel consumption measurement
Characteristic curve generation of hydraulic components
Gear oil filling
Indirect, volumetric cylinder stroke measurement
Ratio measurement in 2- and multi-component dosing systems
Micro-flow measurement and micro-dosing

PRODUCT CHARACTERISTICS

High-precision measurement with outstanding reproducibility
Wide measuring ranges with sizes graduated to meet specific requirements
Application-optimized specifications
Low pressure drop
Any flow direction
No flow conditioners necessary
Wide temperature range
High working pressure
Low noise emission
High-response measurement
Electronics in EMC compliant design
RoHS compliant

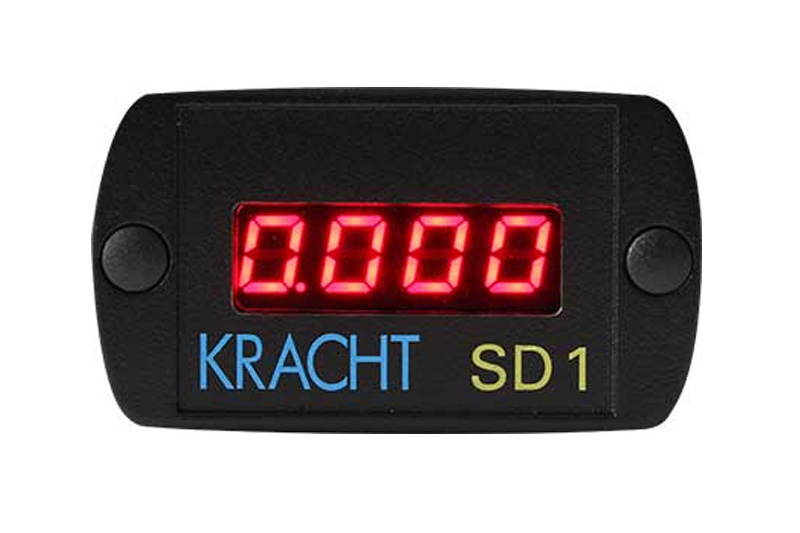

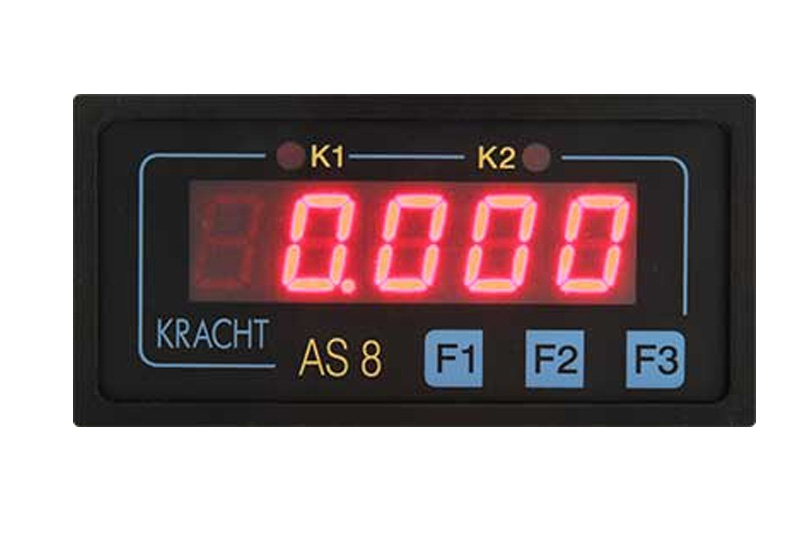

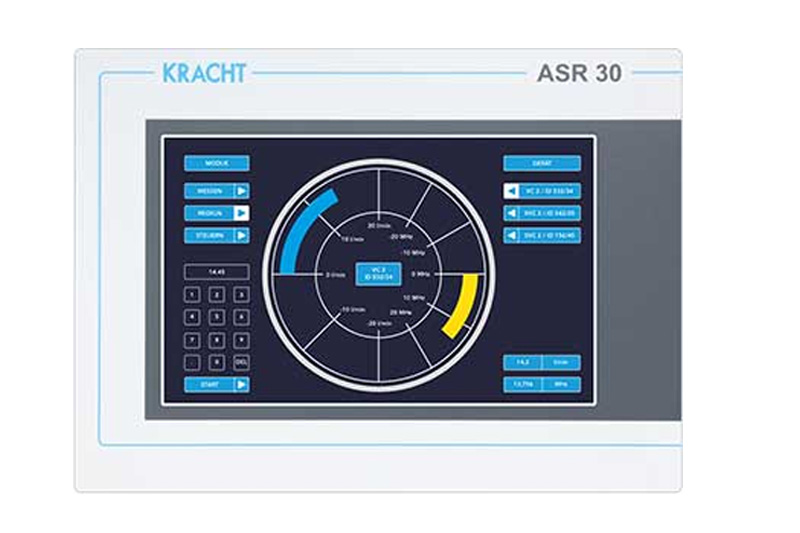

Options

data sheets

contact

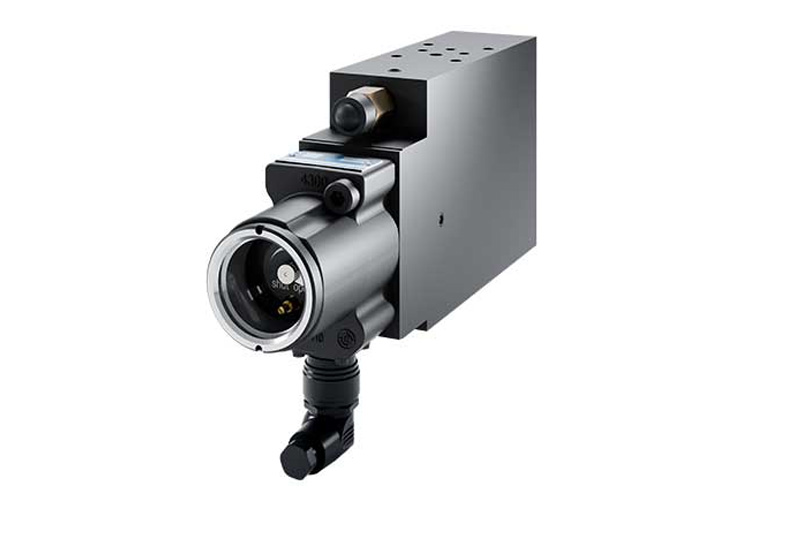

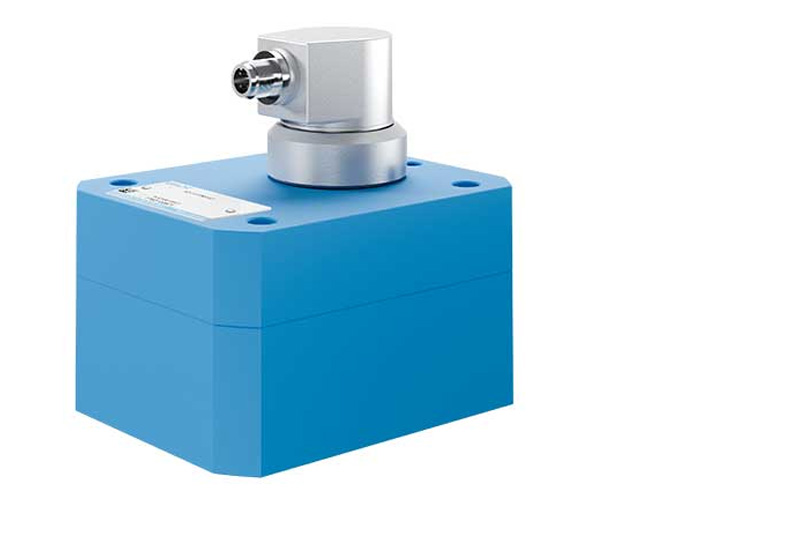

GEAR TYPE FLOW METERS VC WITH ENCODER

With maximised measured value resolution for high-precision measurements in process and test bench technology.

CHARACTERISTICS

APPLICATIONS

PRODUCT CHARACTERISTICS

data sheets

contact

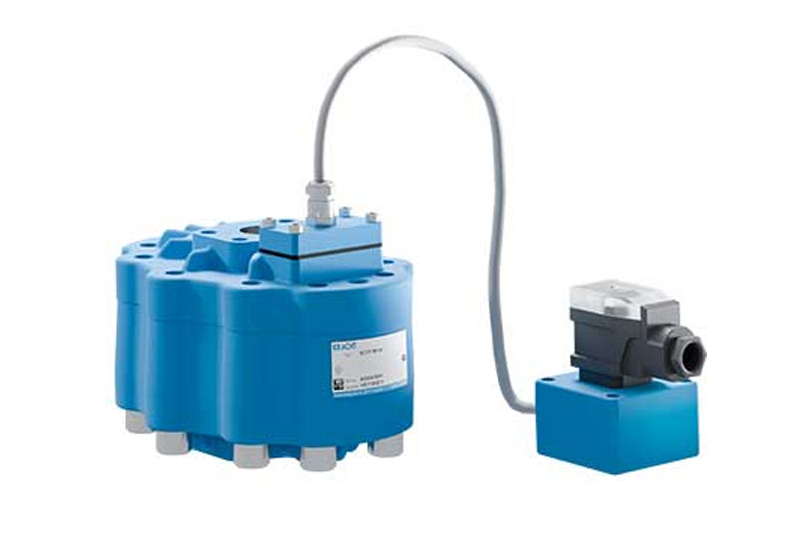

GEAR TYPE FLOW METERS VC WITH IO-LINK TECHNOLOGY

Signal conversion with internal calculation of measured values.

CHARACTERISTICS

APPLICATIONS

PRODUCT CHARACTERISTICS

Download

Data sheets

contact

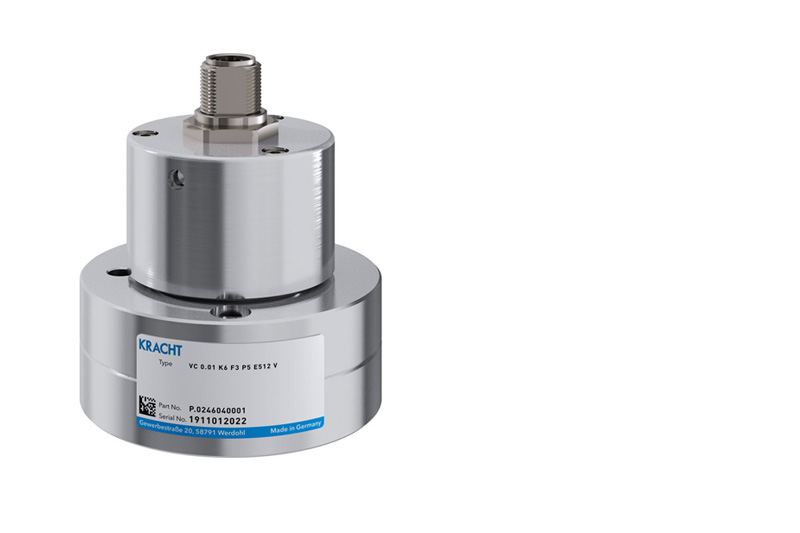

GEAR TYPE FLOW METERS VC 0.01

The world’s smallest gear type flow meter accurately measures volume flows from 0.5 ml/min. The VC 0.01 is easily capable of measuring very small volumes and micro-doses of media with viscosities from 0.8 mm²/s.

CHARACTERISTICS

APPLICATIONS

PRODUCT CHARACTERISTICS

Any flow direction
High measuring resolution
Measurement independent of viscosity within the specified ranges
Low pressure drop
High-response measurement
Low measuring starting point
Low noise emission
Highly-accurate measurements with outstanding reproducibility
High degree of accuracy, even with low flow rates at the bottom end of the measuring range
High working reliability of the electronics

Data sheets

contact

GEAR TYPE FLOW METERS VCA

Precise flow meters made of aluminum

CHARACTERISTICS

APPLICATIONS

PRODUCT CHARACTERISTICS

Precise measurements with outstanding reproducibility
Low pressure drop
Any flow direction
No flow conditioners nesessary
Wide temperature range
High working pressure
Low noise emission
High-response measurement
Electronics in EMC compliant design
RoHS compliant

Data sheets

contact

Flowgas TM

admin — Tue, 25 Nov 2025 12:09:36 +0000

Flowgas TM

GRPSh telemetry controller

Purpose:

Flowgas TM units are designed to convert and process signals received from P, T, linear displacement, end position, and other transducers, using predefined algorithms, into control signals and digital information for subsequent transmission to higher-level control via broadband communication channels. Flowgas TM units are used as automated process control systems for telemetry monitoring and control of gas pressure regulators (GRPSh), gas pressure boosters (PGBs), and individual gas pressure regulators.

Main parameters
Why choose this product

Measurement channels:
~excess gas pressure at the GRP inlet;
~excess gas pressure at the GRP outlet of line 1;
~excess gas pressure at the GRP outlet of line 2;
~pressure drop across gas filter 1;
~pressure drop across gas filter 2;
~pressure drop across gas filter 3;
~pressure drop across gas filter 4;
~gas temperature at the GRP inlet;
~air temperature in the GRP room;
alarm sensors:
~position of the doors of the GRP process compartment;
~position of the shut-off valves of gas pressure regulators 1…4.

Temperature of the measured medium,
from -40 to +50°C
Relative error of the gas temperature measurement channel ± 0.5/1.0%
Absolute error of the ambient temperature measurement ± 1.0 °C
Relative error of the pressure measurement channel ± 0.5/1.0%
Relative error of the differential pressure measurement channel
± 0.5/1.0/1.5%
Inter-verification interval, 6 years
Integration into IUS-Tsifra

Flowgas-T

admin — Tue, 25 Nov 2025 12:03:39 +0000

Flowgas-T

Electronic gas volume correctors

Purpose:

The FLOUGAZ-T gas volume corrector is designed to adjust the temperature of the working volume of gas passing through the gas meter to standard conditions in accordance with GOST 2939-63 (+20°C and 101325 Pa) with a constant pressure. It is used in utility facilities with pipeline gas pressures no higher than 0.1 MPa.

Main parameters
Why choose this product

Ambient temperature: from -40°С to +60°С Temperature of the measured medium: from -30°С to +60°С Limits of permissible relative error: ~bringing the measured working volume of gas to standard conditions ± 0.5% ~calculating the volume of gas brought to standard conditions does not exceed ± 0.05% Dust and moisture protection: IP66 Explosion protection: 1Ex ib IIC T X Method of calculating the compressibility factor: according to GOST 30319.2-2015, GOST 30319.3-2015, using the equation of state AGA8 (International standard ISO 20765-1:2005) Archives: ~Hourly archive no more than 3 months ~Daily archive no more than 370 days ~Monthly archive no more than 36 months ~Archive of emergency situations 800 entries ~Change archives 800 entries

High metrological stability Connection to any ASKUG Installation on any type of meter Simultaneous operation of two independent RS-232 interfaces and an optical port Optional – complete with an absolute/gauge pressure sensor Autonomous power supply for 6 years Inter-verification interval of 6 years

Flowgas

admin — Tue, 25 Nov 2025 11:57:44 +0000

Flowgas

Electronic gas volume correctors

Purpose:

Flowgas gas volume correction units are designed to convert the working volume of natural gas (GOST 5542), free petroleum gas (GOST R 8.615), and other gases passing through the gas meter to standard conditions based on measured pressure, temperature, and the calculated gas compressibility factor. Applications include commercial and process gas metering at gas distribution stations and gas distribution points of industrial enterprises and public utilities.

Main parameters
Why choose this product

Methods for calculating the compressibility factor:
~natural gas according to GOST 30319.2-2015, GOST 30319.3-2015, using the equation of state AGA8 (International Standard ISO 20765-1:2005);
~free petroleum gas, nitrogen, air, carbon dioxide, inert gases using GSSSD data
Relative error:
~pressure measurement channel does not exceed ±0.4%
~temperature measurement channel does not exceed ±0.1%
~differential pressure measurement channel ±0.25%
~correction coefficient does not exceed ±0.5%
~calculation of gas volume reduced to standard conditions ±0.05%
Operation at pressures up to 10 MPa
Operation in the temperature range from -40°C to +60°C
Gas temperature measurement range from -30°C to +60°C
Explosion protection 1Ex ib IIC T4 X
Dust and moisture protection: IP66

Compatibility with all types of meters that have a LF/HF pulse output
Calibration of the pressure measurement channel in the range of 1:11
Increased archive depth up to 40,000 records
Autonomous power supply 7.4 V
Inter-verification interval of 6 years
Parallel operation of optical, RS-485 and RS-232 interfaces
Possibility of retrofitting a 3G/GPRS modem
Compatibility with various telemetry systems
User-friendly software interface
Affordable price

Ultramag PRO V

admin — Tue, 25 Nov 2025 11:47:53 +0000

Ultramag PRO V

Ultrasonic single-beam systems G6…G25 systems for low pressure up to 0.005 MPa

Purpose:

Gas volume metering systems are designed to measure the working volume of natural gas according to GOST 5542, free petroleum gas according to GOST R 8.615, and other gases in low-pressure networks up to 50 kPa, and automatically convert the measured gas volume to standard conditions depending on temperature, pressure constant, and gas compressibility factor.

Application area: commercial and process gas metering at public utilities and industrial facilities, gas distribution points, and boiler houses with pressures up to 50 kPa and flows up to 40 m³/hour. SI register number 93944-24. MPI 6 years. DNRG407 259-722 TU. Example of designation when ordering: Ultramag PRO V-I-1A-TZ-DN25-G6 (1:200; δ var.5; L) SI register number 58524-14 with amendment 23. MPI 4 years. SYAMI 407 221-671 TU. Example of ordering: Ultramag-50-G25-1:200-1-L-V

Main parameters
Why choose this product

Methods for calculating the compressibility factor:
~natural gas according to GOST 30319.2-2015, GOST 30319.3-2015, using the AGA8 equation of state;
~free petroleum gas, nitrogen, air, carbon dioxide, inert gases using GSSSD data.
Total relative error in bringing the working volume of gas to standard conditions:
~option 3
~ ± 3% – in the flow rate range from Qmin. to 0.05 Qmax
~ ± 1.5% – in the flow rate range from 0.05 Qmax. up to Qmax
Relative error:
~temperature measurement channel does not exceed ± 0.1%
~correction coefficient does not exceed ± 0.5%
Operation at pressure from 0 to 0.005 MPa
Ambient temperature measurement range from -40°C to +60°C
Gas temperature measurement range from -40°C to +60°C
Dynamic flow measurement range up to 1:200
Explosion protection marking 1Ex ib IIB T4 Gb X
Degree of protection IP 66

Connection dimensions are similar to those of the G6-G25 diaphragm meters.
Built-in GSM modem included.
Local resistance of pipelines and shut-off valves does not affect the measurement error of the complex.
Straight sections are not required!!! 0DN/0DN.
Resistant to sudden pressure changes in the pipeline.
Resistant to sudden pressure changes in the pipeline.
Increased archive depth of up to 16,000 records.
Autonomous power supply.
6-year verification interval
. Low-frequency output.
Parallel operation of optical, RS-485 and RS-232 interfaces.
Compatibility with various telemetry systems (IUS-Tsifra, Gazset, etc.).
User-friendly software interface.
Affordable price.

Ultramag PRO RT

admin — Tue, 25 Nov 2025 11:39:16 +0000

Ultramag PRO RT

Ultrasonic single-beam complexes G10…G100 DN 50 and 80 mm instead of a rotary counter

Purpose:

ULTRAMAG RT matches the overall length and requirements of DN 50 and 80 mm rotary meters. The system can be installed to replace existing rotary meters or systems. Straight sections are not required. Gas volume measurement systems are designed to measure the working volume of natural gas according to GOST 5542, free petroleum gas according to GOST R 8.615, and other gases in networks with pressures up to 1.2 MPa, and automatically convert the measured gas volume to standard conditions depending on temperature, pressure, and gas compressibility.

Application area: commercial and process gas metering at utilities and industrial facilities, gas distribution points, and boiler houses with pressures up to 1.2 MPa and flow rates up to 100 m³/hour. SI register number 93944-24. MPI 4 years. DNRG407 259-722 TU. Example of designation when ordering: Ultramag PRO RT-M-1A-PTZ-DN50-G65-A1 (1:200; δ var. 1; L) with pressure channel setting to 0.6 MPa)) Number in the register of SI 58524-14 with amendment 23. MPI 4 years. SYAM 407 259-671 TU. Example of entry when ordering: Ultramag-50-G25-1:200-1-1A-L-M-RT (with pressure channel setting to 0.6 MPa)

Main parameters
Why choose this product

Methods for calculating the compressibility factor:
~natural gas according to GOST 30319.2-2015, GOST 30319.3-2015, using the AGA8 equation of state;
~free petroleum gas, nitrogen, air, carbon dioxide, inert gases using GSSSD data
Total relative error in bringing the working volume of gas to standard conditions:
~option 1
~ ± 2% – in the flow rate range from Qmin. to 0.05 Qmax
~ ± 1% – in the flow rate range from 0.05 Qmax. to Qmax
~option 2
~ ± 2.3% – in the flow rate range from Qmin. to 0.05 Qmax
~ ± 1.3% – in the flow rate range from 0.05 Qmax. to Qmax
~option 3
~ ± 1.5% – in the flow rate range from Qmin. up to 0.05 Qmax.
~ ± 1% – in the flow range from 0.05 Qmax. to Qmax
Relative error:
~ pressure measurement channel does not exceed ± 0.4% (± 0.25% on request)
~ temperature measurement channel does not exceed ± 0.1%
~ correction factor does not exceed ± 0.5% (± 0.3% on request)
Operation at pressure from 0 to 1.6 MPa
Ambient temperature measurement range from -40 ° C to + 60 ° C
Gas temperature measurement range from -40 ° C to + 60 ° C
Dynamic flow measurement range up to 1:200
Explosion protection marking 1Ex ib IIB T4 Gb X
Degree of protection IP 66

Installation instead of rotary meters and complexes without welding
Local resistance of pipelines and shut-off valves does not affect the measurement error of the complex
Straight sections are not required!!! 0DN/0DN
Resistant to sudden pressure changes in the pipeline
Calibration of the pressure measurement channel in the range of 1:11
Resistant to sudden pressure changes in the pipeline
Increased archive depth up to 16,000 records
Autonomous power supply
Inter-verification interval of 4 years
Low-frequency output. Interface 4-20 mA on request
Parallel operation of optical, RS-485 and RS-232 interfaces
Compatible with various telemetry systems (IUS-Tsifra, Gazset, etc.)
User-friendly software interface
Affordable price

Ultramag PRO1

admin — Tue, 25 Nov 2025 11:30:34 +0000

Ultramag PRO

Ultrasonic complexes type G10-G400

Purpose:

Gas volume measuring systems are designed to measure the working volume of natural gas according to GOST 5542, free petroleum gas according to GOST R 8.615, other gases and automatically convert the measured gas volume to standard conditions depending on pressure and/or temperature, gas compressibility factor. Scope: commercial and technological gas metering at public utilities and industrial enterprises, gas distribution points and boiler houses.

Number in the SI register 93944-24. MPI 4 years. DNRG 407 221-722 TU. Example of designation when ordering: Ultramag PRO BA-M-1A-PTZ-DN50-G65-A1 (1:400; δ var.1; L) with pressure channel setting to 0.6 MPa)) Number in the SI register 58524-14 with amendment 23. MPI 4 years. SYAMI 407 259-671 TU. Example of order entry: Ultramag-50-G25-1:200-1-1A-L-M (with pressure channel setting to 0.6 MPa) Number in the SI register 82240-21. MPI 2 years. SYAMI 407 259-722 TU. Example of order entry: Ultramag-M-50-G25-1:200-1-1A-L (with pressure channel setting to 0.6 MPa)

Main parameters
Why choose this product

Methods for calculating the compressibility factor:
~natural gas according to GOST 30319.2-2015, GOST 30319.3-2015, using the AGA8 equation of state;
~free petroleum gas, nitrogen, air, carbon dioxide, inert gases using GSSSD data
Total relative error in bringing the working volume of gas to standard conditions:
~option 1
~ ± 2% – in the flow rate range from Qmin. to 0.05 Qmax
~ ± 1% – in the flow rate range from 0.05 Qmax. to Qmax
~option 2
~ ± 2.3% – in the flow rate range from Qmin. to 0.05 Qmax
~ ± 1.3% – in the flow rate range from 0.05 Qmax. to Qmax
~option 3
~ ± 1.5% – in the flow rate range from Qmin. up to 0.05 Qmax.
~ ± 1% – in the flow range from 0.05 Qmax. to Qmax
Relative error:
~pressure measurement channel does not exceed ± 0.4% (± 0.25% on request)
~temperature measurement channel does not exceed ± 0.1%
~correction coefficient does not exceed ± 0.5% (± 0.3% on request)
Operation at pressure from 0 to 1.6 MPa
Ambient temperature measurement range from -40 ° C to + 60 ° C
Gas temperature measurement range from -40 ° C to + 60 ° C
Dynamic flow measurement range up to 1:400
Explosion protection marking 1Ex ib IIB T4 Gb X
Degree of protection IP 66

Horizontal and vertical installation on the pipeline. Deviation from the horizontal and vertical does not affect the metrological characteristics.
Local resistance of pipelines and shut-off valves does not affect the measurement error of the complex in the presence of straight sections of 5DN / 3DN.
For technological metering, meters can be used with straight sections of 2DN / 2DN, subject to the established installation rules, with an error of within ± 5% (without registration of SI).
Calibration of the pressure measurement channel in the range of 1:11.
Resistant to sudden pressure changes in the pipeline.
Increased archive depth of up to 16,000 records.
Autonomous power supply. The inter-
verification interval is 4 years
. Low-frequency output. 4-20 mA interface on request.
Parallel operation of optical, RS-485 and RS-232 interfaces.
Compatibility with various telemetry systems (IUS-Tsifra, Gazset, etc.).
User-friendly software interface .
Affordable price.

Ultramag PRO

admin — Tue, 25 Nov 2025 08:50:42 +0000

Ultramag PRO

Ultrasonic multi-beam systems G65…G4000 DN 50…300 (500) mm

Purpose:

Scope: commercial and technological gas metering at public utilities and industrial enterprises, gas distribution points and boiler houses. Number in the SI register 93944-24. MPI 4 years. DNRG 407 251-722 TU. Example of designation when ordering: Ultramag PRO BT-M-3T-PTZ-DN50-G65-A1 (1:200; δ var.1; L) with the pressure channel setting to 0.6 MPa)) Number in the SI register 82240-21. MPI 2 years. SYaMI 407 229-722 TU. Example of order entry: Ultramag-M-4T-1-150-G650-1:200-1A-L (with pressure channel setting to 0.6 MPa)

Main parameters
Why choose this product

Methods for calculating the compressibility factor:
~natural gas according to GOST 30319.2-2015, GOST 30319.3-2015, using the AGA8 equation of state;
~free petroleum gas, nitrogen, air, carbon dioxide, inert gases using GSSSD data
Total relative error in bringing the working volume of gas to standard conditions:
~option 1
~ ± 2% – in the flow rate range from Qmin. to 0.05 Qmax
~ ± 1% – in the flow rate range from 0.05 Qmax. to Qmax
~option 2
~ ± 2.3% – in the flow rate range from Qmin. to 0.05 Qmax
~ ± 1.3% – in the flow rate range from 0.05 Qmax. to Qmax
Option 3
~ ± 1.5% – in the flow rate range from Qmin. up to 0.05 Qmax.
~ ± 1% – in the flow range from 0.05 Qmax. to Qmax
Relative error:
~ pressure measurement channel does not exceed ± 0.4% (± 0.25% on request)
~ temperature measurement channel does not exceed ± 0.1%
~ correction factor does not exceed ± 0.5% (± 0.3% on request)
Operation at pressure from 0 to 1.6 MPa
Ambient temperature measurement range from -40 ° C to + 60 ° C
Gas temperature measurement range from -40 ° C to + 60 ° C
Dynamic flow measurement range up to 1:400
Explosion protection marking 1Ex ib IIB T4 Gb X
Degree of protection IP 66

Horizontal and vertical installation on the pipeline. Deviation from the horizontal and vertical does not affect the metrological characteristics.
Local resistance of pipelines and shut-off valves does not affect the measurement error of the complex in the presence of straight sections. 5DN/3DN.
Calibration of the pressure measurement channel in the range of 1:11.
Resistant to sudden pressure changes in the pipeline.
Increased archive depth up to 16,000 records.
Autonomous power supply.
The inter-verification interval is 4 years
. Low-frequency output. 4-20 mA interface on request.
Parallel operation of optical, RS-485 and RS-232 interfaces.
Compatibility with various telemetry systems (IUS-Tsifra, Gazset, etc.).
User-friendly software interface.
Affordable price.
